ENGINE DISASSEMBLY

5-14

ENG

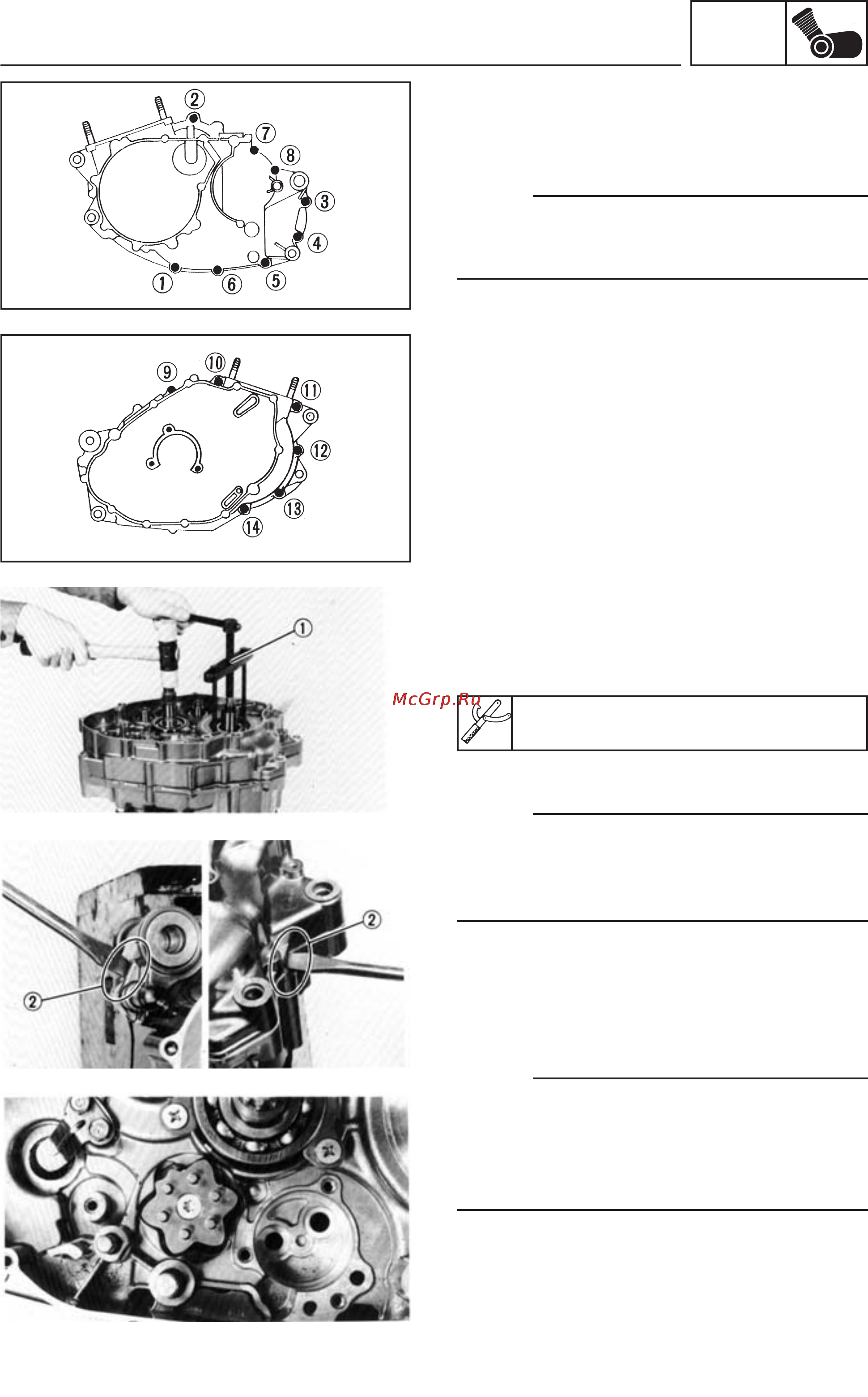

CRANKCASE (R)

1. Remove:

•

Crankcase (R)

NOTE:

•

Loosen nuts starting from the one with the

highest number.

•

Loosen all by 1/4 turn and then remove.

Removal procedure:

•

Set the crankcase separating tool (1) in place.

▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼

Crankcase separating tool:

P/N. 90890-01135

NOTE:

When tightening the support bolts of the separat-

ing tool, be sure to keep the tool body parallel to

the engine crankcase. If necessary, a screw may

be slightly loosened to put the tool body on level.

•

Applying pressure, strike the front engine

assembly flange, the drive shafts and the gear

cam plate with a rubber hammer. Then

remove the crankcase.

NOTE:

•

If the crankcase fails come out, lever at points

(2), being careful not to damage the

crankcase.

•

Turn the gear cam plate as shown in the fig-

ure to prevent it interfering with the crankcase.
