Yamaha TT600RE (2004) [94/382] Insp adj
![Yamaha TT600RE (2004) [94/382] Insp adj](/views2/1121411/page94/bg5e.png)

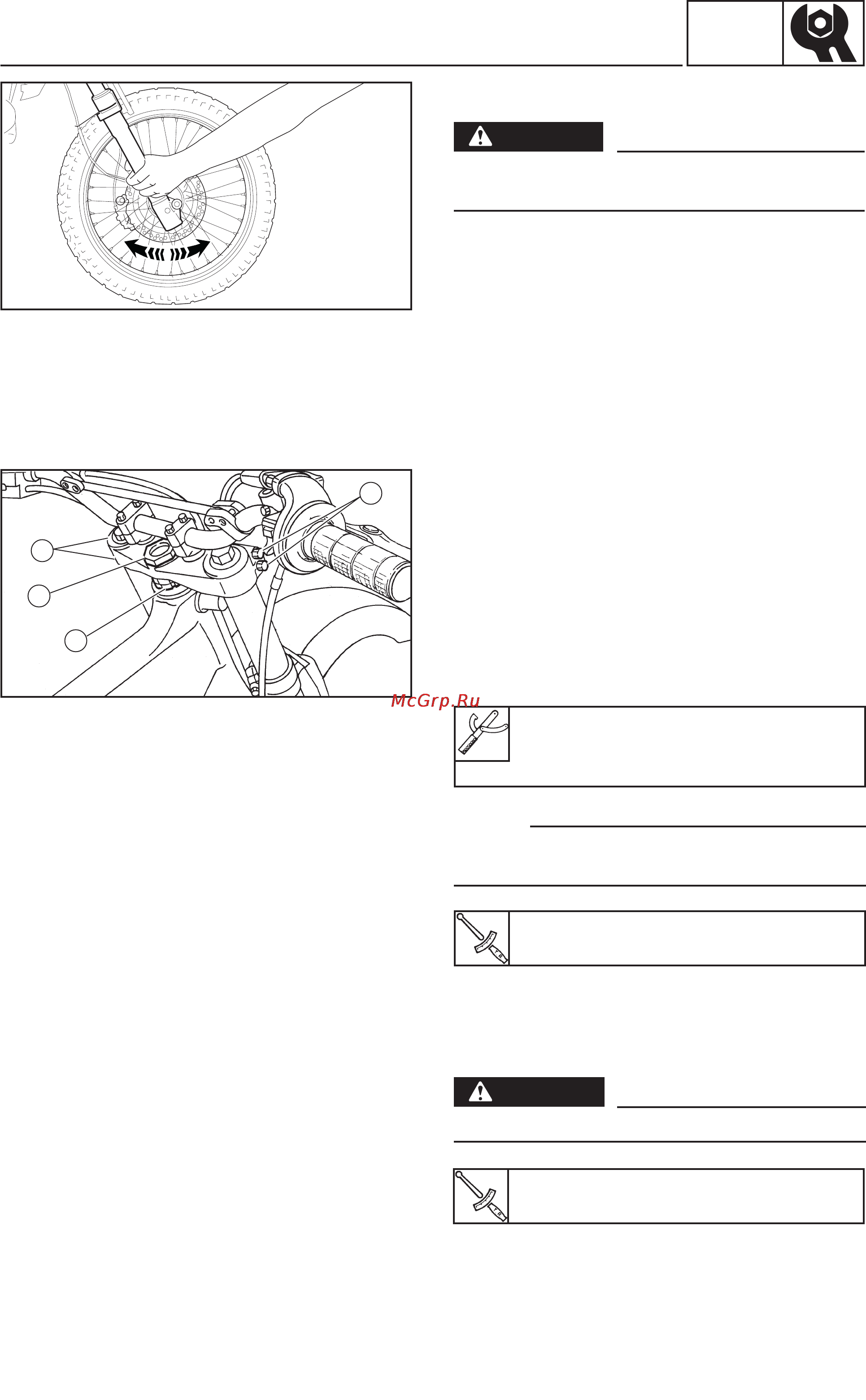

STEERING INSPECTION
3-40
INSP
ADJ
STEERING INSPECTION
WARNING
Hold the motorcycle firmly in place to prevent
it falling over.
1. Raise the front wheel and place a support
under the engine.
2. Check:
•
Steering bearings
Grasp the bottoms of the front fork legs
and rock back and forward.
Free play ➔ Adjust steering bearing.
3. Adjust:
•
Steering bearing
Adjustment:
•
Remove the fuel tank.
See section “SEAT, FUEL TANK AND REAR
COWLING”.
•
Loosen steering axle nut (1) and fork upper
bracket screws (2).
•
Tighten the ring nut (3) with the special
wrench.
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
1
3
2
2
Ring nut (final tightening):
4 Nm (0.4 mkg)
Ring nut (initial tightening):
38 Nm (3.8 mkg)
Ringnut wrench:
P/N. 90890-01268
P/N. 90890-01348
NOTE:
The torque wrench and the ringnut wrench should
form a right angle.
WARNING
Do not tighten the ring nut excessively.
•
Loosen the ring nut one turn.
•
Retighten the ring nut using the special
wrench.
