Yamaha TT600RE (2004) [269/382] Engine assembly and setting
![Yamaha TT600RE (2004) [269/382] Engine assembly and setting](/views2/1121411/page269/bg10d.png)
ENG
ENGINE ASSEMBLY AND SETTING
5-65

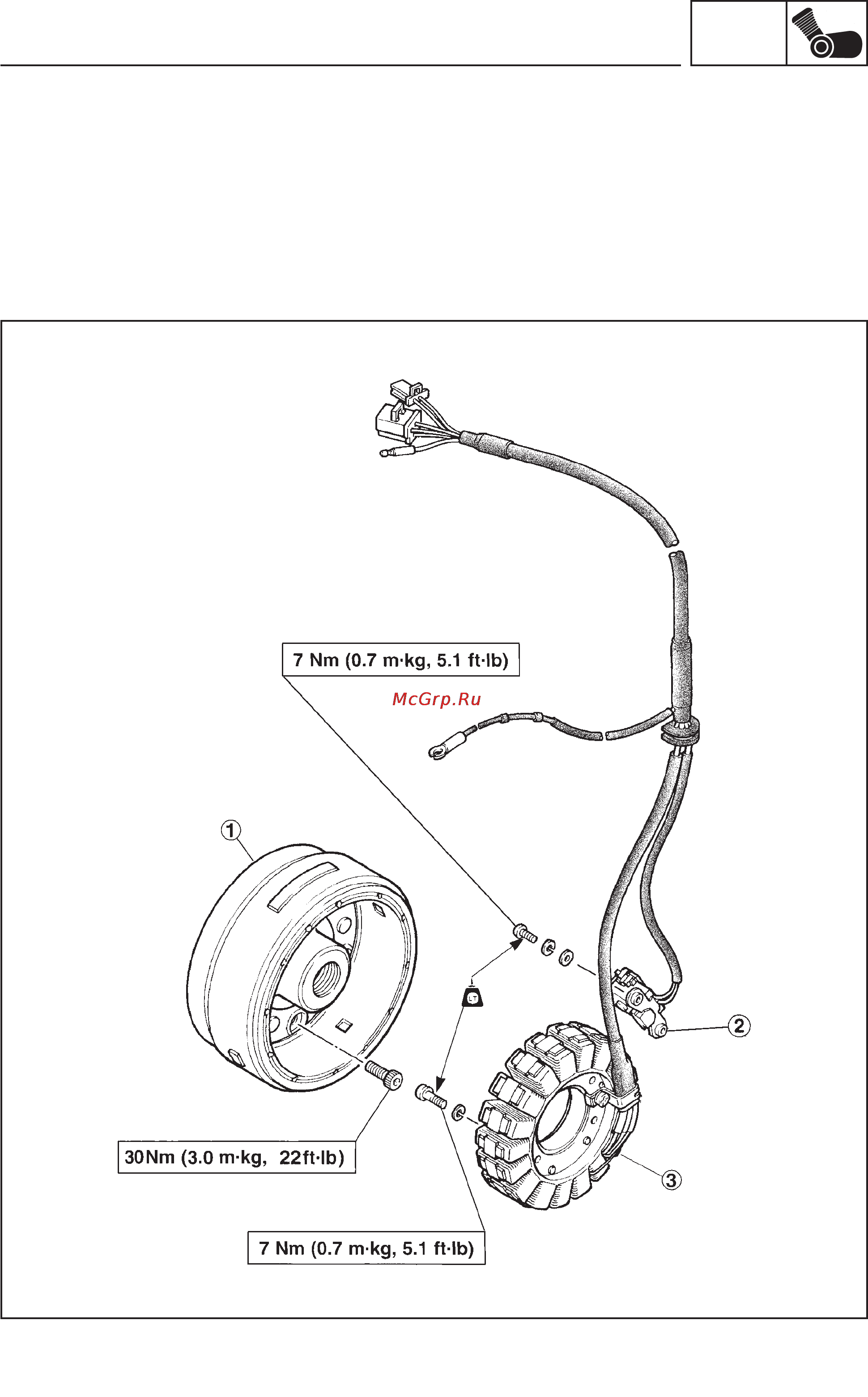

AC GENERATOR
(1) Rotor
(2) Pick-up coil
(3) Stator winding
PICKUP COIL RESISTANCE:
230 Ω ± 20% at 20°C (68°F)
(Blue/Yellow - Green/White)
CHARGING COIL RESISTANCE:
0.65 Ω ± 20% at 20°C (68°F)
(White - White)
