CHAS

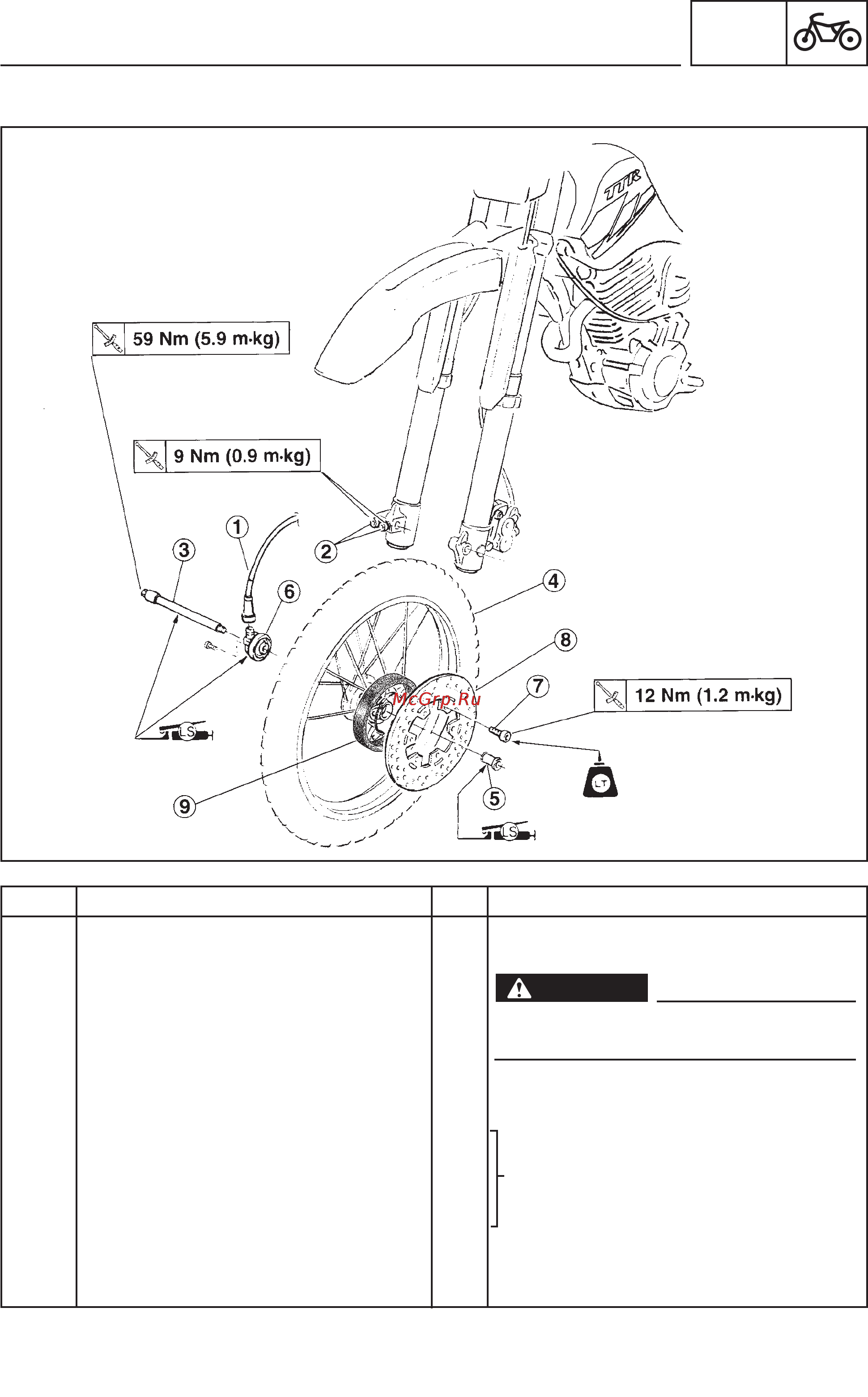

FRONT WHEEL AND BRAKE DISC
4-1
CHASSIS - FRONT WHEEL AND BRAKE DISC
Order Job name/Part name Q.ty Remarks
Front wheel and brake disc Remove the parts in order.
removal
WARNING
Securely support the motorcycle so there
is no danger of it falling over.
1 Speedometer cable 1 Disconnect.
2 Pinch bolt 2 Loosen.
3 Wheel axle 1
4 Front wheel assembly 1
Refer to “FRONT WHEEL INSTALLATION”
5 Collar 1
section.
6 Gear unit assembly 1
7 Brake disc screw 6
8 Brake disc 1
9 Ring 1 Reverse the removal procedure for instal-
lation.
