CARBURETOR INSPECTION
6-10
CARB

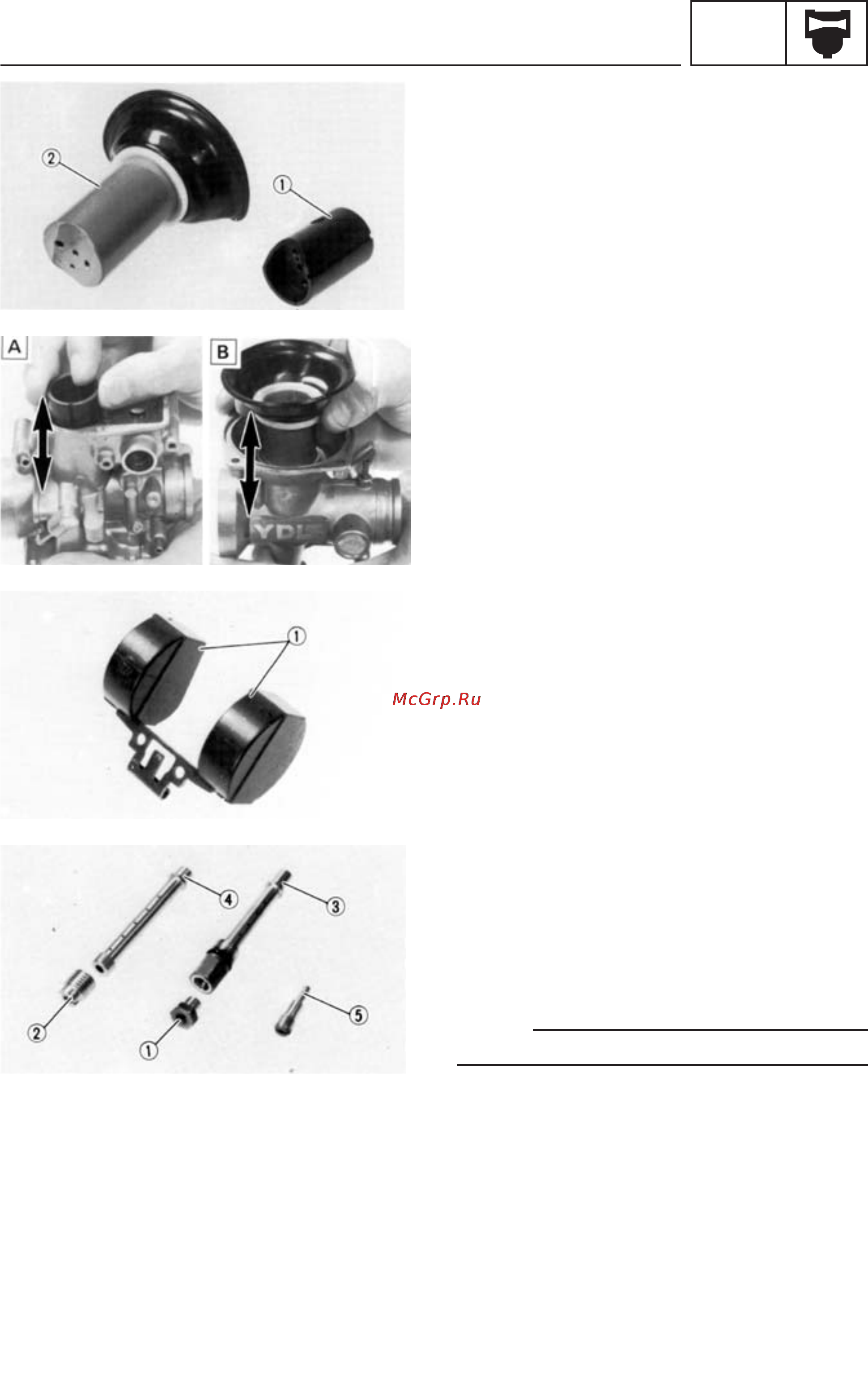

6. Inspect:
•
Throttle valve (1) (primary)
•
Diaphragm (2) (secondary)
ear/Damaged ➔ Replace.
7. Check:
•
Free movement
Hampered ➔ Replace.
Fit the throttle valve and diaphragm into
the carburetor body and check that move-
ment is free.
[A] Primary carburetor
[B] Secondary carburetor
8. Inspect:
•
Float (1)
Damaged ➔ Replace.
9. Inspect:
•
Main jet (1) (primary)
•
Main jet (2) (secondary)
•
Main nozzle (3) (primary)
•
Main nozzle (4) (secondary)
•
Pilot jet (5)
NOTE:
Clean jets with compressed air.
