Yamaha TT600RE (2004) [298/382] Carburetor assembly
![Yamaha TT600RE (2004) [298/382] Carburetor assembly](/views2/1121411/page298/bg12a.png)

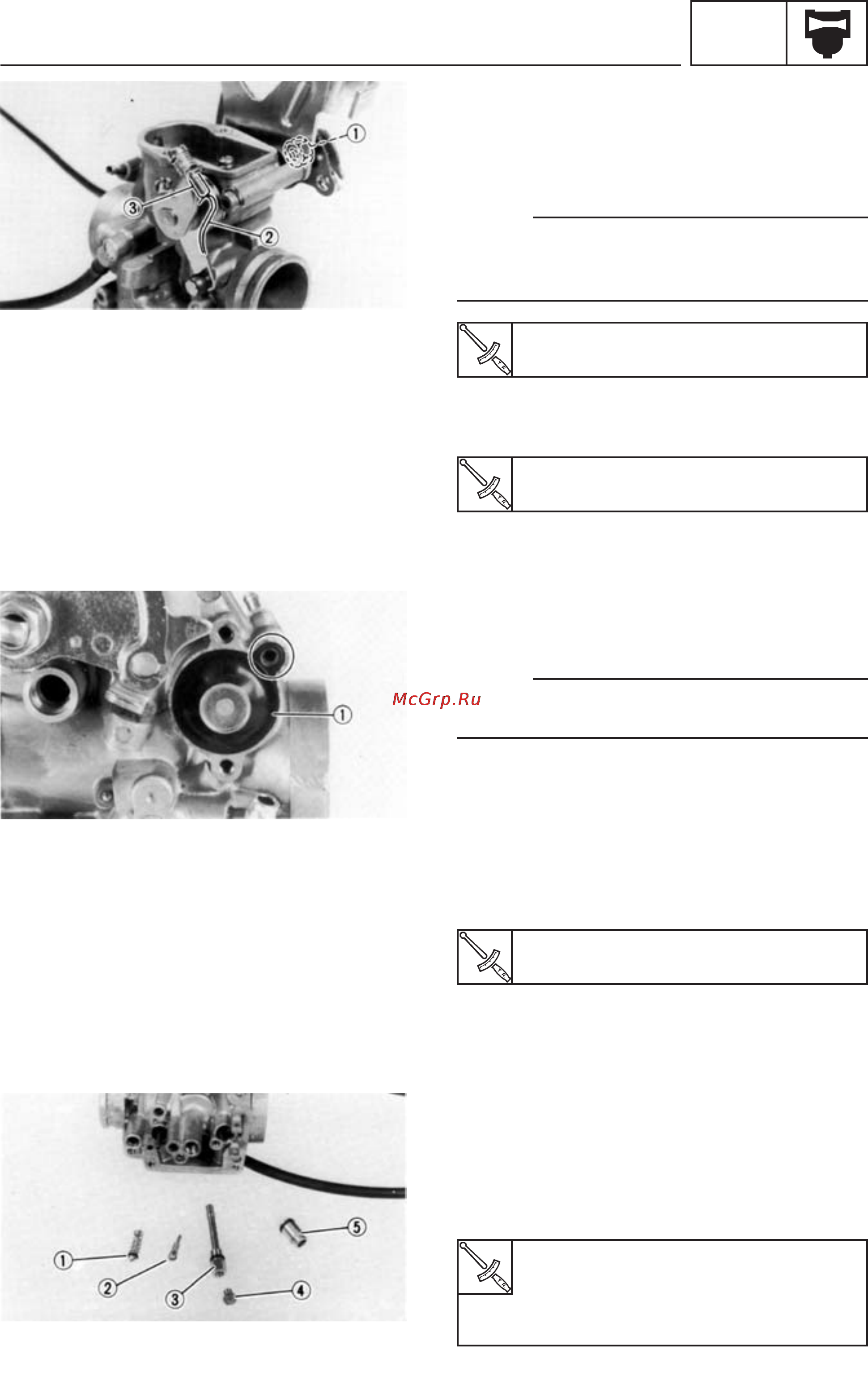

CARB
CARBURETOR ASSEMBLY
6-13
5. Install:
•
Cable holder
•
Collar
•
Throttle lever
NOTE:
Check that the throttle shaft lever (2) and the
adjuster bolt (3) are aligned when tightening the
throttle nut (1).
Screw (cable holder):
3 Nm (0.3 mkg)
Screw (top cover):
2 Nm (0.2 mkg)
Starter piston:
6 Nm (0.6 mkg)
Main nozzle 1:
2 Nm (0.2 mkg)
Screw (valve seat):
2 Nm (0.2 mkg)
6. Install:
•
Top cover
7. Install:
•
Diaphragm (1) (enrichment)
NOTE:
Make the diaphragm tab coincide with the gravity
enricher notch.
9. Install:
•
Pilot screw set (1)
•
Pilot jet (2)
•
Main nozzle 1 (3)
•
Main jet (primary) (4)
•
Valve seat (5)
8. Install:
•
Starter set
•
Stop screw
