Yamaha TT600RE (2004) [259/382] Engine assembly and setting
![Yamaha TT600RE (2004) [259/382] Engine assembly and setting](/views2/1121411/page259/bg103.png)
ENG
ENGINE ASSEMBLY AND SETTING
5-55

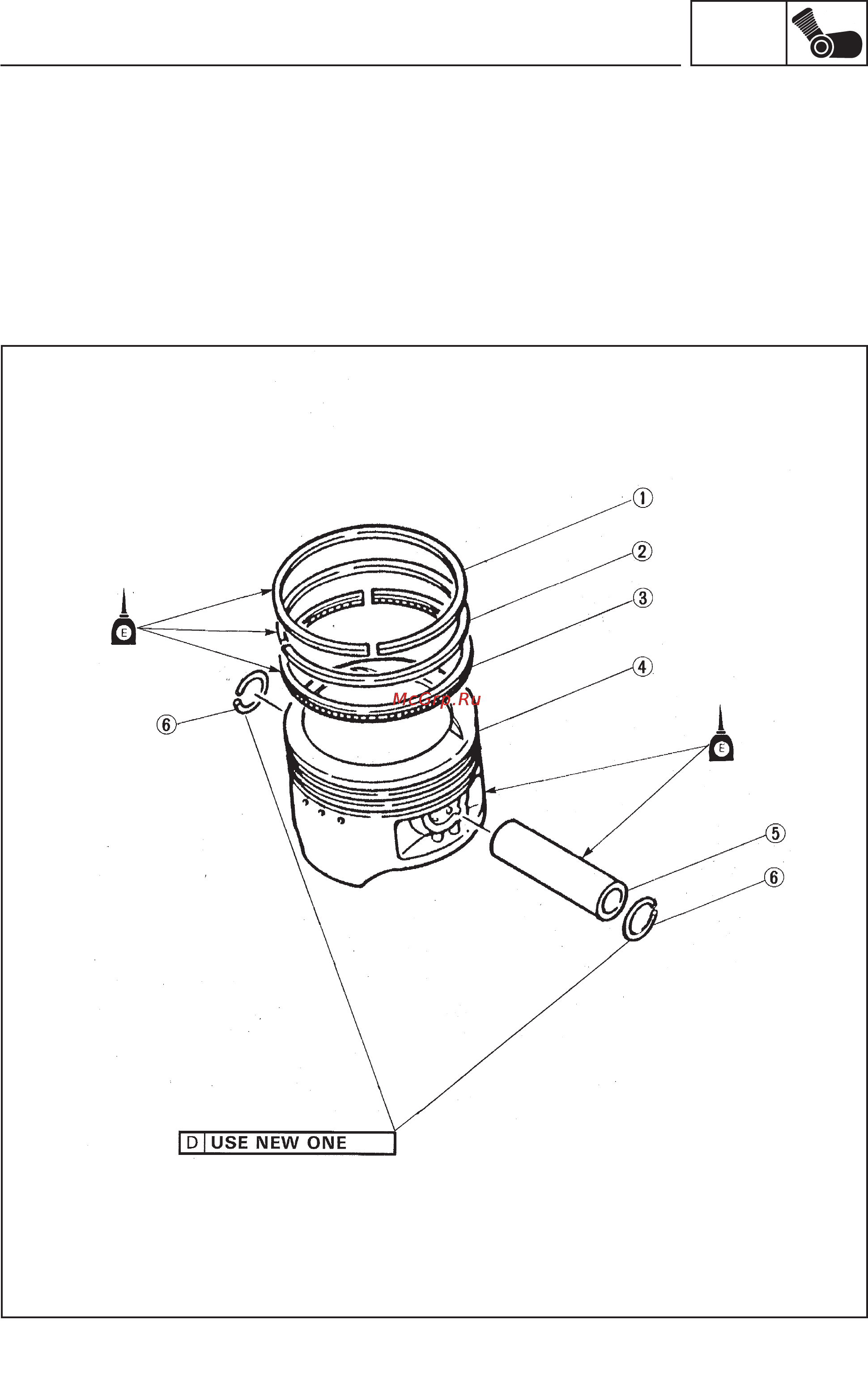

PISTON AND RINGS
(1) Ring (upper)
(2) Ring (lower)
(3) Scraper
(4) Piston
(5) Piston pin
(6) Circlip
PISTON SIZE:
94.915 ~ 94.965 mm
PISTON RING END GAP:
TOP: 0.30 ~ 0.45 mm
2ND: 0.30 ~ 0.45 mm
OIL: 0.20 ~ 0.70 mm
PISTON RING SIDE CLEARANCE:
TOP: 0.04 ~ 0.08 mm
2ND: 0.03 ~ 0.07 mm
