CHAS
FRONT FORK
4-47

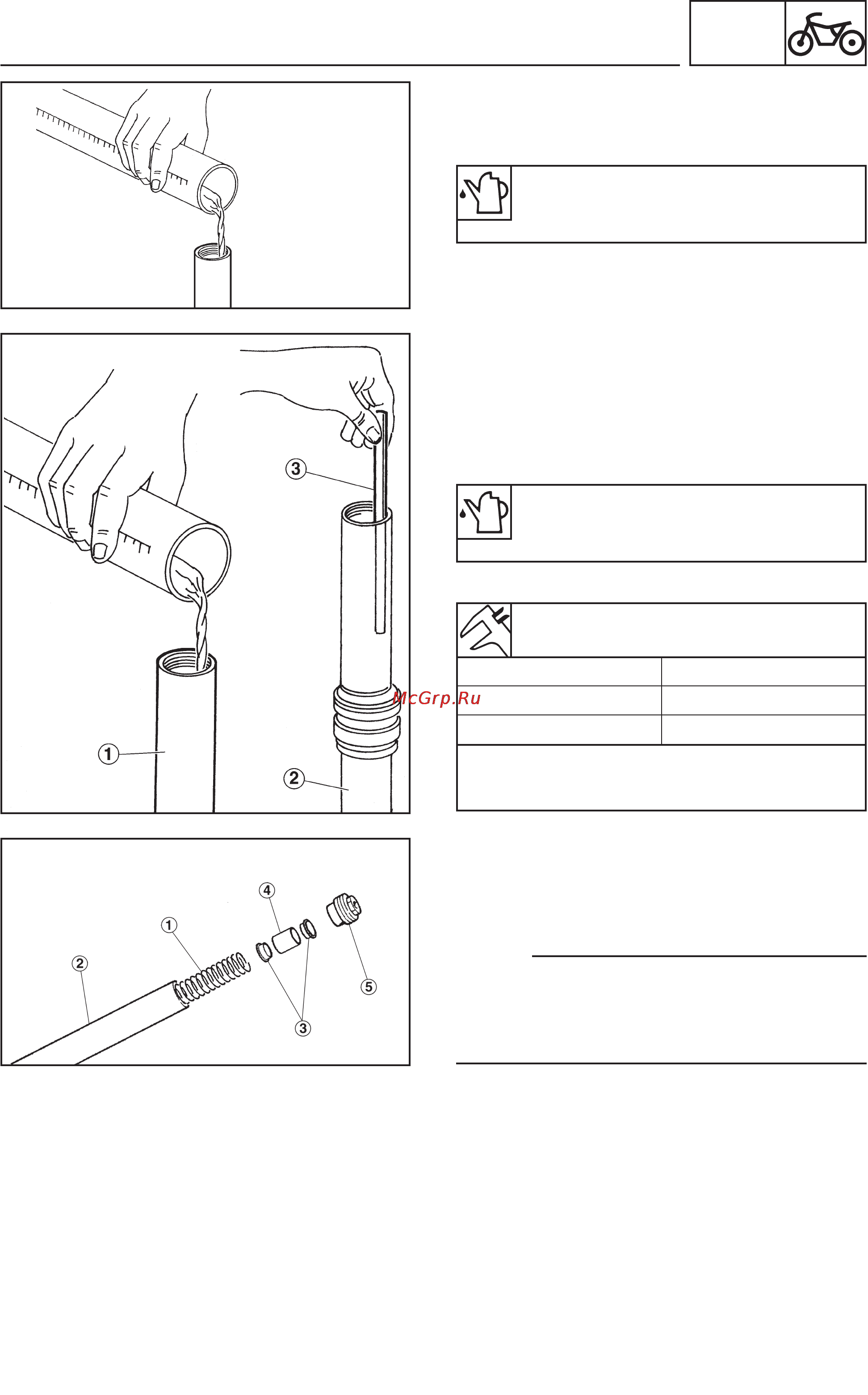

7. Fill:
•
Part of the new oil (with the fork leg in a
vertical position)
Recommended oil:
Liqui Moly Racing suspension
oil SAE 7,5
Recommended oil:
Liqui Moly Racing suspension
oil SAE 7,5
8. Using the inner tube pump back and forth until
a regular drag is felt on the return stroke.
9. With the fork leg in a perfectly upright position,
insert the inner tube (1) in the outer tube (2)
completely to the end of the stroke.
10. Finish topping up the oil bringing it to the pre-
scribed level from the upper edge measured
with a graduated dipstick or ruler (3).
Oil level:
Standard 180 mm
Minimum 190 mm
Maximum 170 mm
From top of inner tube with inner tube fully
inserted without spring.
12. Screw:
•
Cap bolts (5)
(on inner tube, without tighten)
13. Install:
•
Fork leg
11. Insert:
•
Spring (1) (into the inner tube (2))
•
Seat (3)
•
Spacer (4)
NOTE:
Usually there is no particular sense in which the
spring is mounted and so it may be inserted from
either end. If there is a hem, however mount it
keeping the hemmed parts towards the top.
