DFL-900/1500 User Manual Chapter 10
Firewall
93
Prev. Page
If there are more than one rule pages, you can press Prev. Page to back to the previous page.
Next Page If there are more than one action rules, you can press Next Page to go to the next page.
Move Page __ Move to the indicated page.
Insert Insert a new rule.
Edit Edit the properties of the existent rule.
Delete Delete the indicated rule.
Move Before __ Move the selected rule to the front of the indicated rule number.
Table 10-2 Add a firewall rule

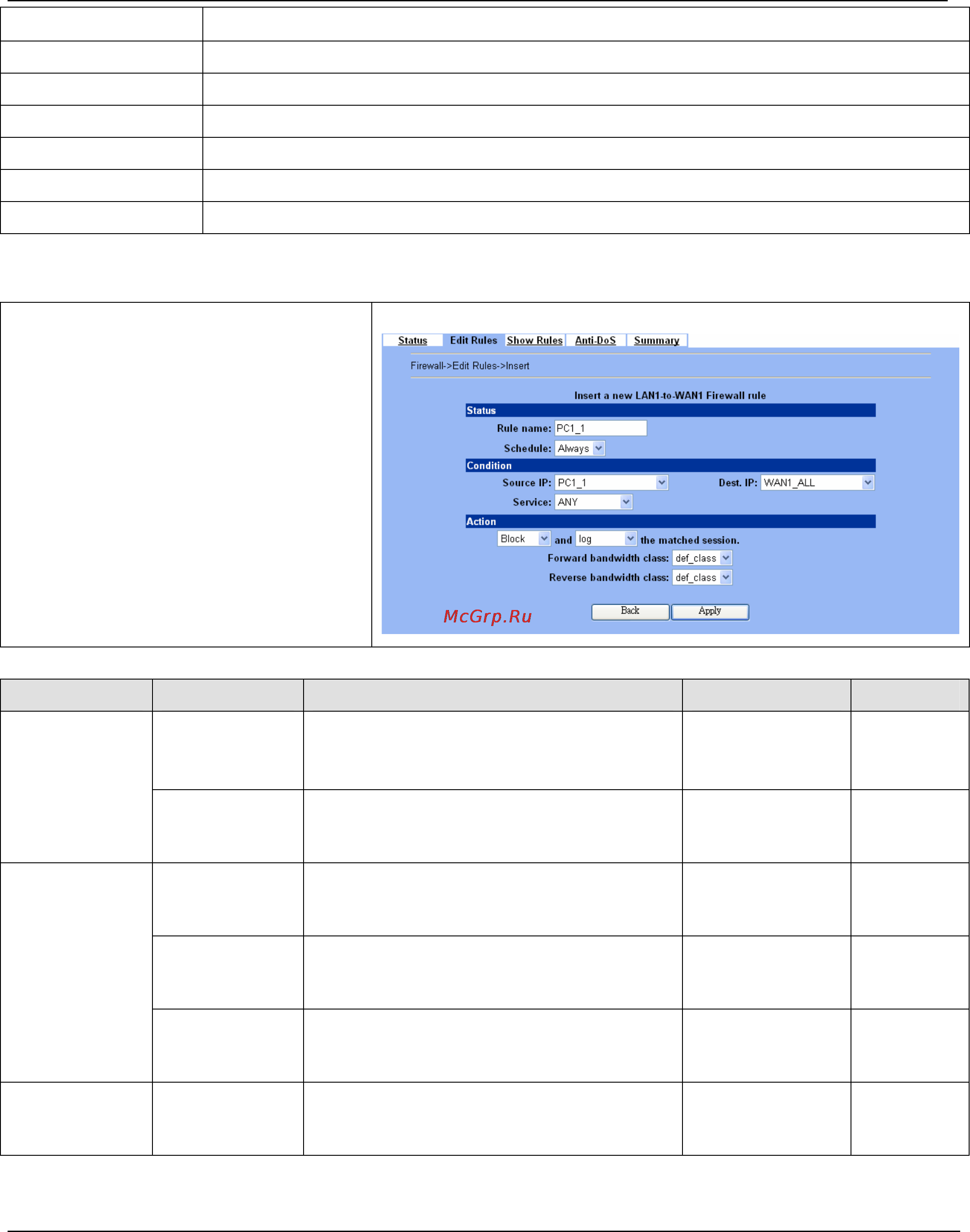

Step 3. Customize the rule
Before adding a new firewall, you have to set the
Books in the Basic Setup > Books >
Addresses/Services/Schedules first. After
configuring the settings, you can then add a new
firewall rule.
Enter the rule name as PC1_1, and select
Schedule. Select Source IP as PC1_1
(192.168.40.1 / 255.255.255.255), and
select Dest. IP as WAN1_ALL. Select Service
as ANY (TCP, UDP and ICMP). Select Block and
Log to the matched session. And choose the
Forward bandwidth class or Reverse
bandwidth class if any. Click the Apply to
apply the changes.
ADVANCED SETTINGS > Firewall > Edit Rules > Insert
FIELD DESCRIPTION Range / Format EXAMPLE
Rule name
The name of the Firewall rule.
Note that rule name should begin with alphabet,
followed by alphabet/digits/dashes.
text string PC1_1
Status
Schedule When does this firewall rule take effect?
All the defined
schedule objects and
groups
Always
Source IP
Compared with the incoming packets, whether
Source IP is matched.
All the defined
address objects and
groups
PC1_1
Dest IP
Compared with the incoming packets, whether
Dest IP is matched.
All the defined
address objects and
groups
WAN1_ALL
Condition
Service
Verified the service of incoming packet is
belonging to each TCPUDPICMP.
All the defined
service objects and
groups
ANY
Action
Forward / Block
the matched
session
If packet is matched the rule condition, Forward
or Block this matched packet?
Forward / Block Block
