DFL-900/1500 User Manual Chapter 6
Authentication
59
In OpenLDAP:
entry1: uid=mary,ou=people,dc= yourcompay,dc=com
entry2: uid=jack,ou=people,dc= yourcompay,dc=com
Base DN: ou=people,dc=yourcompany,dc=com
UID : uid
In Windows AD (special case):
entry1: cn=mary,dc= yourcompay,dc=com
entry2: cn=jack ,dc= yourcompay,dc=com
Base DN: cn=Users,dc=yourcompany,dc=com
UID: cn
UID
UID is the field name and used to look up entries on LDAP server. Please
refer to the above description.
uid
Table 6-4 LDAP Settings

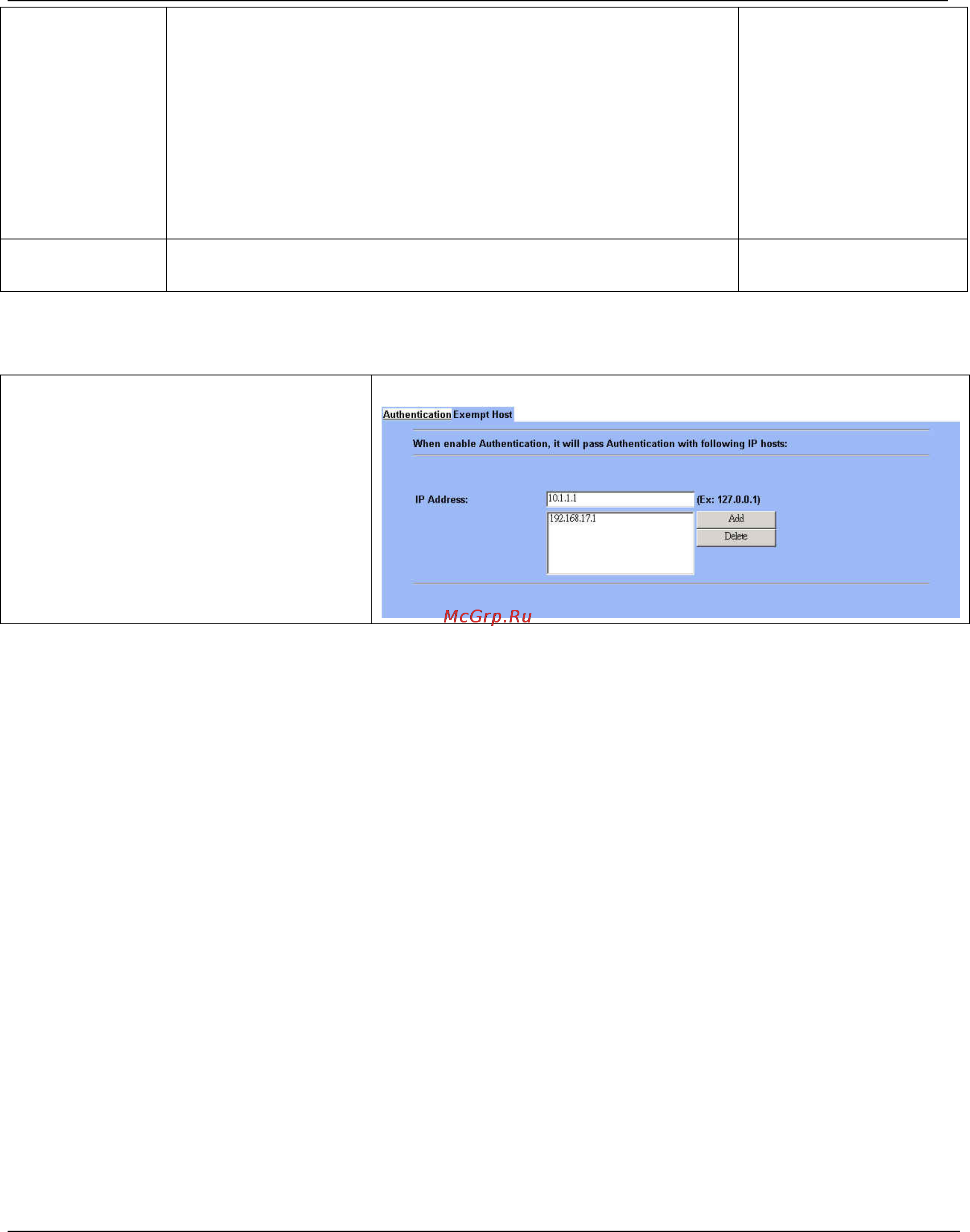

6.3.6 Exempt Host
Step 1. Configuring the Exempt Host
Enter the exempt host IP Address, and click
Add to add an IP address. When enabling
authentication, the chosen PC IP address will
pass the authentication.
Basic Setup > Authentication > Exempt Host
