Part III
NAT & Routing
D-Link 62

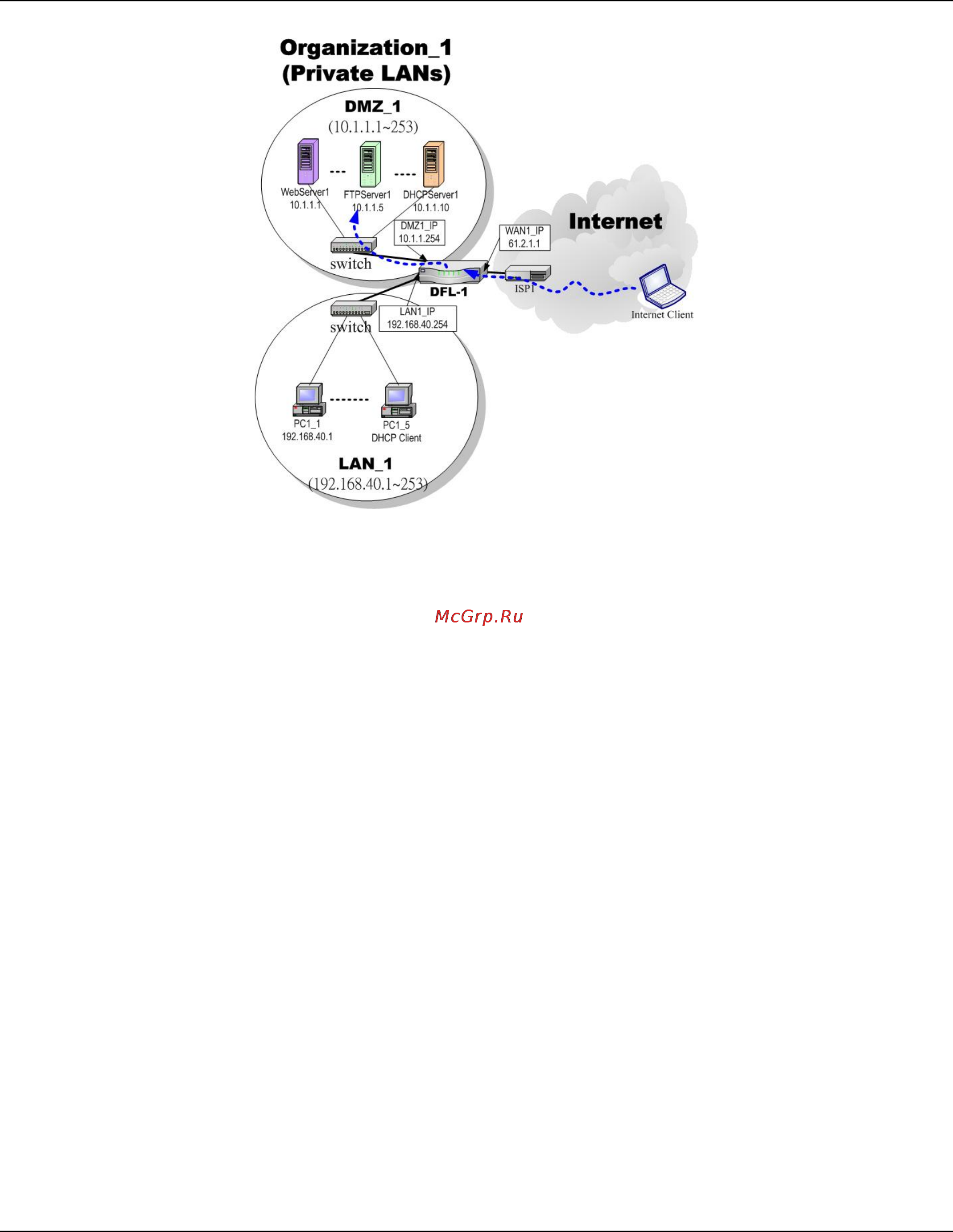

Figure 7-2 Internet clients can access the server behind the DFL-1500
7.2 Objectives
1. Let PC1_1~PC1_5 connect to the Internet.
2. As the
Figure 7-2 illustrated, the clients will connect to the DFL-1500. Then DFL-1500 will forward the packet to the real
server. So FTPServer1 (10.1.1.5) will be accessed by other Internet users.
7.3 Methods
1. Assign private IP addresses to the PC1_1~PC1_5. Setup NAT at DFL-1500 to map those assigned private hosts under
LAN1 to the public IP address WAN_IP at the WAN1 side.
2. Assign a private IP address to the FTPServer1. Setup Virtual Server at DFL-1500 to redirect “any connections towards
some port of WAN1” to the port 21 at the FTPServer1.
