D-Link DFL-1500 [36/271] The design principle
![D-Link DFL-1500 [36/271] The design principle](/views2/1018635/page36/bg24.png)
Part I
Overview
D-Link 28
2.3 The design principle
2.3.1 Web GUI design principle

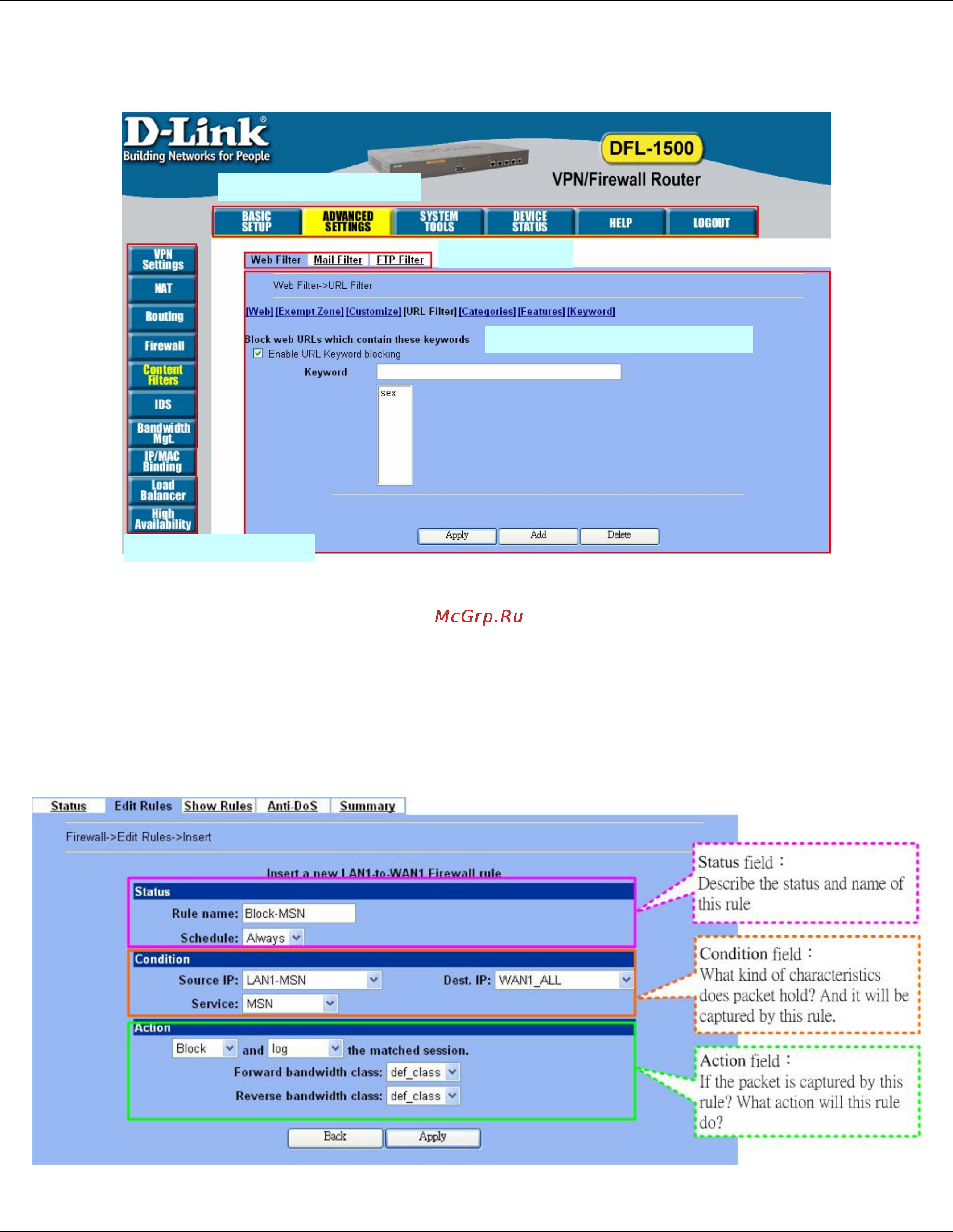

Figure 2-2 You can select the functional area by the sequence in Web GUI
If we want to configure DFL-1500, we can follow the sequence as the
Figure 2-2 illustrated.
Step1. Select Main-function
Step2. Select Sub-function
Step3. Select Tag
Step4. Configure the real parameters
2.3.2 Rule principle
Figure 2-3 The rule configuration is divided into three parts
Step 1. Select Main-function
Step 2. Select Sub-function
Step 3. Select Tag
Step 4. Configure the real parameters
