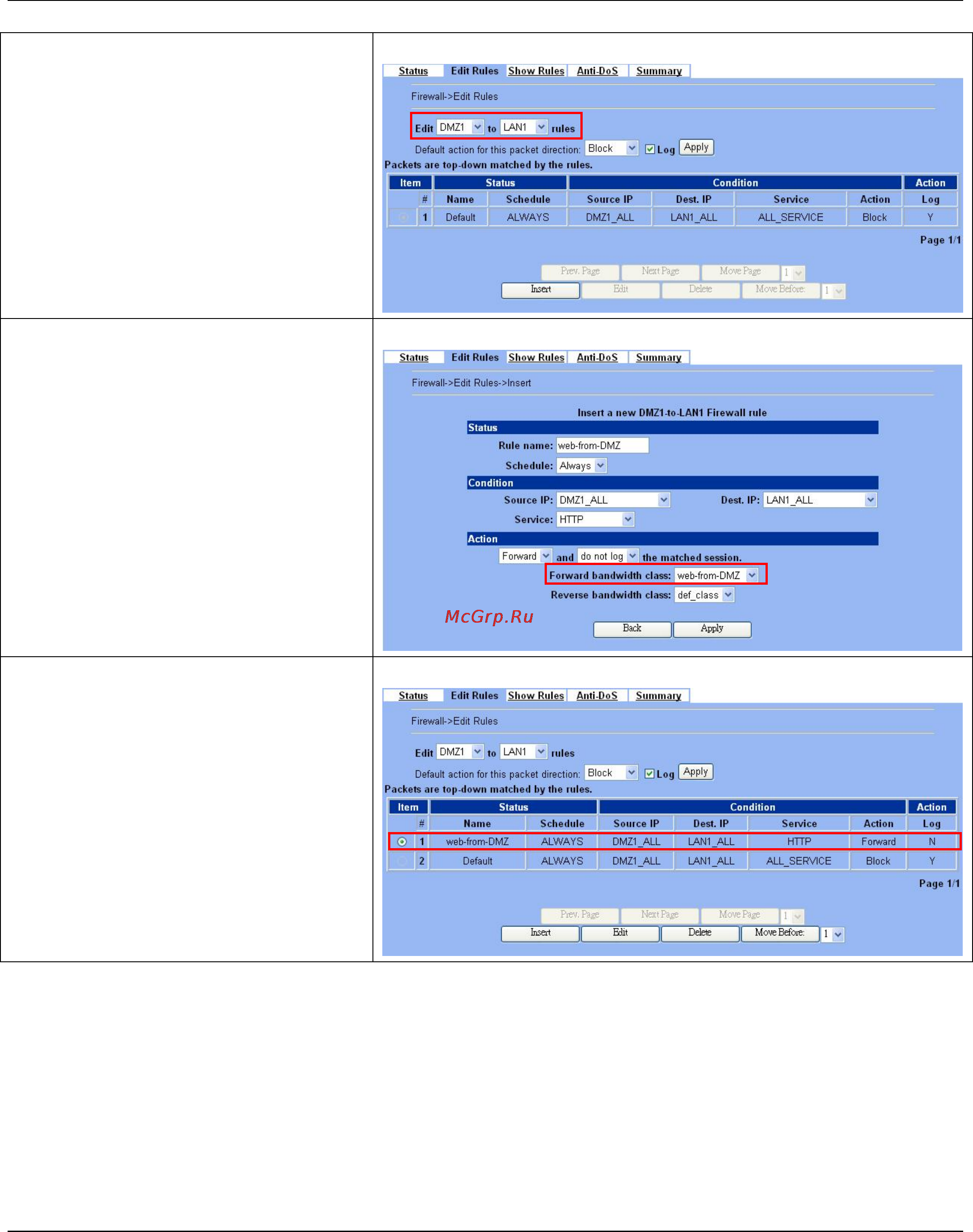

Step 8. Add DMZ to LAN1 rule

Here we will add another rule (web from DMZ).

Select DMZ1 to LAN1 direction.

ADVANCED SETTINGS > Firewall > Edit Rules

Step 9. Customize the rule

Setup the web-from-DMZ rule. Here we select

DMZ1_ALL / LAN1_ALL in the Source IP /

Dest. IP field. It means that if the packets come

from DMZ and targeted LAN1 region, we do not

need to care about its source / dest IP. If the

packets request for web traffic (source port HTTP

80), it will be put into the web-from-DMZ queue

by DFL-1500 bandwidth management feature.

Note: In the Action region, the web-from-DMZ

class was edited in the previous

Step 4 before.

ADVANCED SETTINGS > Firewall > Edit Rules > Insert

Step 10. View the results

We can see the result of our settings at the

DMZ-to-LAN rule direction.

ADVANCED SETTINGS > Firewall > Edit Rules
