Part V
Virtual Private Network
D-Link 178

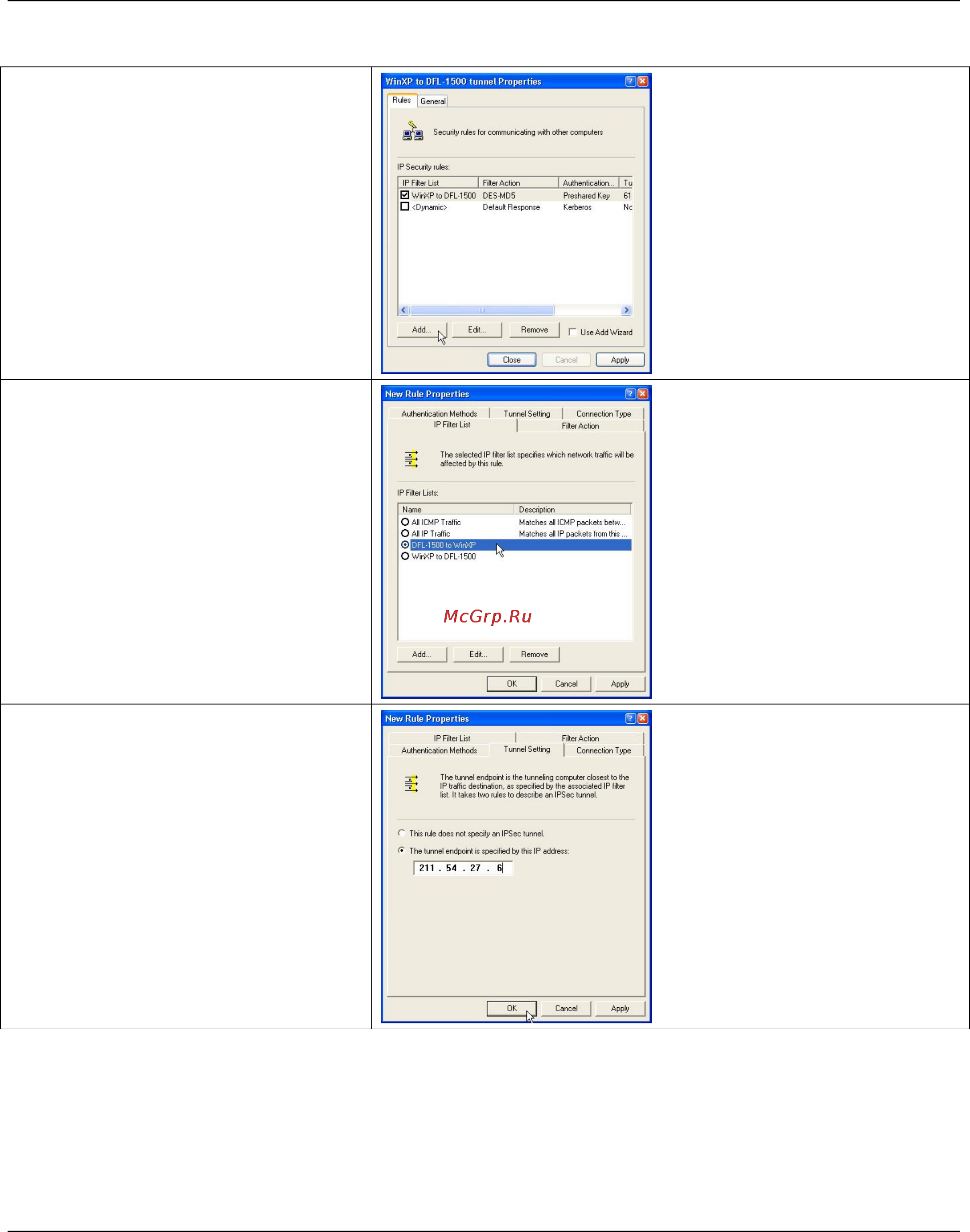

20.4.7 Configure a rule for DFL-1500 to WinXP client
Step 1. Add a new IP filter rule
Now we are going to configure the rule of
DFL-1500 to WinXP client. Click Add to add a
new IP filter rule.
Step 2. Select IP filter list
Click the IP Filter List tab. Select the filter
list you created above from the IP Filter List
(DFL-1500 to WinXP).
Step 3. Tunnel Settings
Click Tunnel Setting tab, and then enter the
remote endpoint. For this filter list, the remote
IPSec endpoint is WinXP (211.54.27.6).
