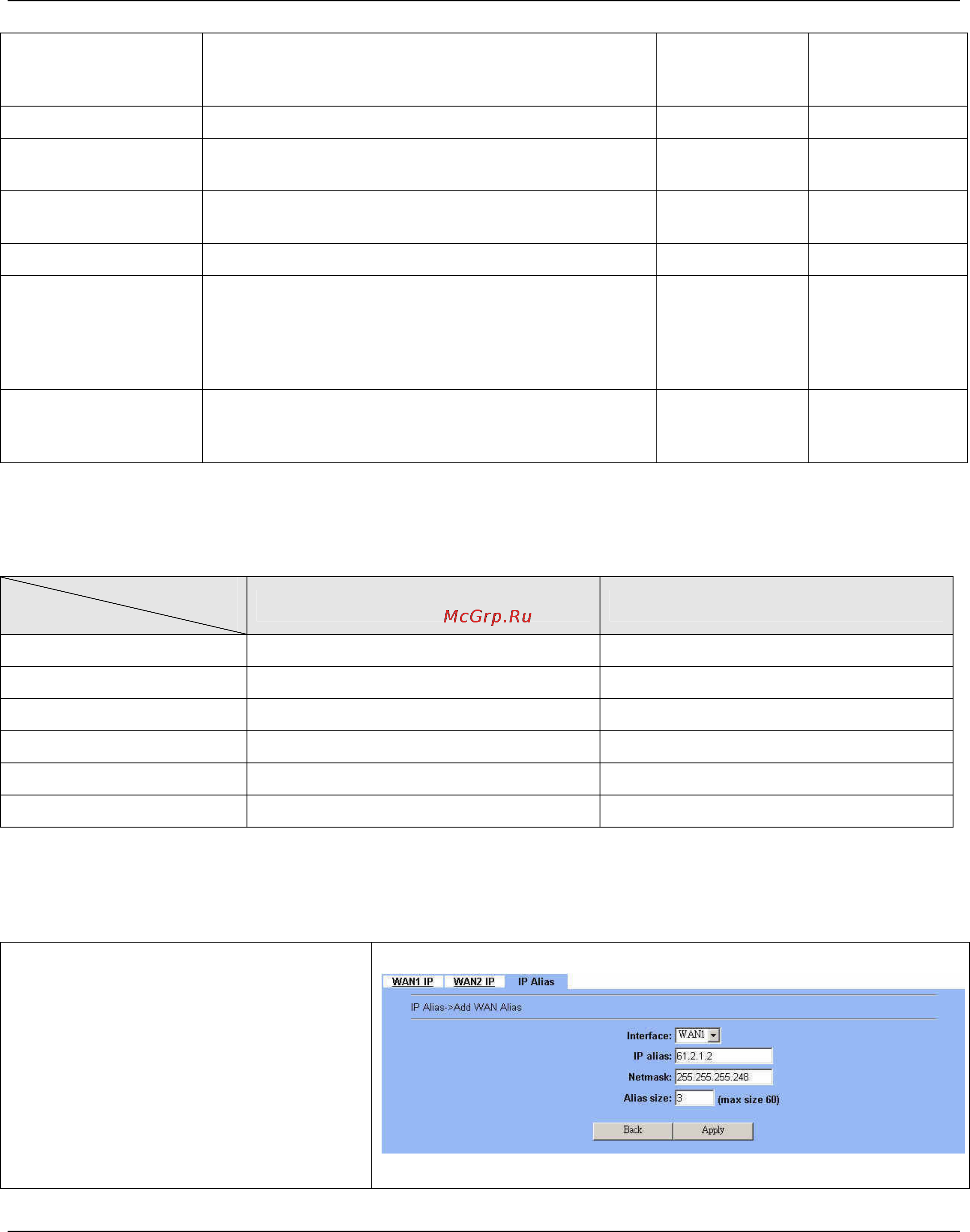

![D-Link DFL-1500 [46/271] Setup wan1 ip alias](/views2/1018635/page46/bg2e.png)
Part II
Basic Configuration
D-Link 38
IP Pool Starting Address Specify the starting address of the DHCP IP address.
IPv4 format in the
LAN1 address
range
192.168.40.100
Pool Size(max size: 253) Specify the numbers of the DHCP IP address. 1 ~253 20
Primary DNS Server
Specify the Primary DNS Server IP address of the DHCP
information.
IPv4 format 192.168.40.254
Secondary DNS Server
Specify the Secondary DNS Server IP address of the DHCP
information.
IPv4 format 0.0.0.0
Lease time(sec) Specify DHCP information lease time. greater than 0 7200
Routing Protocol
Determine to enable the dynamic routing protocol (RIP), to
receive RIP message, to send out RIP message if the
message is received.
None / RIPv1In /
RIPv1In+out /
RIPv2In /
RIPv2In+out /
OSPF
None
OSPF Area ID Specify OSPF area ID number.
IPv4 format or
digit string (Max
9 bits)
N/A
Table 3-3 Configure LAN network settings
¾ What is the difference between LAN and DMZ area in the DFL-1500?
Area
Feature
LAN DMZ
usage method Placing the client PCs. Placing the server PCs.
firewall rule LAN to DMZ default is forward. DMZ to LAN default is block.
Authentication Have restriction No restriction
Web filter Have restriction No restriction
SMTP/ POP3/FTP filter Have restriction No restriction
IP/MAC binding Have restriction No restriction
Table 3-4 The differences between LAN and DMZ area
3.4.3 Setup WAN1 IP alias
Step 1. Add WAN1 IP alias
Suppose you apply 8 IP addresses from ISP. The
range of the ISP-given IP address is from
61.2.1.0 to 61.2.1.7. Now you would like to add
three WAN1 IP aliases. Select WAN1 in the
Interface field. Enter the IP alias and Netmask
with 61.2.1.2/255.255.255.248. Key in 3 into the
Alias size field. And then click Apply.
Notice：It’s the same way to set IP alias in DMZ or
LAN.
BASIC SETUP > WAN Settings > IP Alias > Add
