Part V
Virtual Private Network
D-Link 122

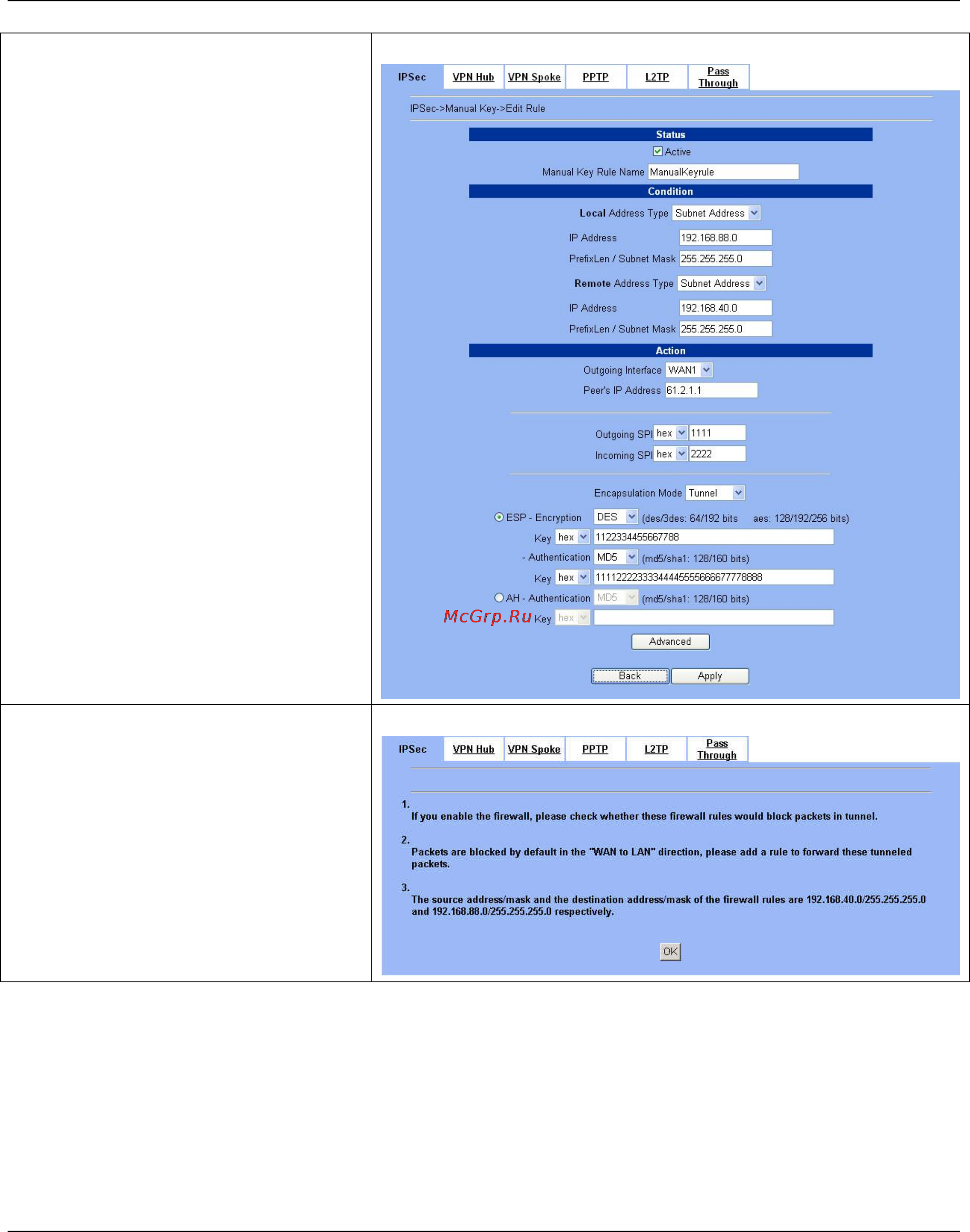

Step 3. Customize the rule
Similar to those in DFL-1, except that you should
interchange the Local IP Address with Remote
IP Address in the Condition part and the
Outgoing SPI with the Incoming SPI in the
Action part. Besides, set the Peer’s IP
Address with the WAN1 IP address of DFL-1.
ADVANCED SETTINGS > VPN Settings > IPSec > Manual Key > Add
Step 4. Remind to add a Firewall rule
After finishing IPSec rule settings, we need to add
a firewall rule. Here system shows a window
message to remind you of adding a firewall rule.
Just press the OK button to add a firewall rule.
ADVANCED SETTINGS > VPN Settings > IPSec > Manual Key > Add
