Part V

Virtual Private Network

D-Link 116

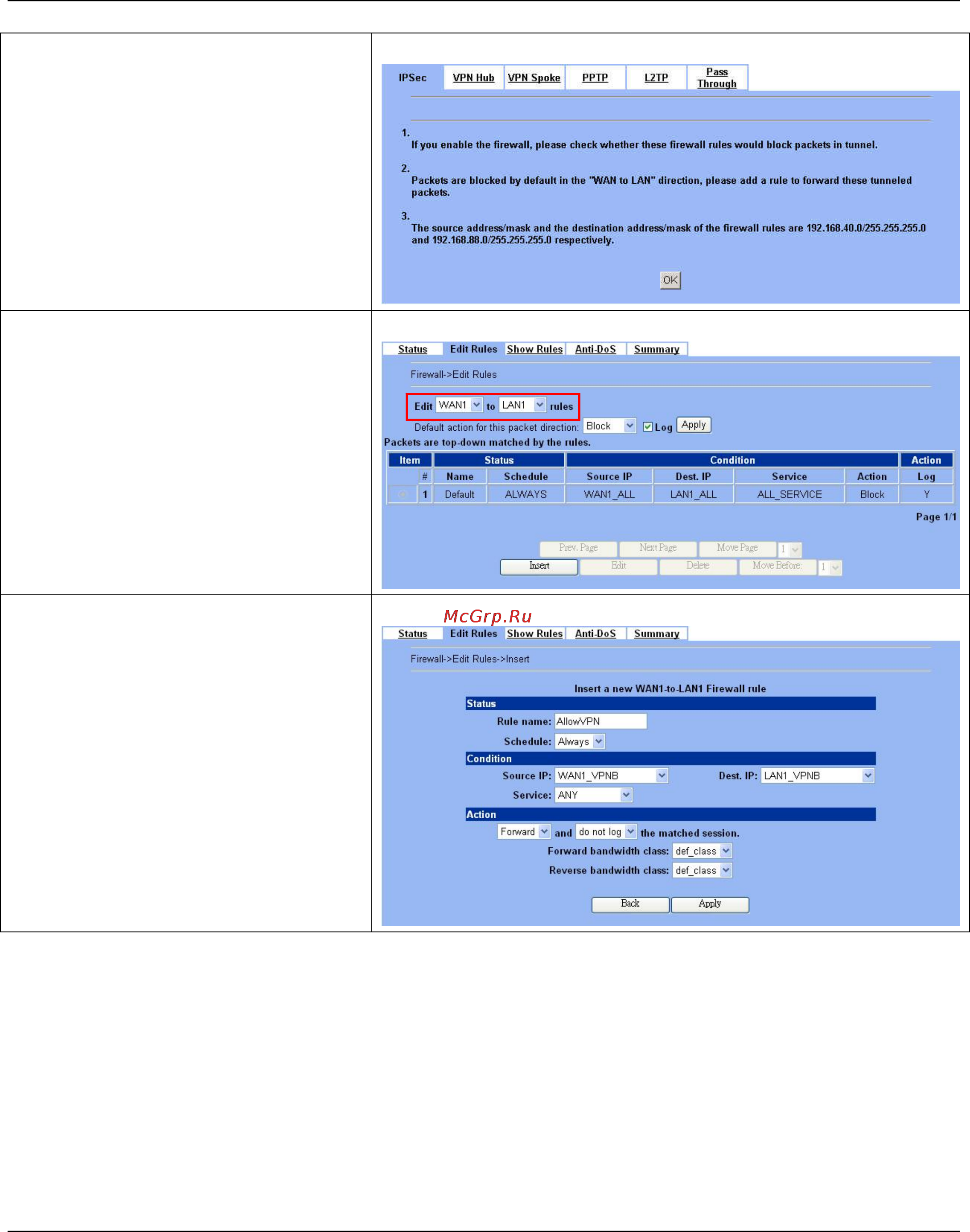

Step 4. Remind to add a Firewall rule

After finishing IPSec rule settings, we need to add

a firewall rule. Here system shows a window

message to remind you of adding a firewall rule.

Just press the OK button to add a firewall rule.

ADVANCED SETTINGS > VPN Settings > IPSec > IKE > Add

Step 5. Add a Firewall rule

Same as at DFL-1. We need to add an extra

firewall rule to allow IPSec packets to come from

internet. So here we select WAN1-to-LAN1

direction, and click Insert button.

ADVANCED SETTINGS > Firewall > Edit Rules

Step 6. Customize the Firewall rule

Enter the Rule Name as AllowVPN, Source IP

as WAN1_VPNB (192.168.40.0), and Dest.

IP as LAN1_VPNB (192.168.88.0). Click

Apply to store this rule.

If you have not yet configured the Source IP, Dest

IP or Service objects. Please refer

Chapter 9 for

the setting information first.

ADVANCED SETTINGS > Firewall > Edit Rules > Insert
