DFL-900/1500 User Manual Chapter 13
Virtual Private Network – IPSec
117
Step 7. View the result
Now we have inserted a new rule before the
default firewall rule. Any packets from
192.168.40.0/24 to 192.168.88.0/24 will
be allowed to pass through the DFL-1500 and
successfully access the 192.168.88.0/24
through the VPN tunnel.

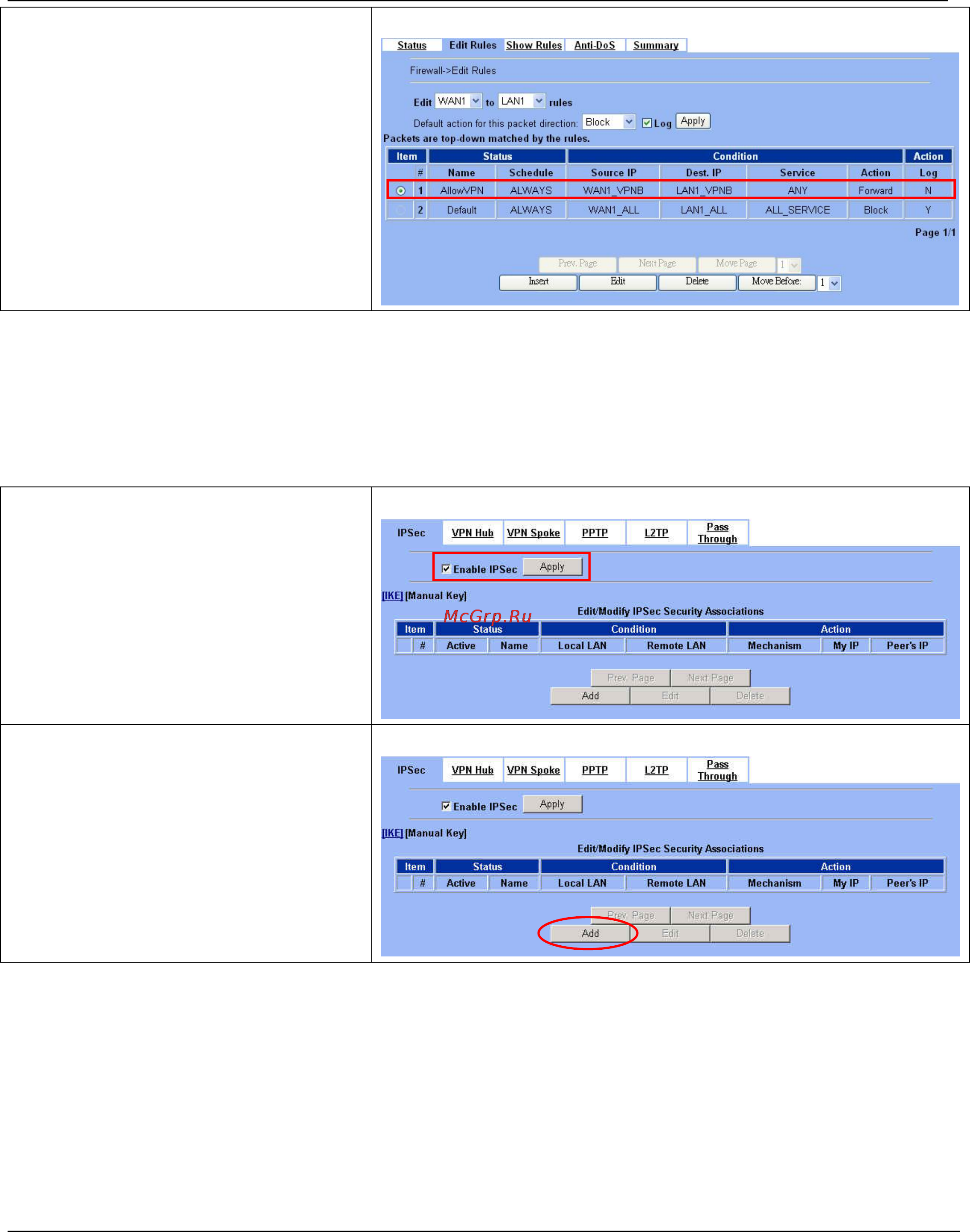

ADVANCED SETTINGS > Firewall > Edit Rules
13.4.2 DES/MD5 IPSec tunnel: the Manual-Key way
In the previous section, we have introduced IKE method. Here we will introduce another method using Manual-Key way
instead of IKE to install DFL-1.
At DFL-1:
At the first, we will use the Manual-Key way to install the IPSec properties of DFL-1.
Step 1. Enable IPSec
Check the Enable IPSec checkbox and click
Apply.
ADVANCED SETTINGS > VPN Settings > IPSec
Step 2. Add a Manual Key rule
Click the Manual Key hyperlink and click Add to
add a new IPSec VPN tunnel endpoint.
ADVANCED SETTINGS > VPN Settings > IPSec > Manual Key
