Part VI
Content Filters
D-Link 186
Step 2. Further Customize the local
zones
You can configure to what range the filters will
apply to the local zones. By default, the web filters
apply to all computers so the “Enforce web
filter policies for all computers” is
selected, and the range is 0.0.0.0 –
255.255.255.255. Delete the default range by
clicking the range item and the Delete button.
Enter the IP range in the Range fields followed by
a click of the Add button to add one address
range to the web filter. Click “Include
…… “ and
Apply if you want web filters to only apply to the
specified ranges. Click “Ex
clude……“ and Apply
if you want web filters to apply to all computers
except those specified ranges.

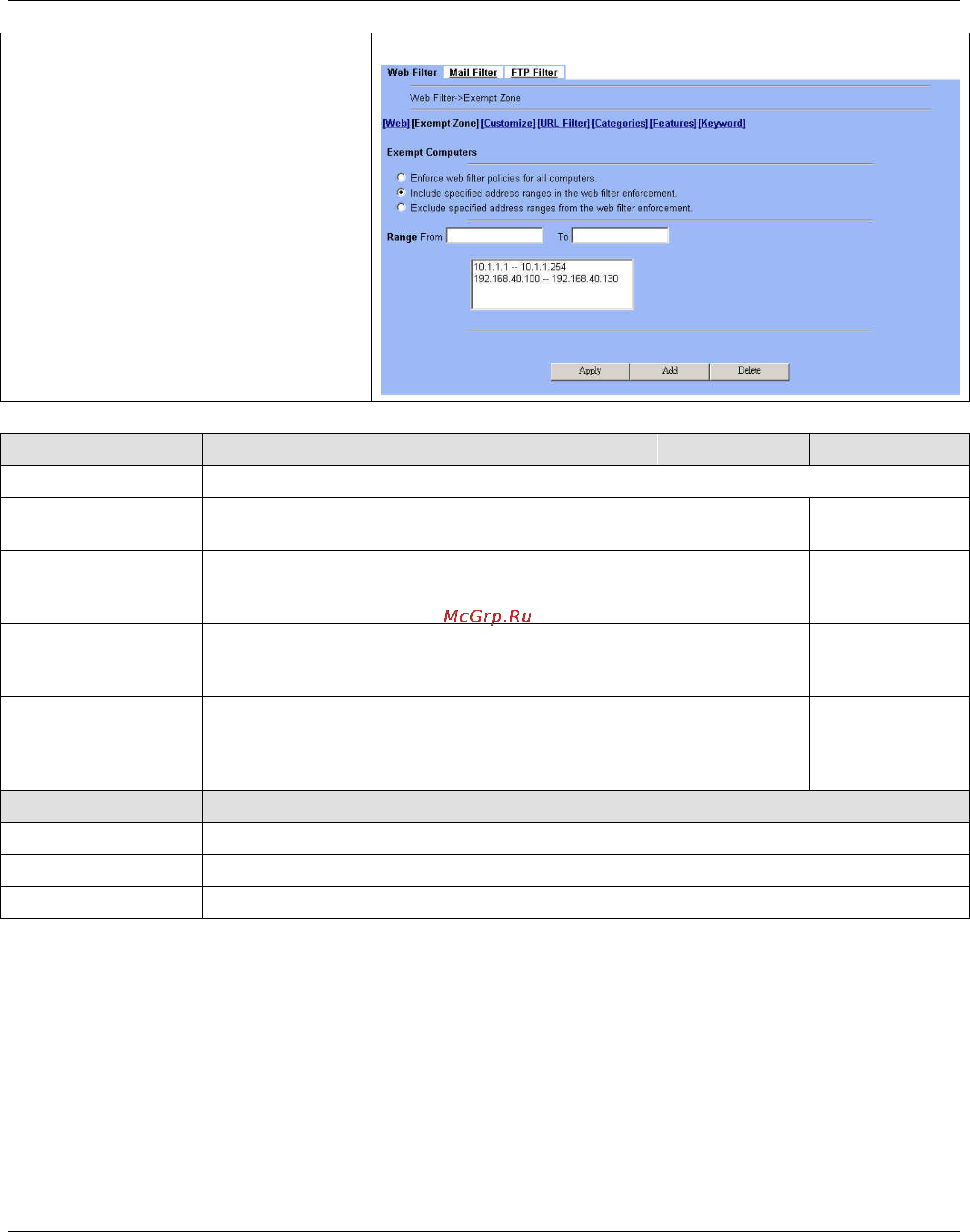

ADVANCED SETTINGS > Content Filters > Web Filter > Exempt Zone
FIELD DESCRIPTION Range / Format EXAMPLE
Exempt Computers Determine which IP range will exempt the verification by the web filter
Enforce web filter
policies for all computers
Web filter is activated at all the computers, not limit range
of the IP addresses
Enable/Disable disabled
Include specified address
ranges in the web filter
enforcement
Web filter will only be activated at below specified
computers.
Enable/Disable Enabled
Exclude specified
address ranges from the
web filter enforcement
Except below specified IP address ranges. All the other IP
address range, web filter will active totally.
Enable/Disable disabled
Range From ___ To ___
Here we can setup the IP address range, for the above
Exempt Computers to use.
IPv4 format IPv4
format
10.1.1.1 –
10.1.1.254
192.168.40.100 –
192.168.40.130
BUTTON DESCRIPTION
Apply Apply the above selected “Exempt Computers” radius button.
Add Add the specified IP range which filled in the above “Range From” field.
Delete Delete the specified IP range which filled in the above “Range From” field.
Table 21-2 Web Filter Exempt Zone setting page
