Part V
Virtual Private Network
D-Link 138
16.4 Steps
¾ The DFL-1500 of LAN_1

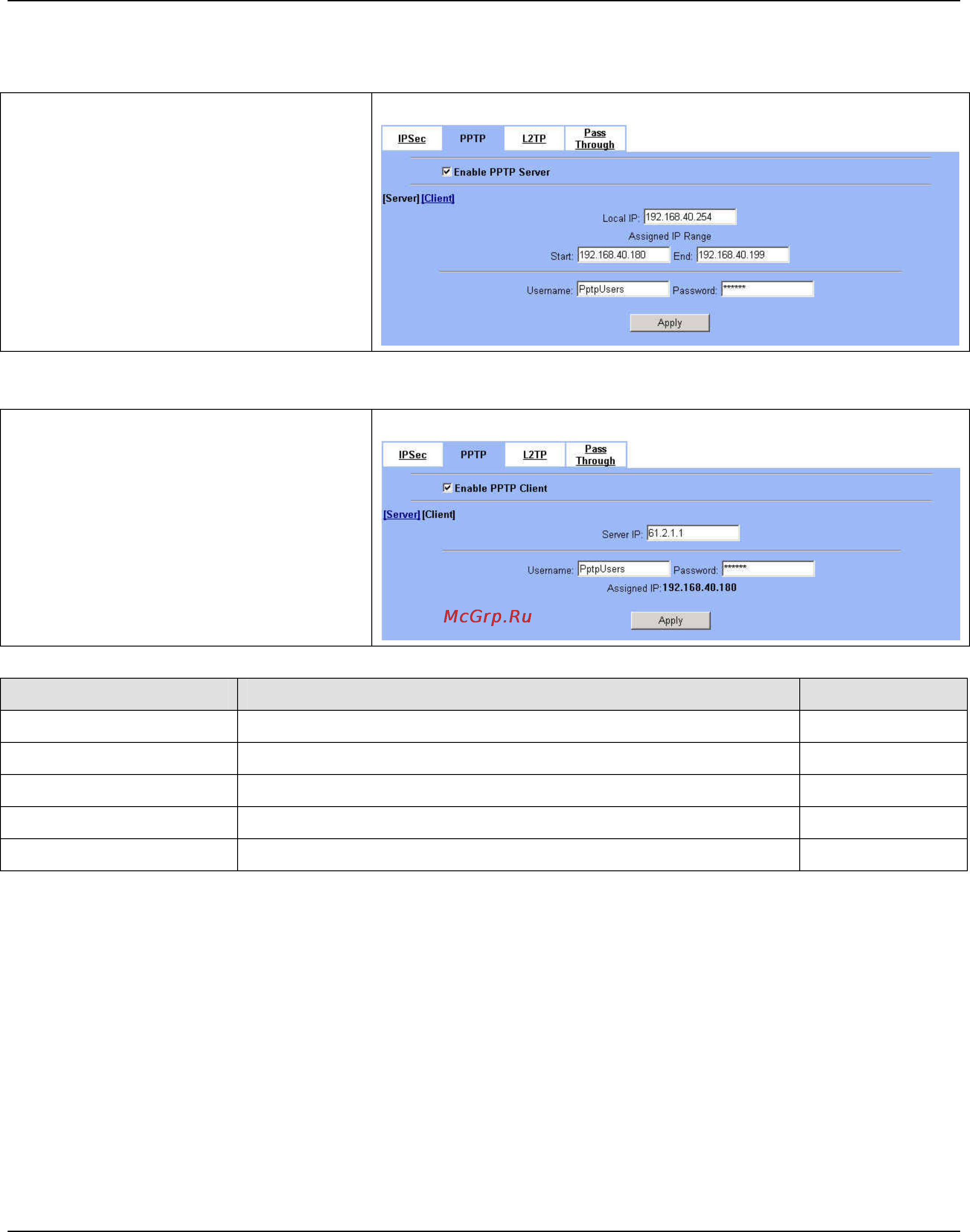

Step 1. Enable PPTP server
Fill the related field in this page.
For the field
description of this page, please refer section
17.4.
ADVANCED SETTINGS > VPN Settings > PPTP
¾ The DFL-1500 of LAN_2
Step 1. Enable PPTP Client
Enter the IP address of PPTP Server and
Username/Password. When connecting to the
PPTP Server successfully, it will appear the
allocated IP address for the PPTP client in the
“Assigned IP” field.
ADVANCED SETTINGS > VPN Settings > PPTP > Client
FIELD DESCRIPTION EXAMPLE
Enable PPTP Client Activate PPTP Client. Enabled
Server IP The IP address of PPTP server. 61.2.1.1
Username The designed account which allows PPTP client to dial in. PptpUsers
Password The designed password which allows PPTP client to dial in. Dif3wk
Assigned IP The allocated IP address when PPTP client connects to the PPTP server. 192.168.40.180
Table 16-1 Setup PPTP Client settings
