DFL-900/1500 User Manual Chapter 20
Remote Access VPN – Windows client
165

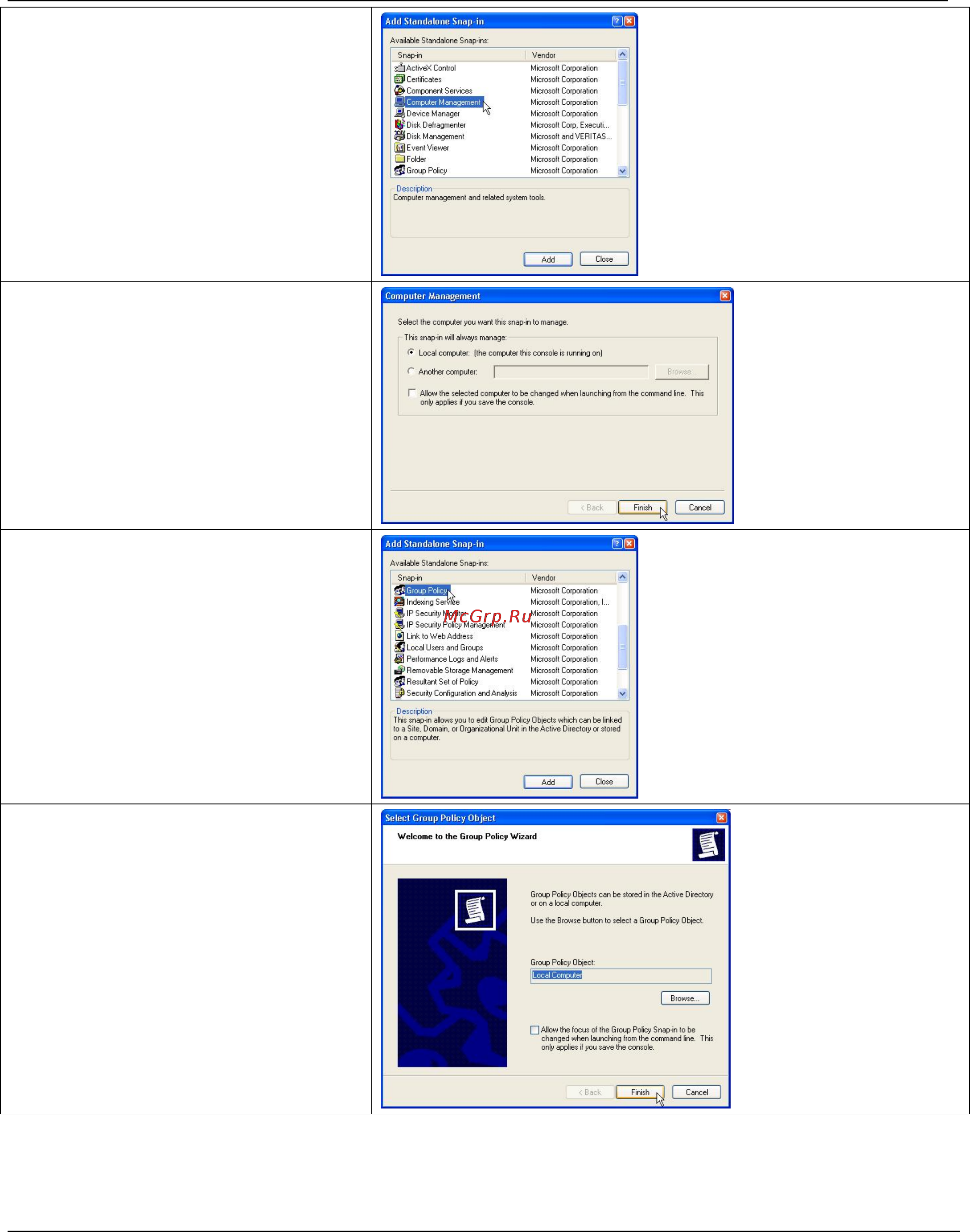

Step 4. Add “Computer Management”
snap-in
In the Add Standalone Snap-in dialog box,
click Computer Management, and then click
Add.
Step 5. Verify the Local Computer is
selected
Verify that Local Computer (default setting) is
selected, and click Finish.
Step 6. Add “Group Policy” snap-in
In the Add Standalone Snap-in dialog box,
click Group Policy, and then click Add.
Step 7. Verify the Local Computer is
selected
Verify that Local Computer (default setting) is
selected in the Group Policy Object dialog
box, and then click Finish.
