Part VI
Content Filters
D-Link 200

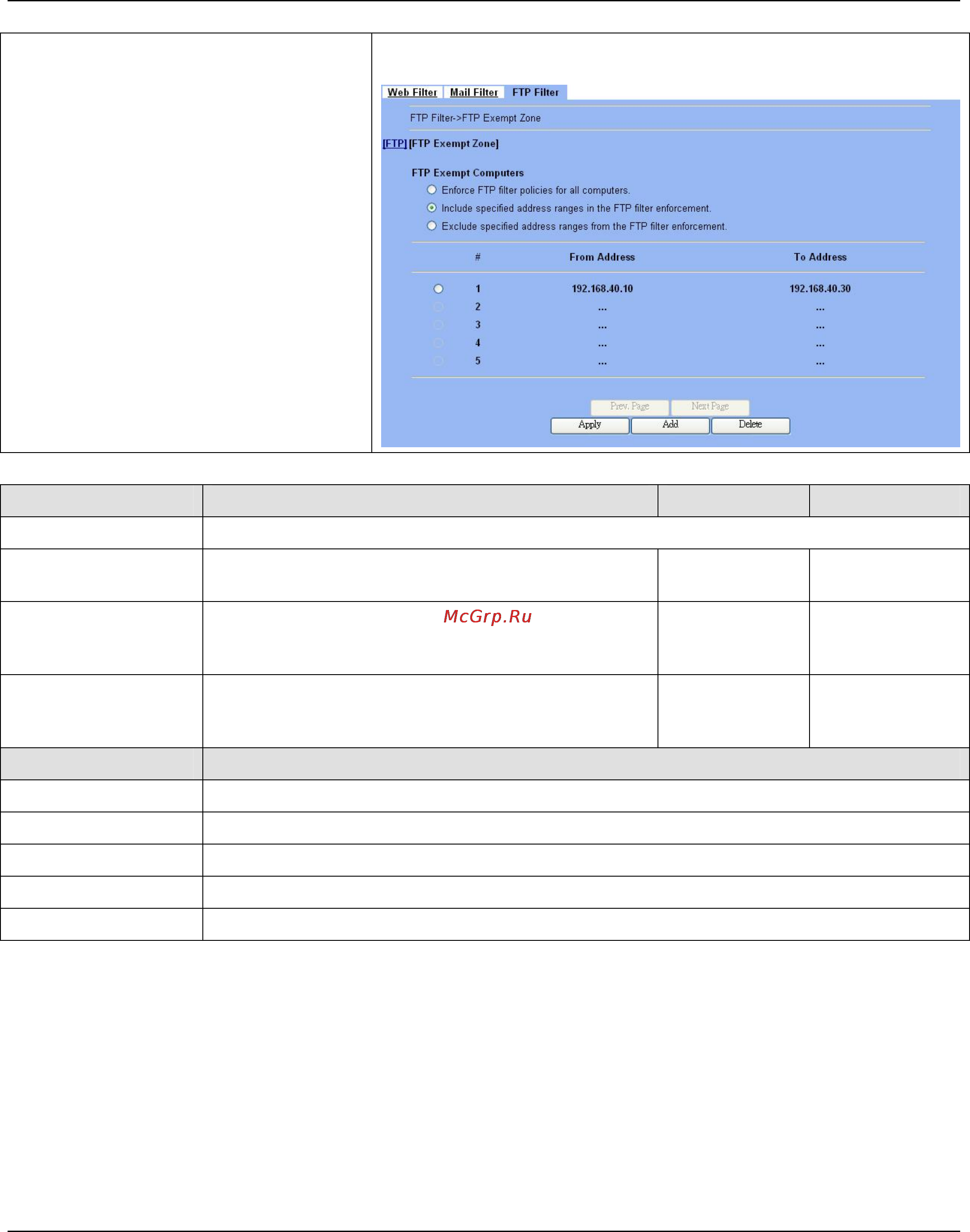

Step 5. Show the Exempt Zones
Here we can discover that new added Exempt
Zone record is appeared.
ADVANCED SETTINGS > Content Filters > FTP Filter > FTP Exempt
Zone
FIELD DESCRIPTION Range / Format EXAMPLE
FTP Exempt Computers Determine which IP range will exempt the verification by the FTP filter
Enforce FTP filter
policies for all computers
FTP filter will be applied to all computers, and no
exceptions.
Enable/Disable Disabled
Include specified address
ranges in the FTP filter
enforcement
FTP filter will only be applied to the specified computers. Enable/Disable Enabled
Exclude specified
address ranges from the
FTP filter enforcement
FTP filter will be applied to all other IP address ranges,
except the specified ones.
Enable/Disable Disabled
BUTTON DESCRIPTION
Prev. Page If there is more than one page, press Prev. Page to back to the previous page.
Next Page If there is more than one page, press Next Page to go to the next page.
Apply Apply the configured settings.
Add Create an exempt zone.
Delete Delete the indicated exempt zone.
Table 23-5 Add FTP filter exempt zone
