Part V
Virtual Private Network
D-Link 158

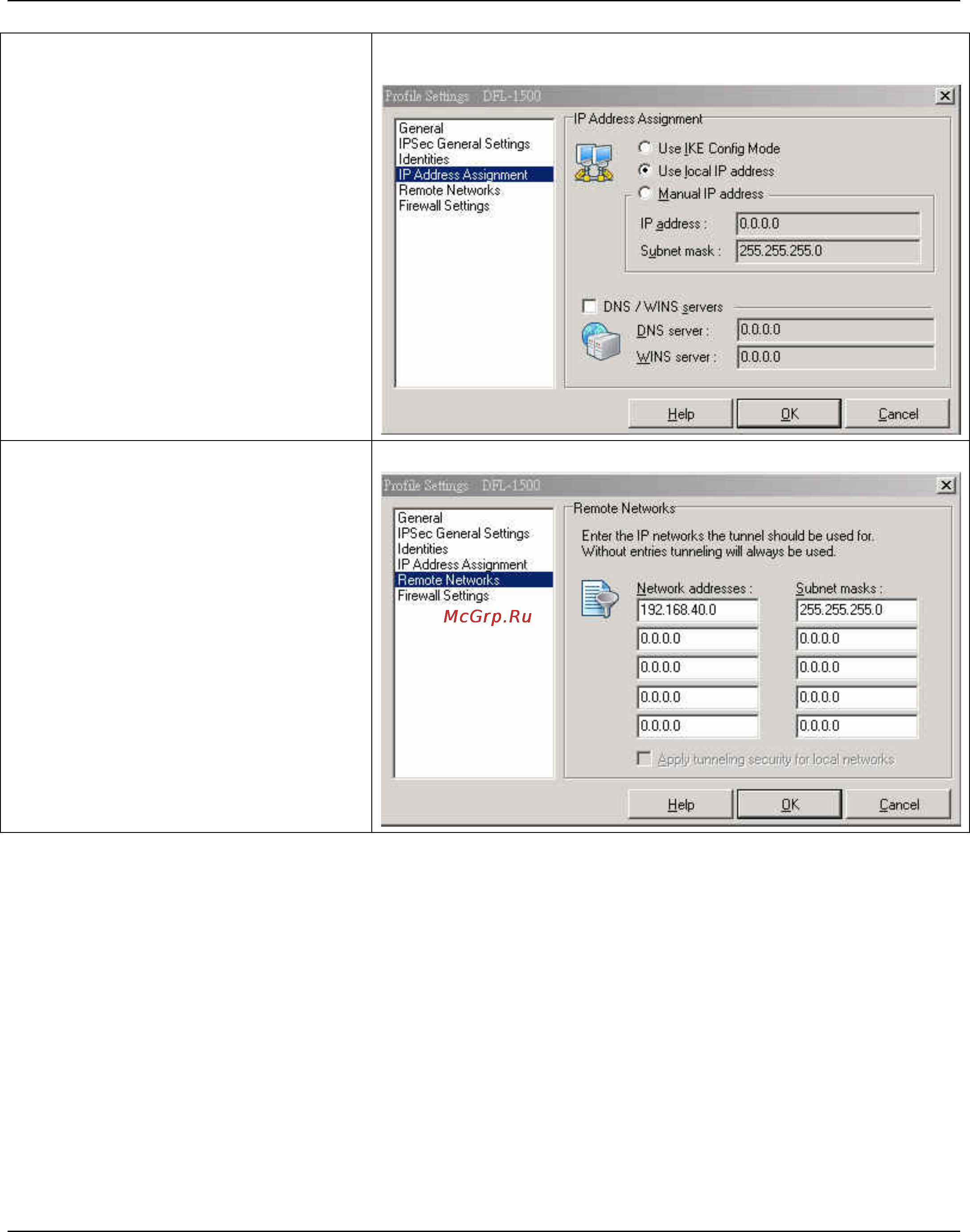

Step 12. IP Address Assignment
Select Use local IP address and then click OK
to finish this settings.
Configuration > Profile Settings > Configure > IP Address
Assignment
Step 13. Setup Remote Networks
Enter the IP network address 192.168.40.0
and subnet masks 255.255.255.0, and then
click OK to finish the settings.
Configuration > Profile Settings > Configure > Remote Networks
