DFL-900/1500 User Manual Chapter 16
PPTP Client with PPTP Server
139

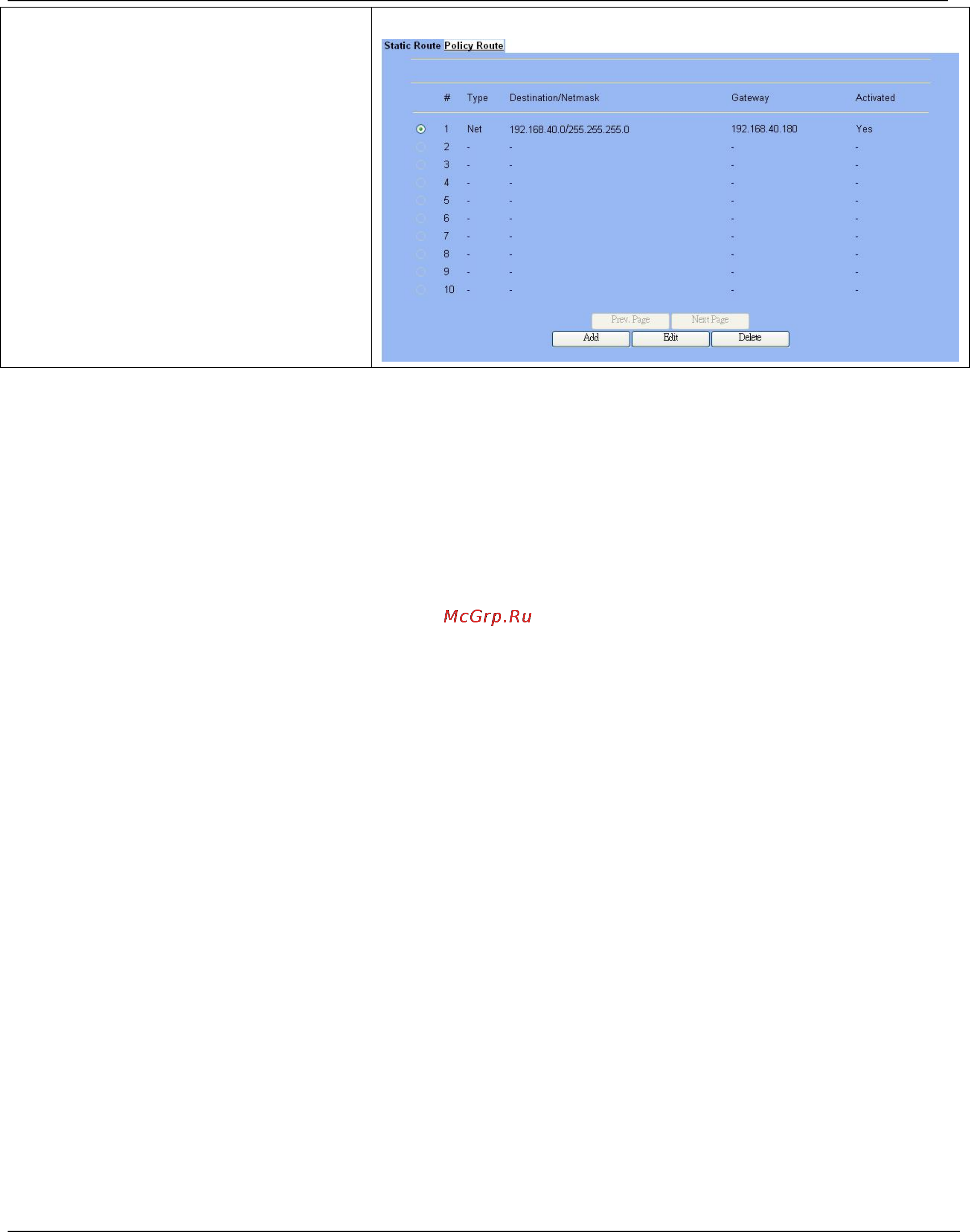

Step 2. Add a static routing entry
Add a static routing entry. For all the packets
which are leaving for the
192.168.40.0/255.255.255.255.0, route
these packets through the assigned IP address
(192.168.40.180). For the field description and
the procedure of adding a static route, please
refer section 8.4.1.
ADVANCED SETTINGS > Routing > Static Route
