Part II
Basic Configuration
D-Link 36
DNS IP Address:
Primary DNS
Secondary DNS
Specified Primary and Secondary DNS Server
address.
IPv4 format
Primary DNS:
168.95.1.1
Secondary DNS:
0.0.0.0
Routing Protocol
Determine to enable the dynamic routing
protocol, to receive RIP message, to send out
the RIP message if the RIP message is
received.
None,
RIPv1/In,
RIPv1/In+Out,
RIPv2/In,
RIPv2/In+Out,
OSPF
None
OSPF Area ID Specify OSPF area ID number.
IPv4 format or
digit string (Max
9 bits)
N/A
Default WAN
link
(Gateway/DNS)
When Default WAN link is enabled, all packets
sent out from DFL-1500 will be via this port.
Enable/Disable Enabled
Service Name ISP vendor (Optional). text string So-Net
User Name The user name of PPPoE account. text string Hey
Password The password of PPPoE account. text string G54688
Get DNS
Automatically /
DNS IP Address
Get DNS Automatically Æ Get DNS related
information from PPPoE ISP
DNS IP Address Æ manually specify these
Primary and Secondary DNS Server
information
Get DNS
Automatically /
DNS IP Address
Get DNS
Automatically
PPP over
Ethernet
Disconnect
button
Disconnect PPPoE link by clicking Disconnect
button.
Disconnect Click Disconnect
Table 3-1 Detailed information of setup WAN port configuration

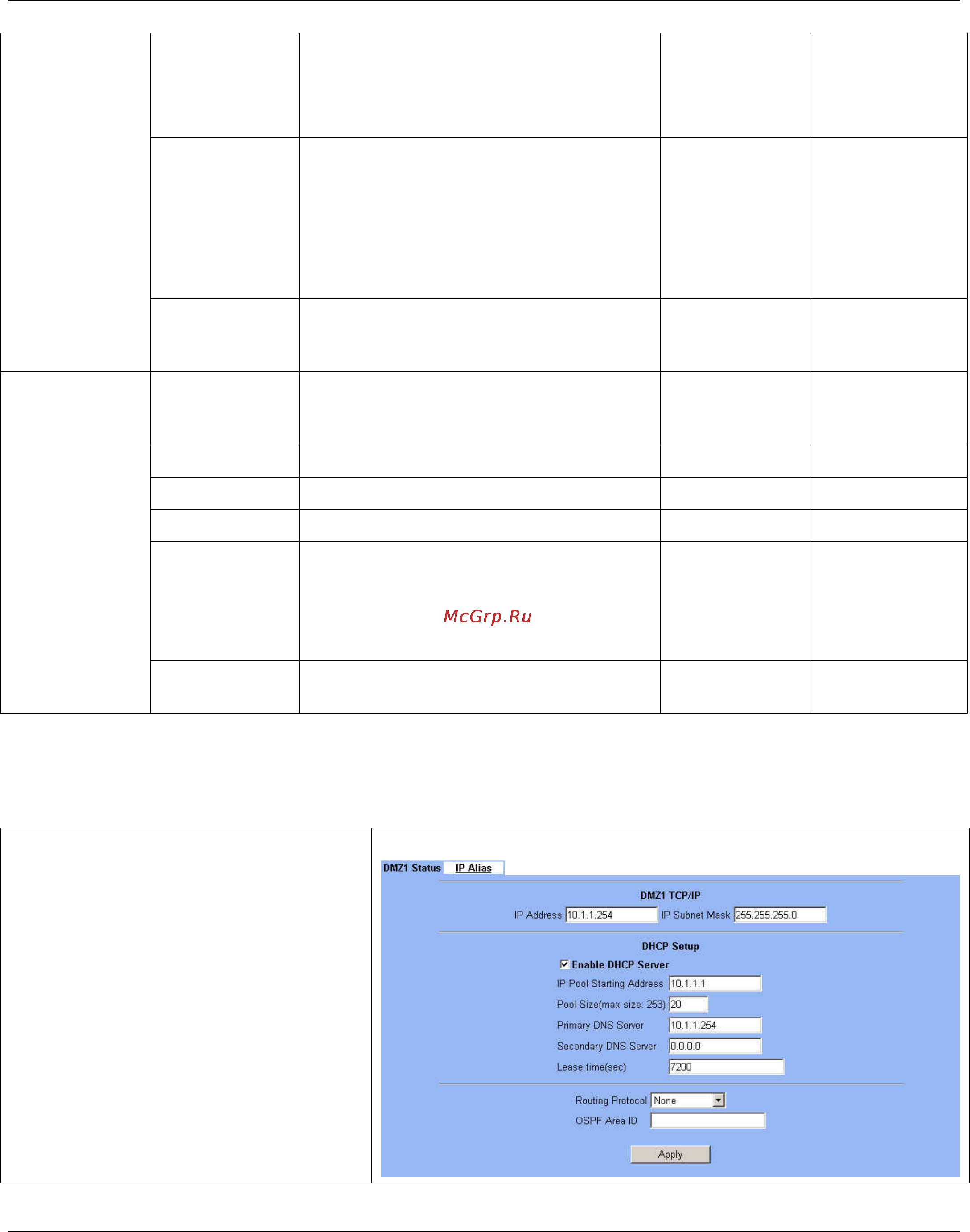

3.4.2 Setup DMZ1, LAN1 Status
Step 1. Setup DMZ port
Here we are going to configure the DMZ1
settings. Setup IP Address and IP Subnet
Mask, and determine if you would like to enable
the DHCP Server. And then select Routing
Protocol. Click Apply to finish this setting.
BASIC SETUP > DMZ Settings > DMZ1 Status
