D-Link DFL-1500 [27/271] Lan1 to wan1 connectivity

DFL-900/1500 User Manual Chapter 1

Quick Start

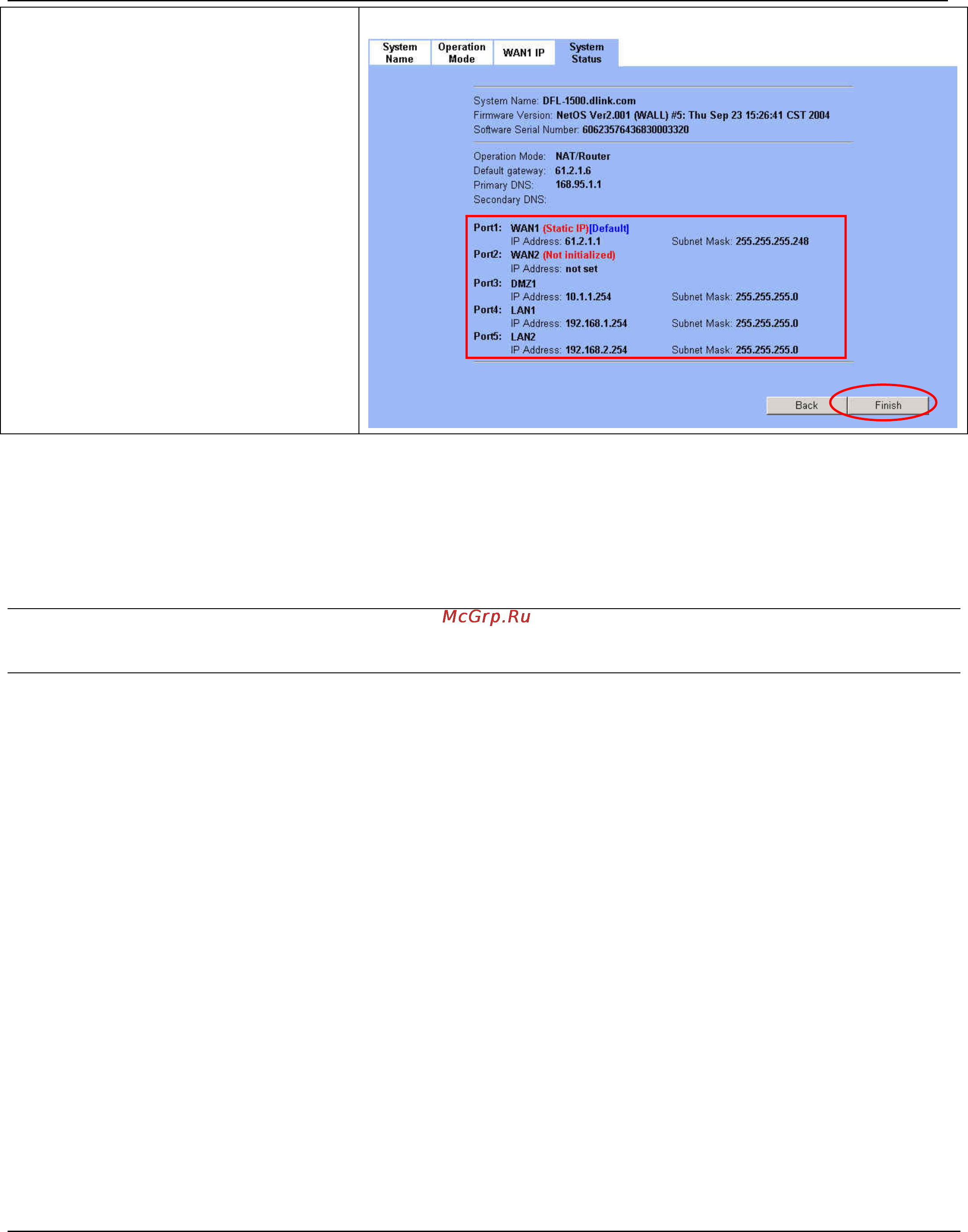

Step 6. System Status

Here we select Fixed IP method in WAN1

port. Then the DFL-1500 provides a short

summary of the system. Please check if

anything mentioned above is properly set into

the system. Click Finish to close the wizard.

BASIC SETUP > Wizard > Run Setup Wizard > Next > Next

1.8 Internet Connectivity

After setting up DFL-1500 with the wizard, DFL-1500 can connect to the ISP. In this chapter, we introduce LAN1-to-WAN1

Connectivity to explain how the computers under LAN1 can access the Internet at WAN1 through DFL-1500. Subsequently, we

introduce WAN1-to-DMZ1 Connectivity to explain how the servers under DMZ1 can be accessed by the LAN1 users and other

Internet users on the WAN1 side.

You MUST press Apply to proceed to the next page. Go to System Tools > System Utilities > Save Configuration

to save the configuration. Once applying any changes, the settings are immediately updated into the flash

memory.

1.8.1 LAN1-to-WAN1 Connectivity

The LAN Settings page allows you to modify the IP address and Subnet Mask that will identify the DFL-1500 on your LAN. This is

the IP address you will enter in the URL field of your web browser to connect to the DFL-1500. It is also the IP address that all of

the computers and devices on your LAN will use as their Default Gateway.
