DFL-900/1500 User Manual Chapter 26
Bandwidth Management
213
BUTTON DESCRIPTION
Prev. Page If there are more than one action pages, you can press Prev. Page to back to the previous page.
Next Page If there are more than one action pages, you can press Next Page to go to the next page.
Create-Sub-class Create a sub class from the indicated class.
Edit Edit the properties of the existent class.
Delete Delete the indicated class.
Table 26-4 Setup edit actions page of Bandwidth Management

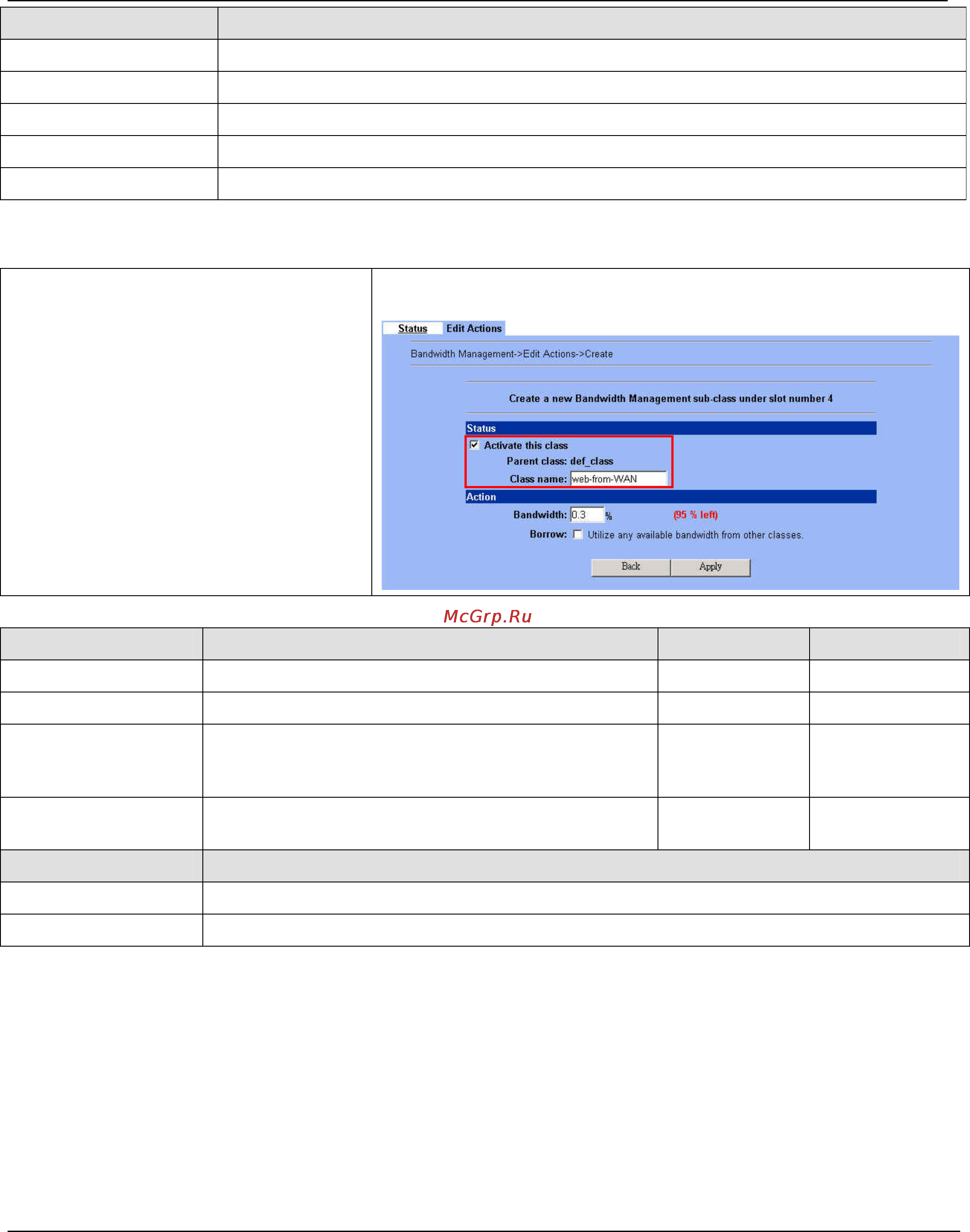

Step 3. Add new classes
Create a sub-class named web-from-WAN from
the default class. Enter 0.3% in the bandwidth
field. Make sure that Borrow button is unchecked
and then web-from-WAN class will not enlarge
the bandwidth from borrowing other unused
bandwidth. Finally, click Apply button. See the
steps in the right diagram.
Subsequently, we will continue to setup another
two classes, such as video-from-WAN class and
web-from-DMZ class. Select the default class and
click the Create Sub-Class to create these two
classes. The setting procedure is the same as the
web-from-WAN class described.
ADVANCED SETTINGS > Bandwidth Mgt. > Edit Actions > Create
Sub-class
FIELD DESCRIPTION Range/Format EXAMPLE
Activate this class Enable the bandwidth management class for later use. Enable/Disable Enabled
Class name Bandwidth management class name. text string web-from-WAN
Bandwidth
How many percentage does this class occupy the parent
class?
0.1 ~ Max Value
(as red text
described)
0.3
Borrow
When enabled, this class will borrow the idle bandwidth
from other classes temporarily if needed.
Enable/Disable Disabled
BUTTON DESCRIPTION
Back Back to previous configuration page.
Apply Apply the settings which have been configured.
Table 26-5 Add new class in the bandwidth management feature
