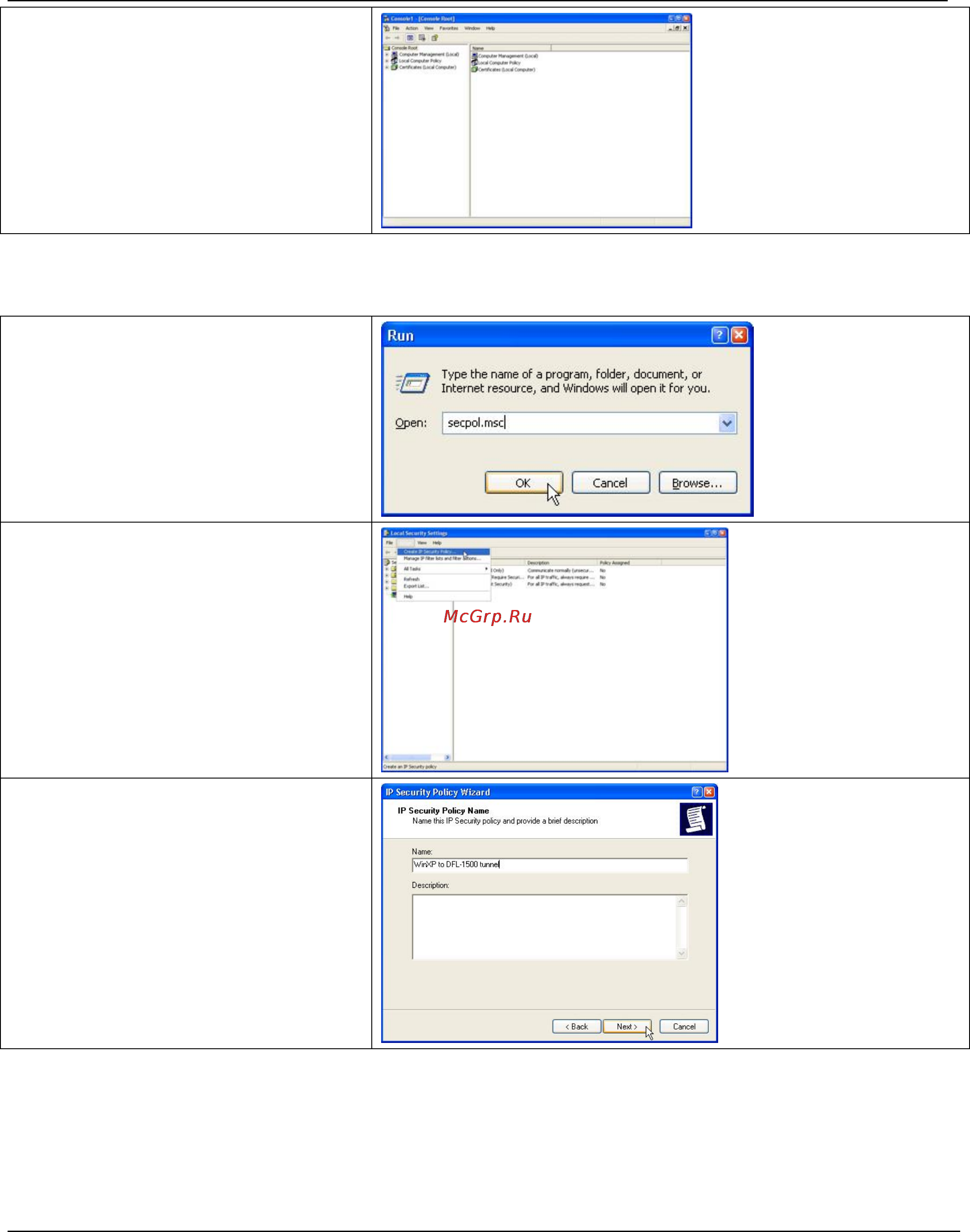

DFL-900/1500 User Manual Chapter 20
Remote Access VPN – Windows client
167
Step 12. Finish the mmc console
creation
After finishing the previous steps, we have
selected three snap-in components in the mmc
console.
20.4.3 Create an IPSec policy
Step 1. Run secpol.msc
From Windows desktop, go to Start > Run, and
in the Open textbox, type secpol.msc. And then
click OK.
Step 2. Create IP Security policy
Select Action > Create IP Security policy
to add security policy.
Step 3. Enter policy name
Click Next, and type a name for your policy.
For example, WinXP to DFL-1500 tunnel.
