DFL-900/1500 User Manual Chapter 20
Remote Access VPN – Windows client
179

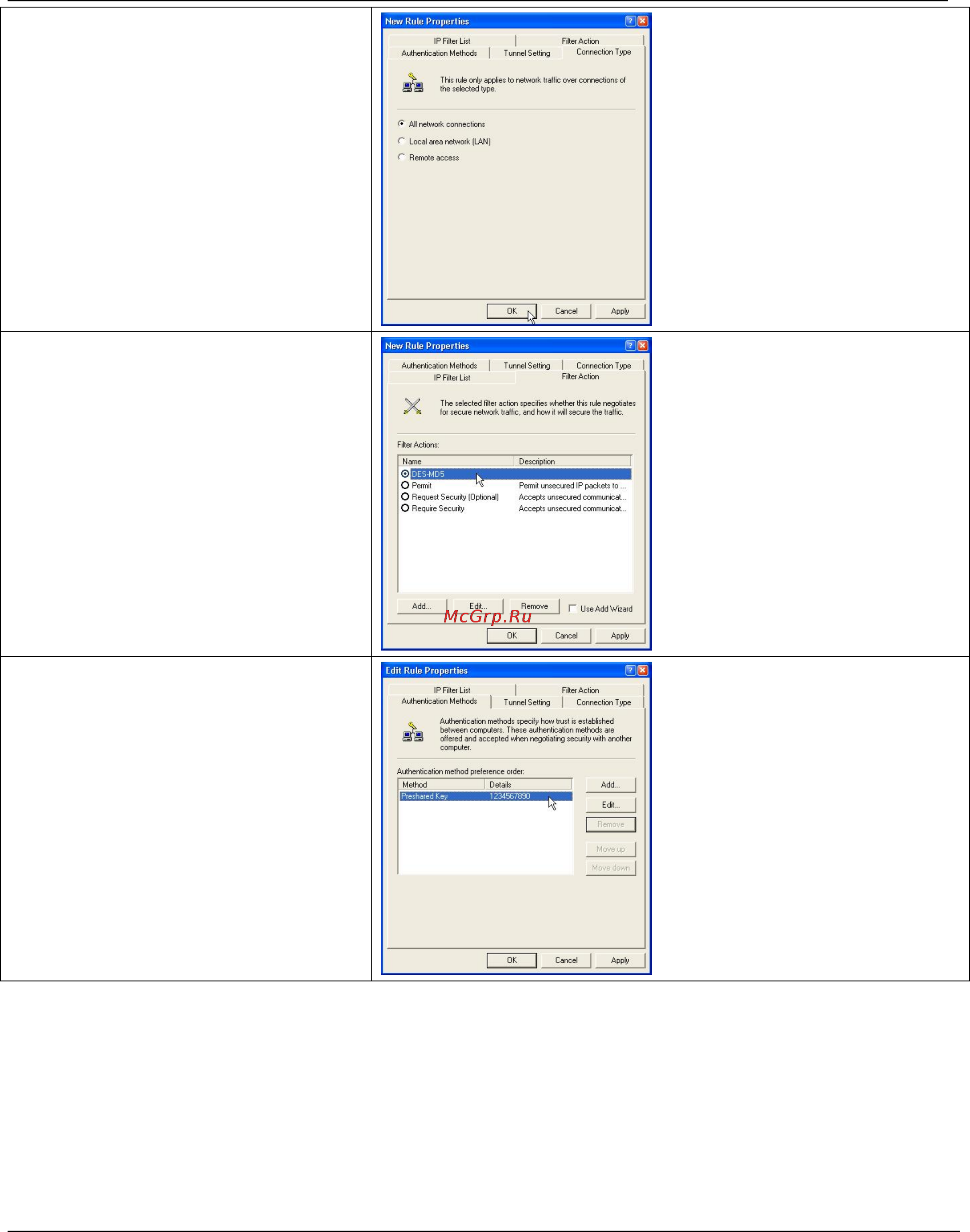

Step 4. Connection Type
Click Connection Type tab, and then click All
network connections.
Step 5. Filter Action
Click Filter Action tab, and then select the
filter action (DES-MD5) you just created.
Step 6. Authentication Methods
Click Authentication Methods tab, select the
Preshared Key we defined before. Click OK to
finish the rule creation.
