DFL-900/1500 User Manual Chapter 14
Virtual Private Network –Dynamic IPSec
127

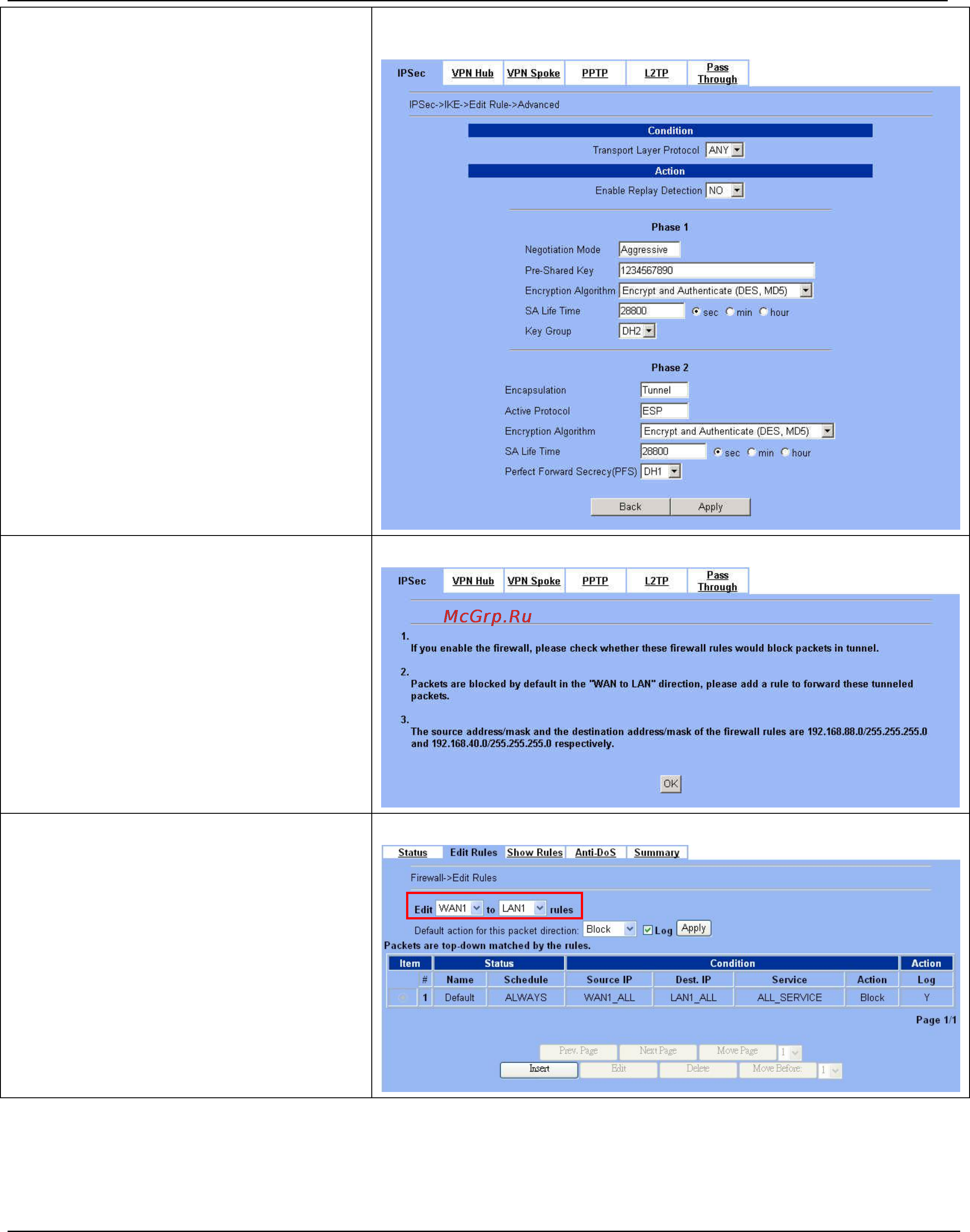

Step 4. Detail settings of IPSec IKE
In this page, we will set the detailed value of IKE
parameter. For the related field, please refer to
Table 13-5 indicated.
ADVANCED SETTINGS > VPN Settings > IPSec > IKE > Add >
Advanced
Step 5. Remind to add a Firewall rule
After finishing IPSec rule settings, we need to add
a firewall rule. Here system shows a window
message to remind you of adding a firewall rule.
Just press the OK button to add a firewall rule.
ADVANCED SETTINGS > VPN Settings > IPSec > IKE > Add
Step 6. Add a Firewall rule
Beforehand, please make sure that the Firewall is
enabled. Select WAN1-to-LAN1 to display the rules
of this direction. The default action of this
direction is Block with Logs. We have to allow
the VPN traffic from the WAN1 side to enter our
LAN1 side. So we click the Insert button to add
a Firewall rule before the default rule.
ADVANCED SETTINGS > Firewall > Edit Rules
