DFL-900/1500 User Manual Chapter 16

PPTP Client with PPTP Server

137

Chapter 16

PPTP Client with PPTP Server

This chapter introduces how to build a site to site VPN using PPTP client and PPTP server.

16.1 Demands

1. In our branch office, we need to provide secure connection methods to connect back to headquater for the internal company

employees. As the following

Figure 16-1 illustrated, The employees of LAN_2 area would like to access the resources of

LAN_1 area with a security way.

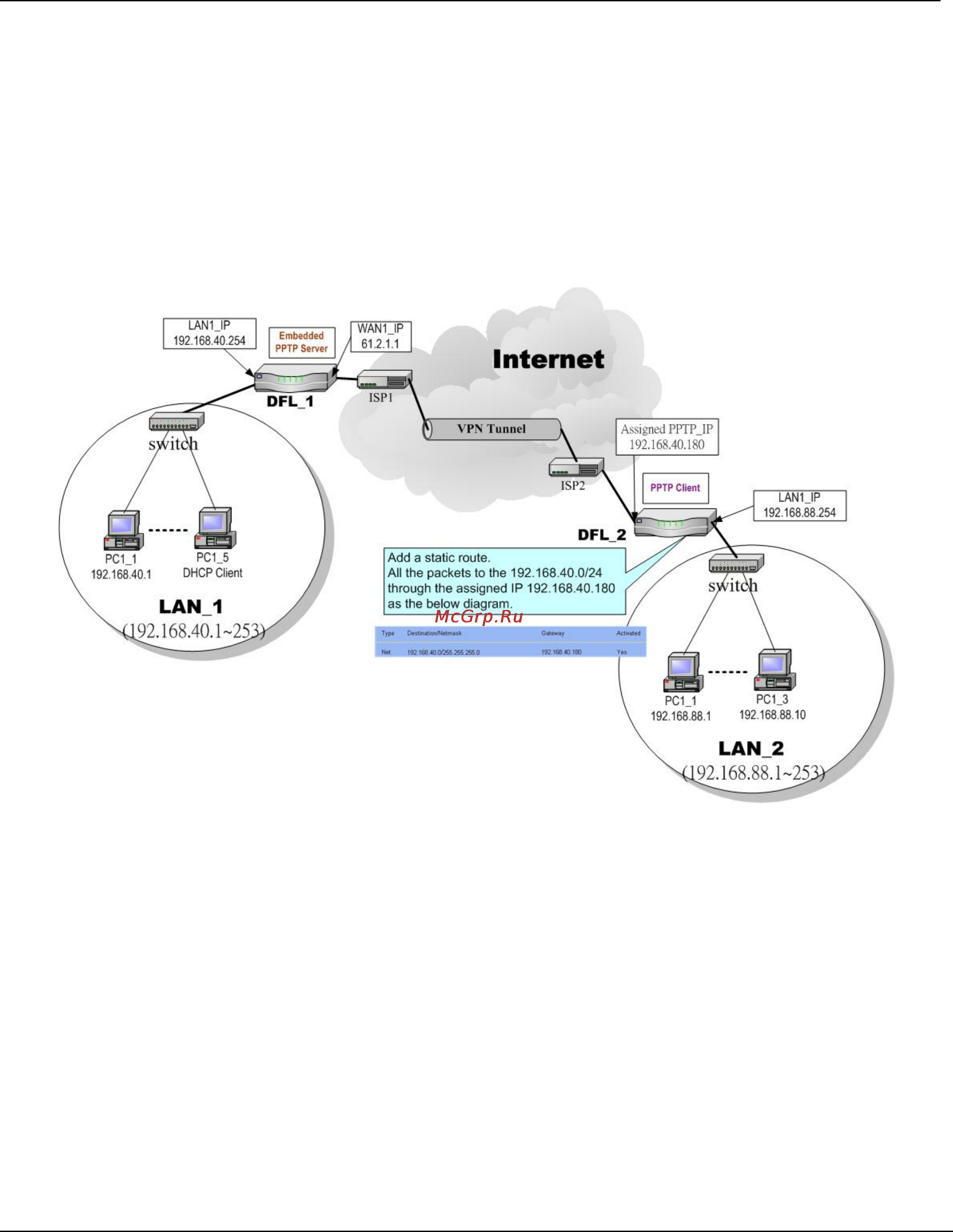

Figure 16-1 PPTP client with PPTP server

16.2 Objectives

1. Make sure each employee in the branch office can use the network resource in the headquater. After the VPN tunnel is

established, the employees of LAN_2 seem to work in the same internal network of LAN_1, and keep the communication

security.

16.3 Methods

1. Setup the DFL-1500 of LAN_1 as PPTP Server. Then Setup the DFL-1500 of LAN_2 as the PPTP client. Besides we must

add a static routing rule at the DFL-1500 of LAN_2.
