Part III
NAT & Routing
D-Link 68

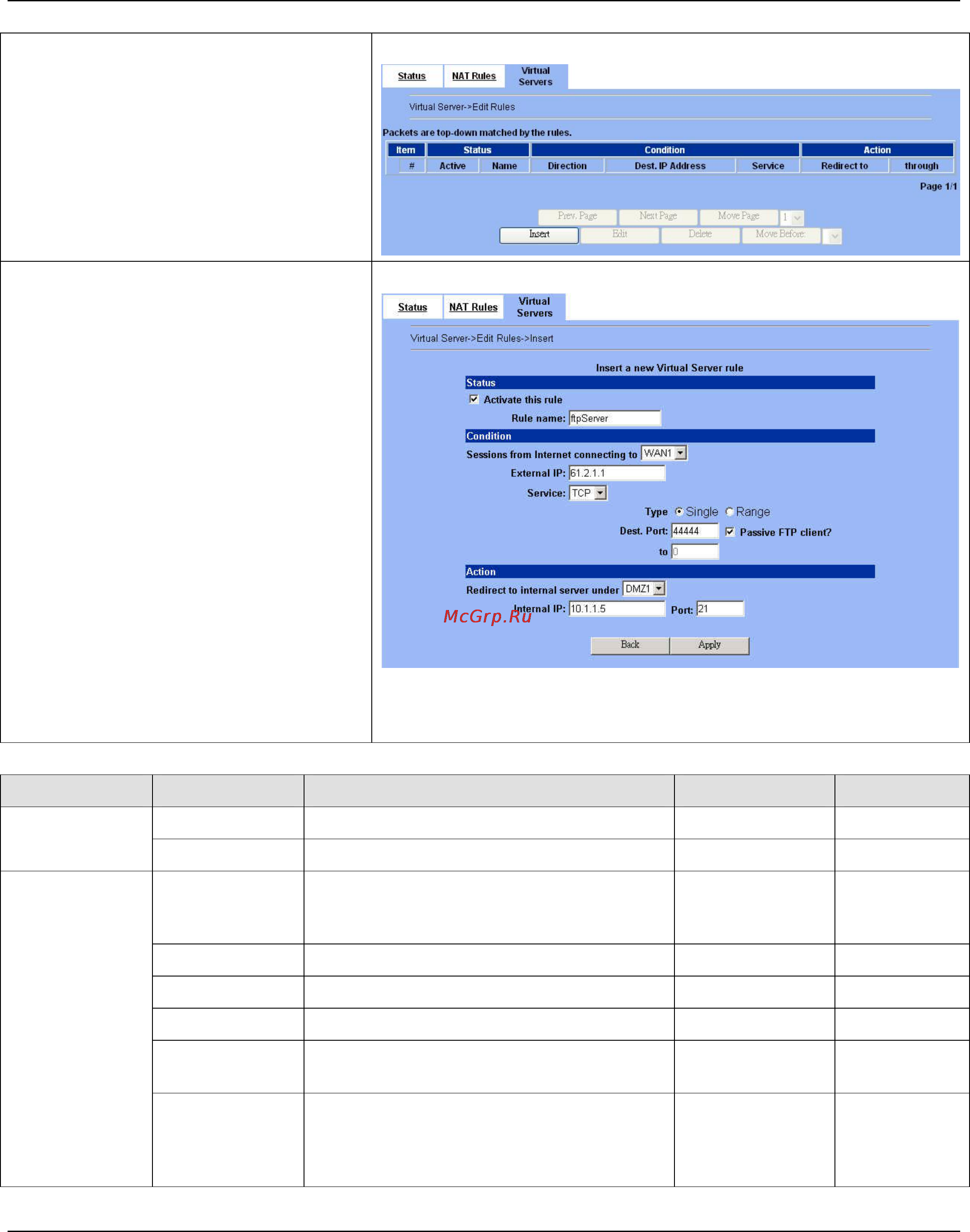

Step 7. Setup Server Rules
Insert a virtual server rule by clicking the Insert
button.
ADVANCED SETTINGS > NAT > Virtual Servers
Step 8. Customize the Rule
Customize the rule name as the ftpServer. For
any packets with its destination IP equaling to the
WAN1 IP (61.2.1.1) and destination port
equaling to 44444, ask DFL-1500 to translate the
packet’s destination IP/port into 10.1.1.5/21.
Check the Passive FTP client? to maximize
the compatibility of the FTP protocol. This is
useful if you want to provide connectivity to
passive FTP clients. For passive FTP clients, the
server will return them the private IP address and
the port number for them to connect back to do
data transmissions. Since the private IP from
them cannot be routed to our zone, the data
connections will fail. After enabling this feature,
the DFL-1500 will translate the private IP/port into
an IP/port of its own. Thus the problem is
gracefully solved. Click Apply to proceed.
Note after setting the Virtual Server rule, please
adjust your corresponding firewall/NAT rules
manually. Or the virtual server will work
improperly.
ADVANCED SETTINGS > NAT > Virtual Servers > Insert
FIELD DESCRIPTION Range / Format EXAMPLE
Activate this rule Activate the Virtual Server rule. Enabled / Disabled Enabled
Status
Rule name The Virtual Server rule name text string ftpServer
Sessions from
Internet
connecting to
Which interface does the connected session
come from?
WAN interfaces WAN1
External IP The public IP address of the Virtual Server. IPv4 format 61.2.1.1
Service The service which is provided by the real server. TCP / UDP TCP
Type Port is Single or Range Single / Range Single
Dest Port
The TCP/UDP port number which is provided
by the real server.
1 ~65534 44444
Condition
Passive FTP
client
If the Passive FTP client is checked, it will
connect to the internal DMZ FTP server of
DFL-1500 when FTP client uses passive mode.
Otherwise, it will not work.
Enabled / Disabled Enabled
