DFL-900/1500 User Manual Chapter 20
Remote Access VPN – Windows client
169

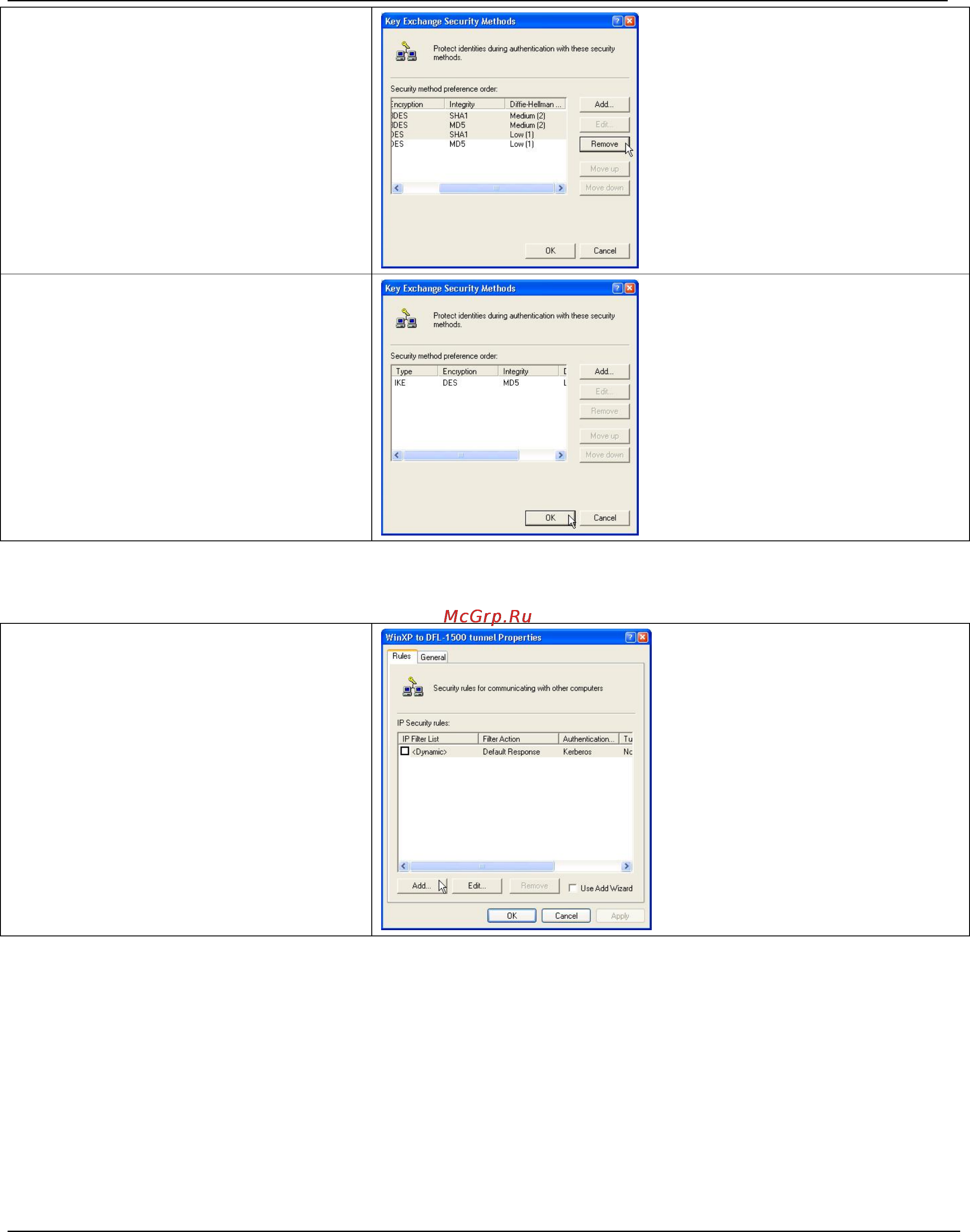

Step 8. Delete the extra items
In this diagram, we are going to specify the
phase1 parameter of IPSec rule at the WinXP.
We setup DFL-1500 IPSec phase1 with
DES-MD5-DH1 (please refer Section
20.4.1 ),
therefore we delete the extra 3 items, and only
remain the item that matches our IPSec settings
of the DFL-1500.
Step 9. Remain the corresponding item
For this example, we remain the item of DES,
MD5 and DH1 combinations.
20.4.4 Add a filter rule from WinXP to DFL-1500
Step 1. Add a new filter rule
In the tunnel properties, uncheck Use Add
Wizard check box, and click Add to create a new
rule. And click Add to create a new IP Security
Rule.
