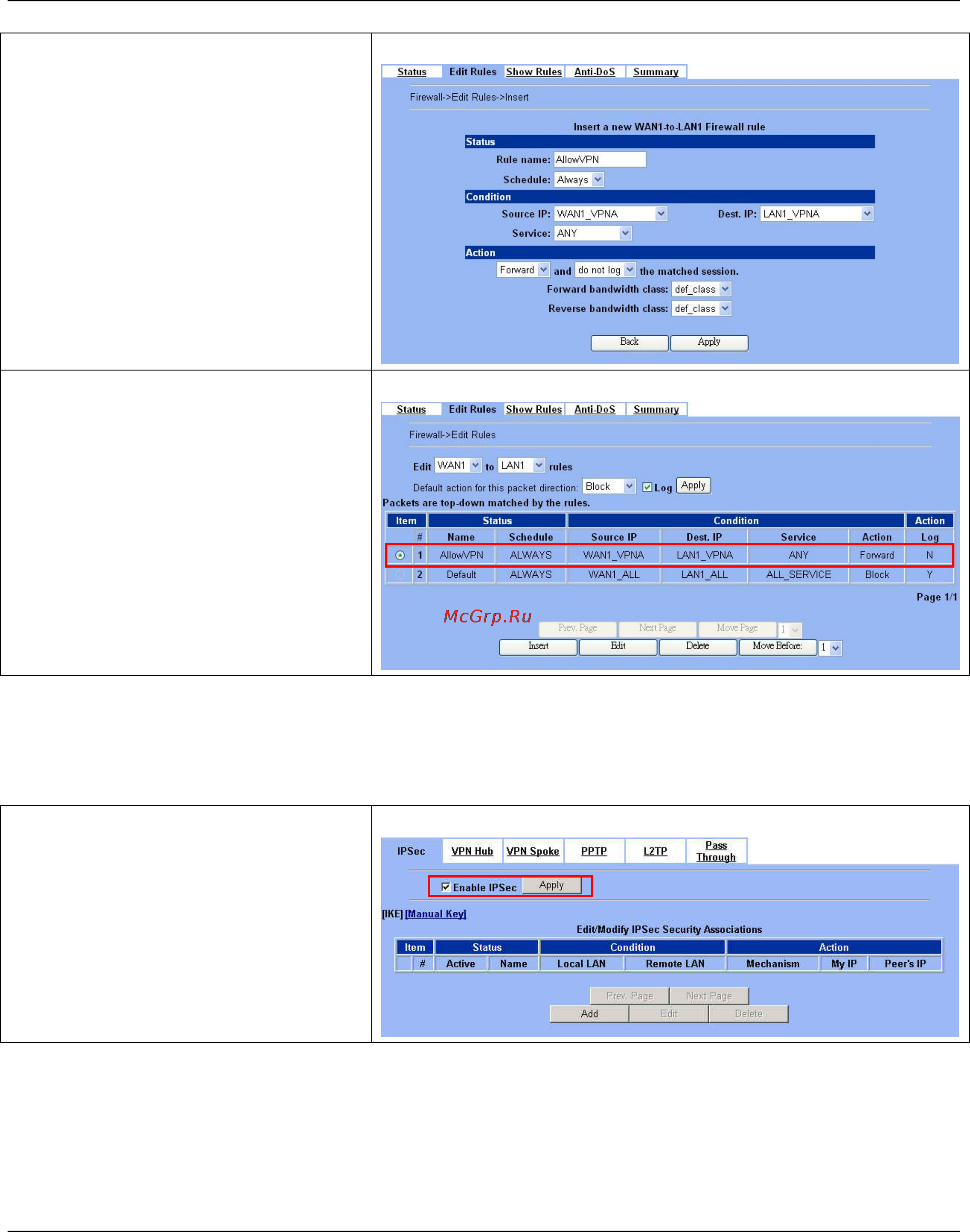

Step 7. Customize the Firewall rule

Enter the Rule Name as AllowVPN, Source IP

as WAN1_VPNA (192.168.88.0), and Dest.

IP as LAN1_VPNA (192.168.40.0). Click

Apply to store this rule.

ADVANCED SETTINGS > Firewall > Edit Rules > Insert

Step 8. View the result

Here we have a new rule before the default

firewall rule. This rule will allow packets from

192.168.88.0 / 255.255.255.0 pass

through DFL-1500. And accomplish the VPN

tunnel establishment.

ADVANCED SETTINGS > Firewall > Edit Rules

At DFL-2:

Here we will install the IPSec properties of DFL-2. Note that the “Local Address” and “Remote address” field are opposite to

the DFL-1, and so are “My IP Address” and “Peer’s IP Address” field.

Step 1. Enable IPSec

Check the Enable IPSec checkbox and click

Apply.

ADVANCED SETTINGS > VPN Settings > IPSec
