DFL-900/1500 User Manual Chapter 9

IP/Services grouping

FIELD DESCRIPTION Range / Format EXAMPLE

Define Addresses

Groups on __

Select the interface which you are going to define addresses

group.

All the interfaces LAN1

Table 9-3 Define the addresses group

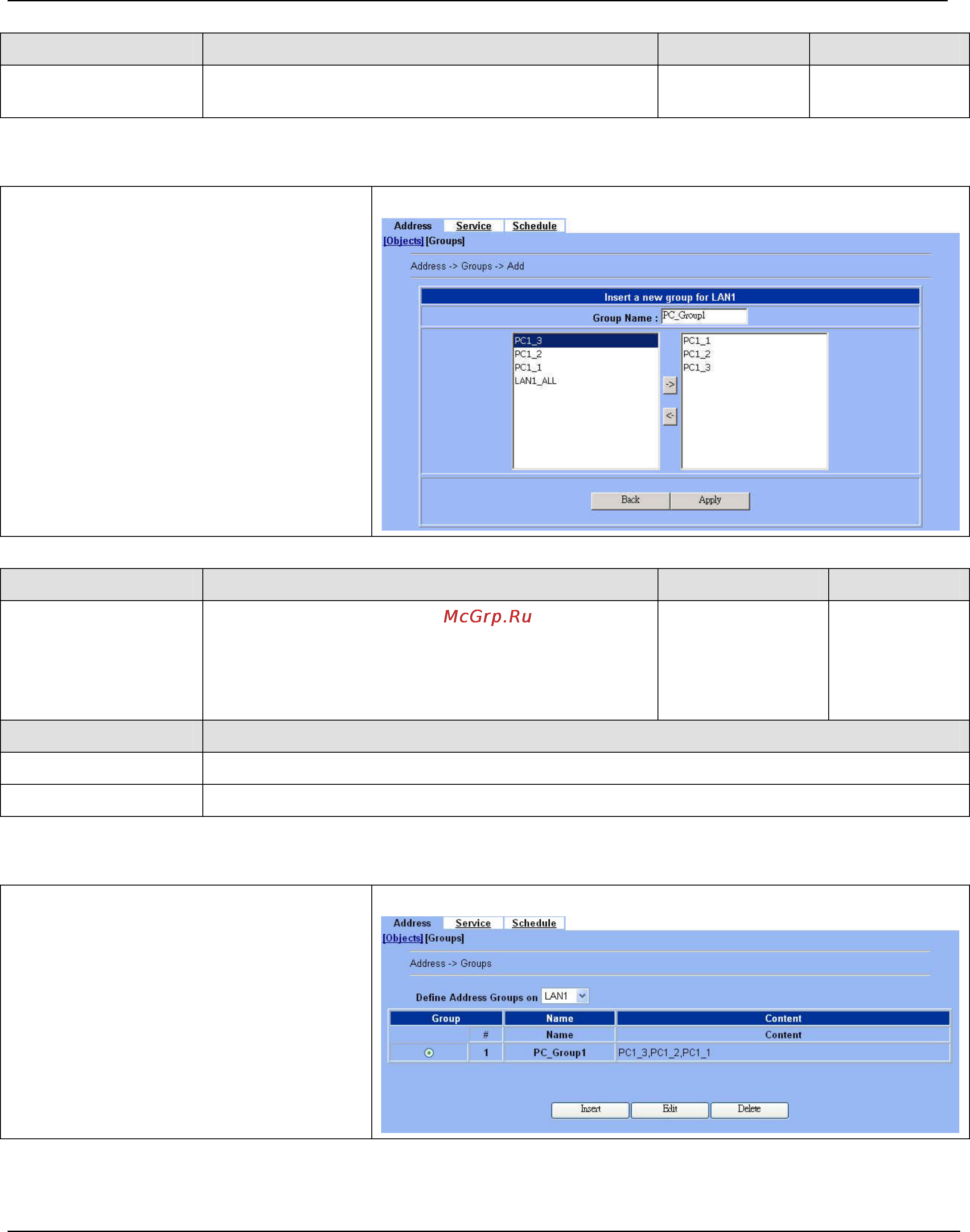

Step 5. Add an address group

Enter a Group Name to identify the address

group. Select the addresses from the available

address list and click right arrow to add them to

the Members list. To remove addresses from

address group, please select addresses from the

Members list and then click left arrow.

You can add address groups to any interface.

The address group can only contain addresses

from that interface. Address group cannot have

the same names as individual addresses. If an

address group is included in a firewall rule, it

cannot be deleted unless it is first removed by the

firewall rule.

BASIC SETUP > Books > Address > Group > Insert

FIELD DESCRIPTION Range / Format EXAMPLE

Group Name

The address group name.

Note that group name should be an alphanumeric value

(including dash ‘-‘ and underscore ‘_’), can start with a letter

only and, please note, it is case-sensitive! Spaces and other

special characters are not allowed.

text string PC_Group1

BUTTON DESCRIPTION

-> Add the selected address object to the address group.

<- Remove the selected address object from address group.

Table 9-4 Define the addresses group

Step 6. view the address group result

According to our setting as previous steps, the

address group is shown as right diagram.

BASIC SETUP > Books > Address > Group
