DFL-900/1500 User Manual Chapter 20
Remote Access VPN – Windows client
171

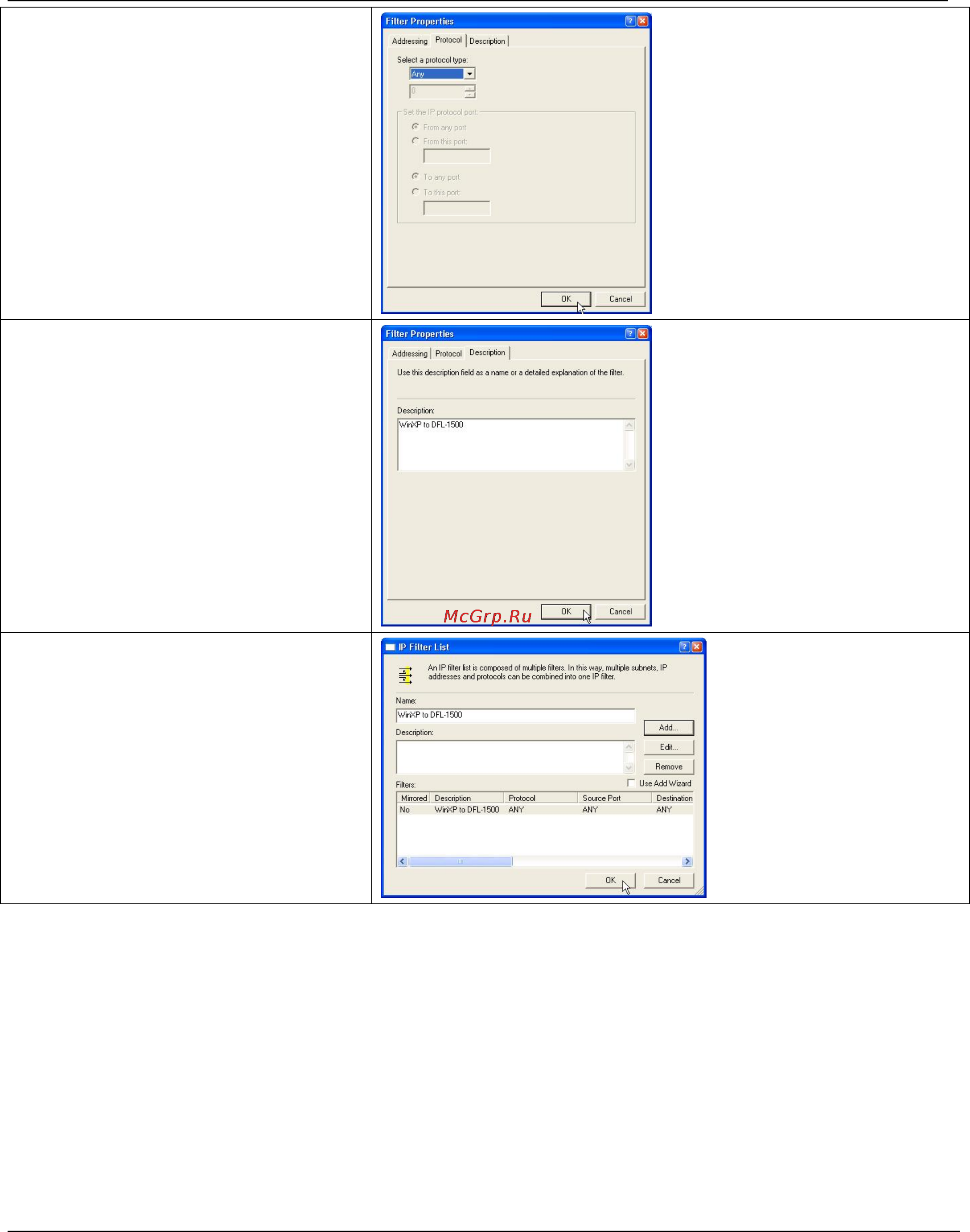

Step 5. Edit the protocol of filter
properties
Click the Protocol tab. Leave the protocol
type to Any.
Step 6. Edit the description of filter
properties
Click the Description tab. You can give a
name for this filter list. The filter name is displayed
in the IPSec monitor when the tunnel is active.
Step 7. Finish the creation of IP filter
list
Click OK and Close these windows.
