DFL-900/1500 User Manual Chapter 4
System Tools
47

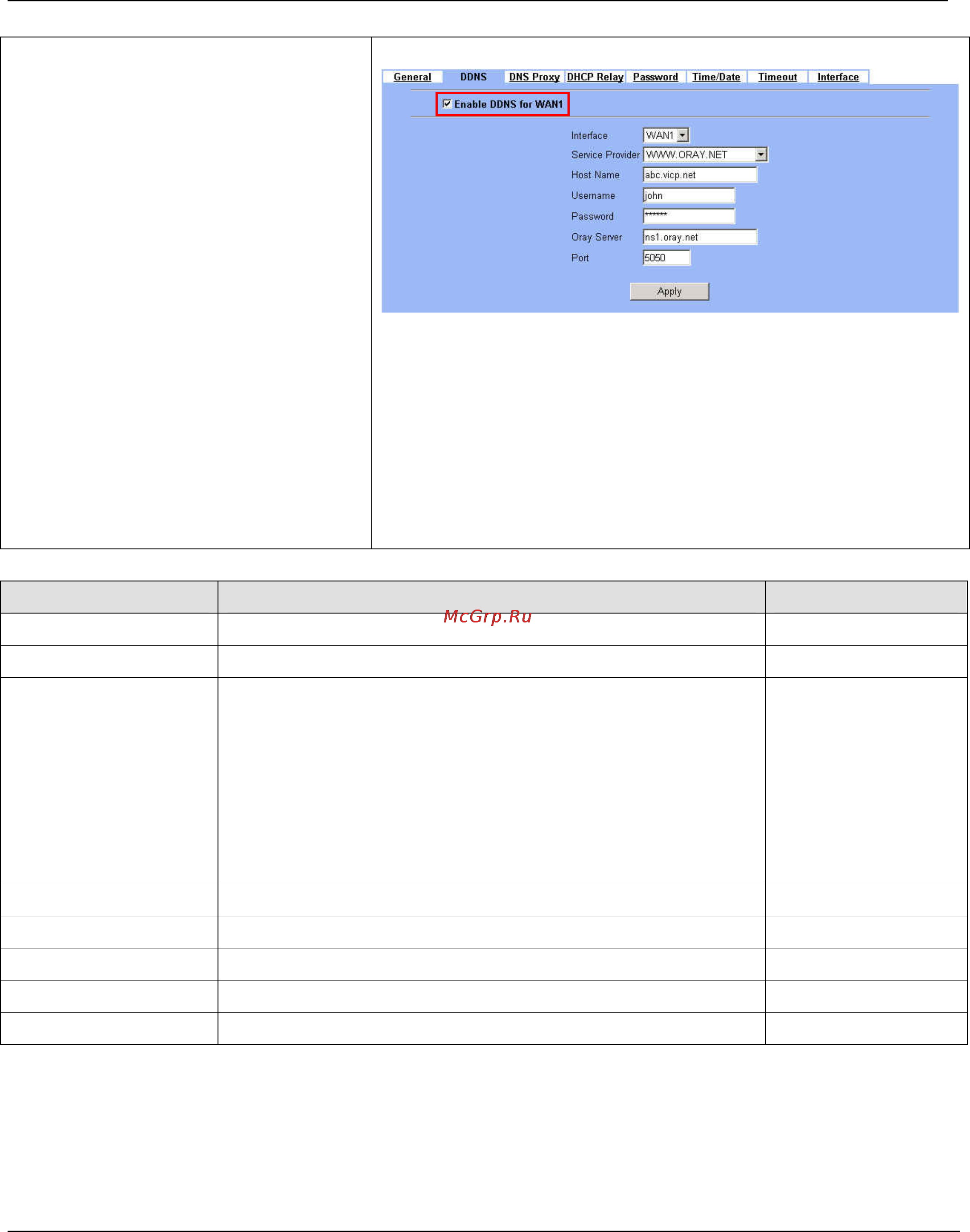

4.4.2 DDNS setting
Step 1. Setup DDNS
If the IP address of DFL-1500 WAN port is
dynamic allocated, you may want to have the
Dynamic DNS mechanism to make your partner
always use the same domain name (like xxx.com)
to connect to you. Select a WAN interface to
update the DDNS record. Here we supply some
DDNS Service Providers. Fill in the Host
Name, Username, Password supplied by the
DDNS web site. Please refer to the DDNS web
site for the detailed information. Click Apply to
activate the settings.
Before setting the DDNS information in this page,
please make sure that you have registered an
account in the indicated Service Provider. Then
you can enter the related information in the DDNS
page.
Note: If you choose “WWW.ORAY.NET” as your
DDNS service provider, a default port number
5050 will be shown on the Port field. It means
that if you use this port to connect to
WWW.ORAY.NET, it will be free charge.
SYSTEM TOOLS > Admin Settings > DDNS
FIELD DESCRIPTION EXAMPLE
Enable DDNS for WAN1 Enable DDNS feature of DFL-1500. Enabled
Interface Assign which public IP address of interface to the DDNS server. WAN1
Service Provider
The domain address of DDNS server. In the DFL-1500, we provide
WWW.DYNDNS.ORG, WWW.DHS.ORG, WWW.ORAY.NET,
WWW.CHANGEIP.COM, WWW.ADSLDNS.NET,
WWW.NO-IP.COM, WWW.DNS2GO.COM, WWW.3322.ORG,
WWW.88IP.NET, and WWW.HN.ORG websites for your choice.
If you choose WWW.ORAY.NET as DDNS service provider, it would
register the source IP address which is connected to the DDNS server. It
means that the WAN1 IP address must be public address.
WWW.ORAY.NET
Hostname The registered Hostname in the DDNS server. abc.vicp.net
Username The registered username in the DDNS server. john
Password The registered password in the DDNS server. 123456
ORAY Server The domain of the ORAY server. ns1.oray.net
Port The default port number to connect to WWW.ORAY.NET for free charge 5050
Table 4-5 System Tools – DDNS setting page
