DFL-900/1500 User Manual Chapter 9
IP/Services grouping
87

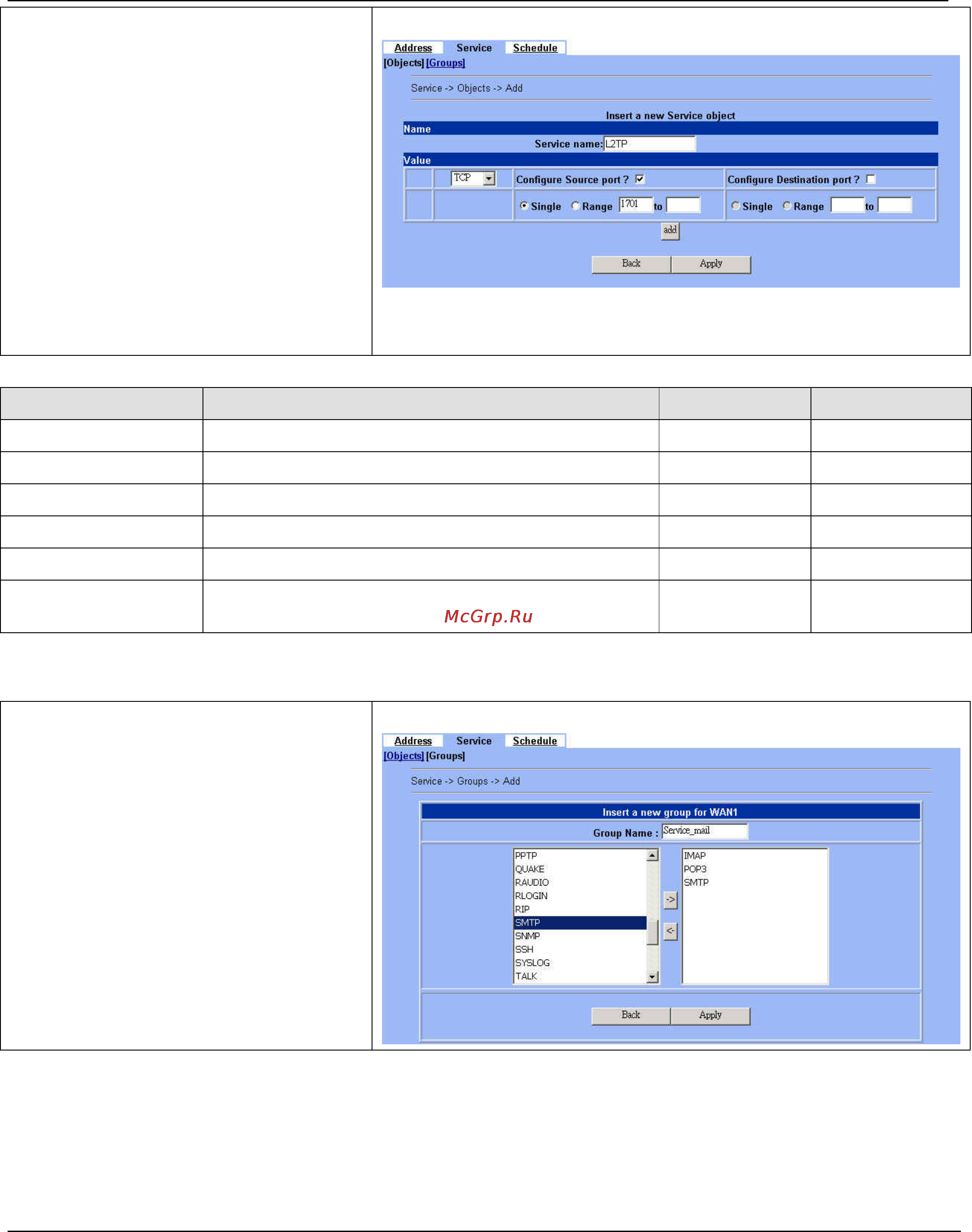

Step 2. Insert a new service object
Enter the Service name. Select which protocol
type (TCP, UDP, ICMP) used by this service.
Specify a Source and Destination Port number
range for the service. If this service uses single
port, enter the number in the first blank. If the
service has more than one port range, select add
to specify additional protocols and port range.
Select Apply to add a new service object.
Note that service name should be an
alphanumeric value (including dash ‘-‘ and
underscore ‘_’), can start with a letter only
and, please note, it is case-sensitive!
Spaces and other special characters are not
allowed.
BASIC SETUP > Books > Service > Insert
FIELD DESCRIPTION Range / Format EXAMPLE
Service name The name of the service object. text string L2TP
Protocol Type The protocol type of the service object. TCP/UDP/ICMP
TCP
Configure Source Port? Configure the source port if yes. Enable/Disable
Enable
Port type The service port type. Single/Range
Single
Port number The service port number. text sting
1701
Configure Destination
port
Configure the destination port if any. Enable/Disable
N/A
Table 9-5 The field of the Service objects
Step 3. Add a service group
You can create groups of services to make it
easier to add rules. A service group can contain
predefined services and custom services in any
combination. You cannot add service groups to
another service group.
Click Groups hyperlink, and then click Insert to
add a new service group. Enter a Group Name to
identify the group. Select the services from the
available services list and click right arrow to copy
them to the Members list. If you would like to
remove the services from the members list, just
select the services and then click left arrow to
remove them.
BASIC SETUP > Books > Service > Groups > Insert
