Part IX
System Maintenance
D-Link 234

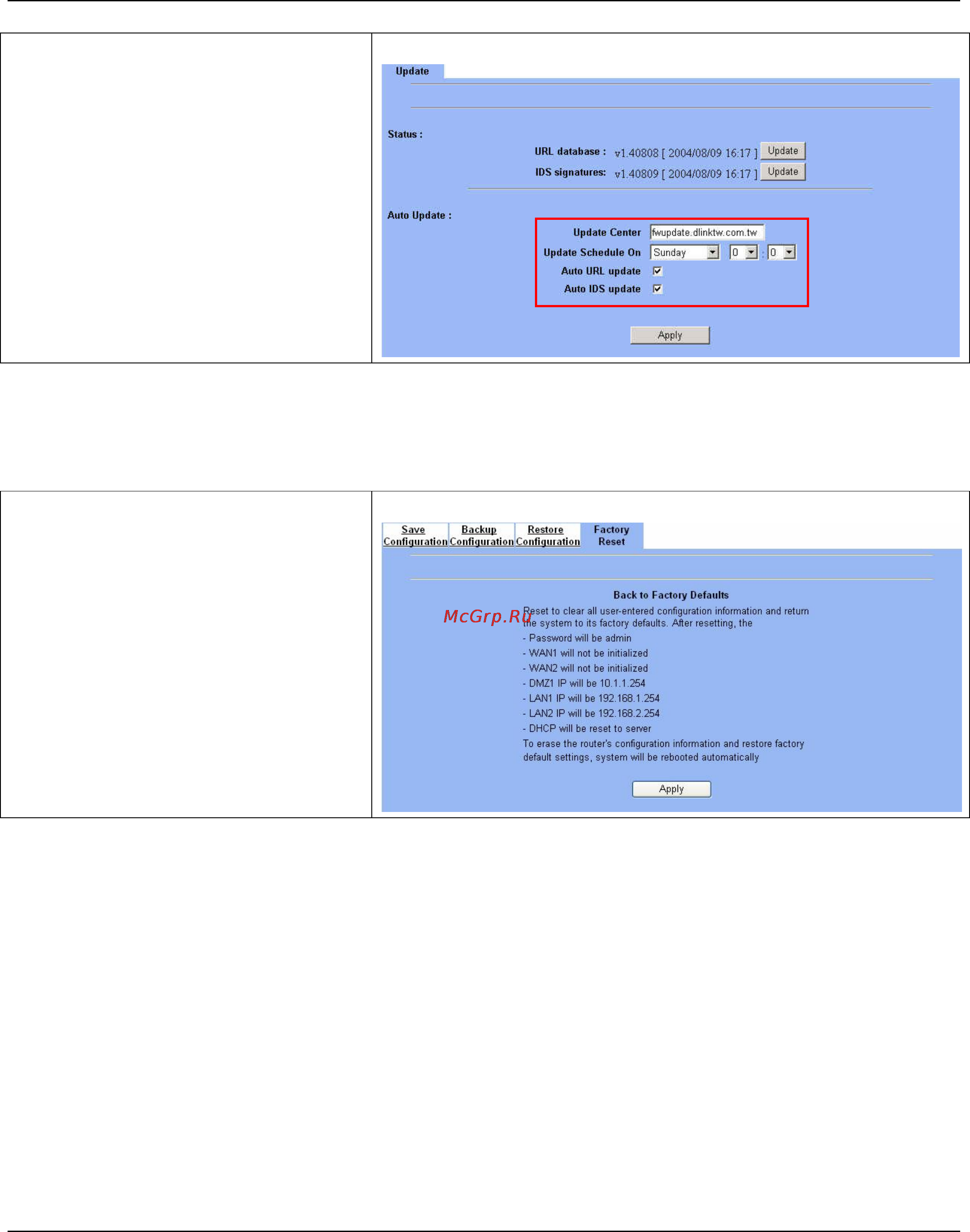

Step 2. Auto Update
We can also update database automatically. Fill
the database server in the Update Center
field. Choose what date/time we would like to
update the database, and then check which
databases we would like to update. Click Apply
button to finish the settings.
SYSTEM TOOLS > Firmware Upgrade > Firmware Upgrade
30.5 Factory Reset
30.5.1 Factory reset under web GUI
Step 1. Factory reset
In the Web GUI mode. Follow the path of right
side. We can make DFL-1500 configuration
restored to the factory defaults with simply
clicking the Apply button.
Warning: Be careful to use this function. It will
clear all current configurations. And the
configuration will be back to the factory default.
SYSTEM TOOLS > System Utilities > Factory Reset
