Part I
Overview
D-Link 6

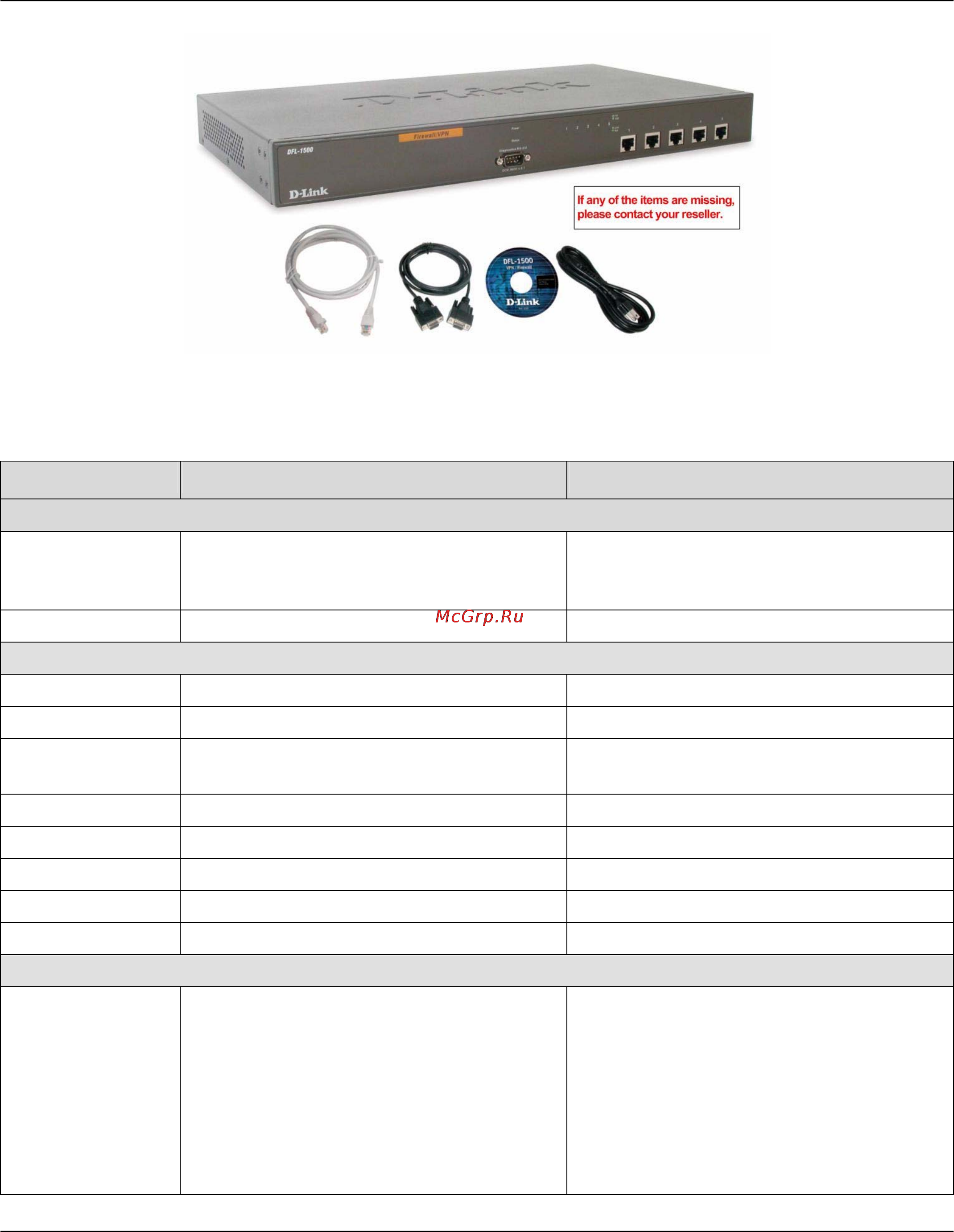

Figure 1-2 All items in the DFL-1500 package
1.2 Hardware
Feature DFL-900 DFL-1500
Chassis
Dimensions z Rack mount 1U size
z 146 mm (H) x 275 mm (D) x 203 mm
(W)(8''*5.75''*10'')
z Rack mount 1U size
z 146 mm (H) x 275 mm (D) x 203 mm
(W)(8''*5.75''*10'')
Look & feel D-Link style D-Link style
Key Components
CPU Intel Celeron 850 MHZ Intel Celeron 1.2G
Memory 256MB 168-P SDRAM 256MB 168-P SDRAM
10/100M Ethernet
MAC and PHY
RTL 8139C+ Intel I82559
PCI bridge Intel 815E Intel FW82801BA
FLASH memory 32MB (San Disk) 32MB (San Disk)
Memory control HUB -- FW82815EP
Hardware monitor -- Super I/O hardware monitor IT8712F-A
Security processor -- Safenet 1141 (VPN accelerator board)
Port functions
WAN port z 1 port for connecting to outbound WAN
z RJ-45 connector
z IEEE 802.3 compliance
z IEEE 802.3u compliance
z Support Half/Full-Duplex operations
z Support backpressure at Half-Duplex operation.
z IEEE 802.3x Flow Control support for
Full-Duplex mode
z 2 ports for connecting to outbound WAN
z RJ-45 connector
z IEEE 802.3 compliance
z IEEE 802.3u compliance
z Support Half/Full-Duplex operations
z Support backpressure at Half-Duplex operation.
z IEEE 802.3x Flow Control support for
Full-Duplex mode
