Part V
Virtual Private Network
D-Link 170

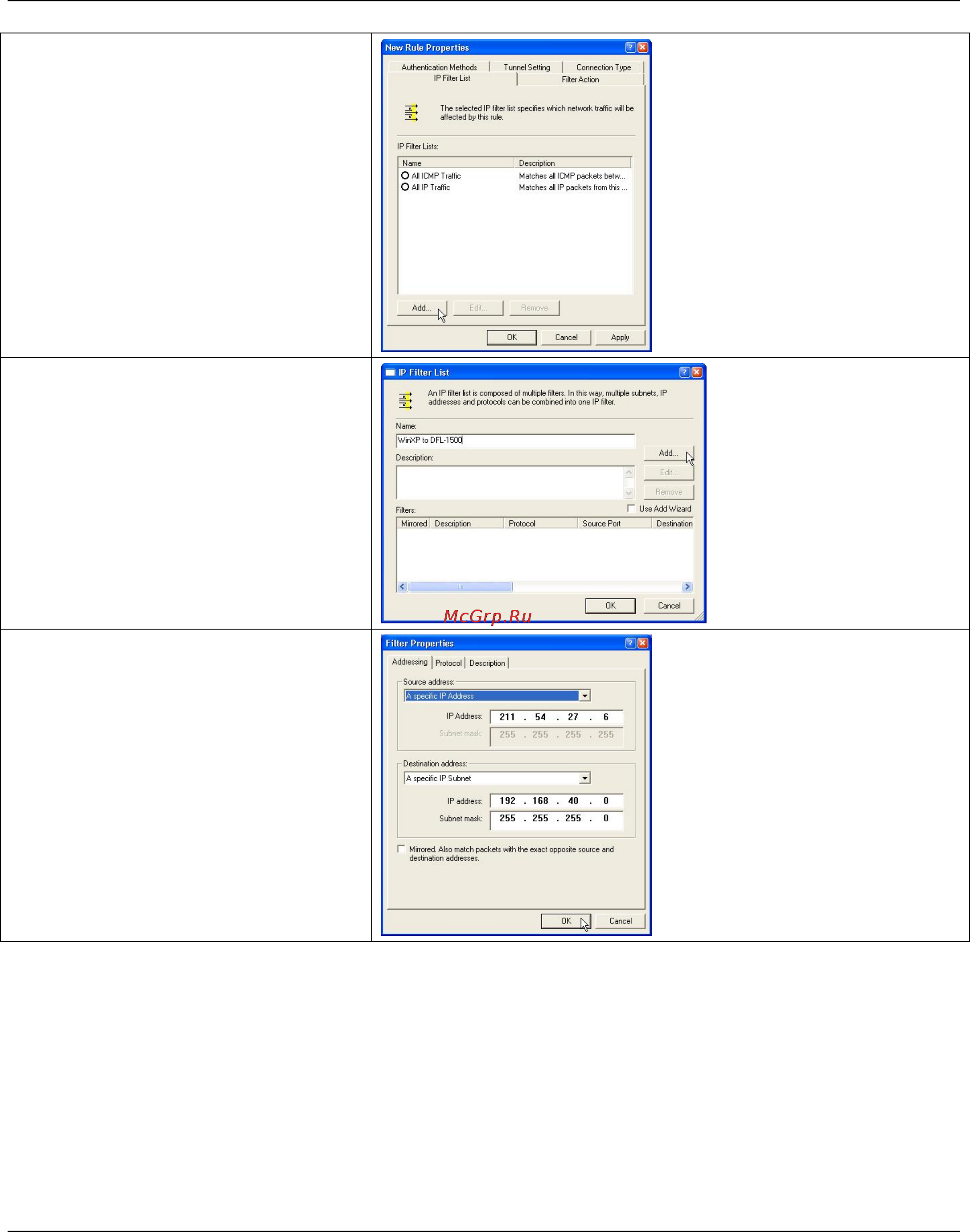

Step 2. Add an IP Filter List
On the IP Filter List tab, click Add to add an
IP Filter List.
Step 3. Edit IP filter list
Type a name for the filter list (e.g., WinXP to
DFL-1500), uncheck Use Add Wizard check
box, and click Add.
Step 4. Edit the address of filter
properties
In the Source address, choose A specific IP
Address, and enter the IP address of WinXP
(ex. 211.54.27.6). In the Destination
address, choose A specific IP Subnet, and
enter the IP address and Subnet mask of the
local subnet (ex. 192.168.40.0/255.255.255.0).
Uncheck Mirror check box. Click OK to next.
