DFL-900/1500 User Manual Chapter 20
Remote Access VPN – Windows client
163

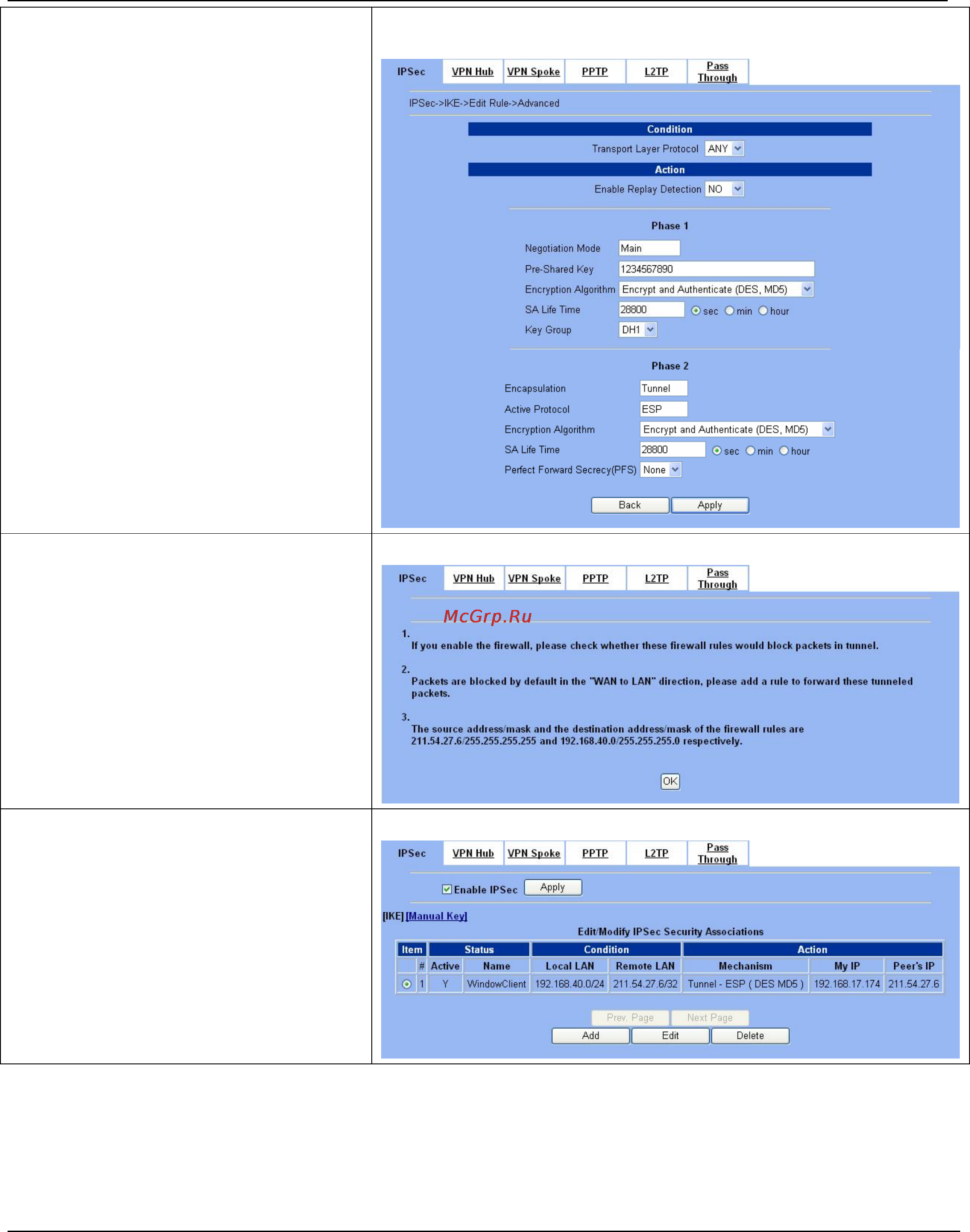

Step 2. Edit the detailed settings of
IPSec rule
Fill the detailed settings as the diagram of right
side. And then click Apply to finish the IPSec rule
edition. For the field description, please refer
Table 13-5 for more information.
ADVANCED SETTINGS > VPN Settings > IPSec > IKE > Add >
Advanced
Step 3. Warning message
Here appears a warning message to remind you
to add a firewall rule which can allow IPSec traffic
into the DFL-1500, because the WAN-to-LAN
traffic of the DFL-1500 by default is blocked. For
the detailed procedure to add a firewall rule,
please refer Section
13.4.
ADVANCED SETTINGS > VPN Settings > IPSec > IKE > Add > Apply
Step 4. Finish adding an IPSec rule
Finally we have added an IPSec rule shown as
the right diagram.
ADVANCED SETTINGS > VPN Settings > IPSec > IKE
