DFL-900/1500 User Manual Chapter 27
High Availability
221

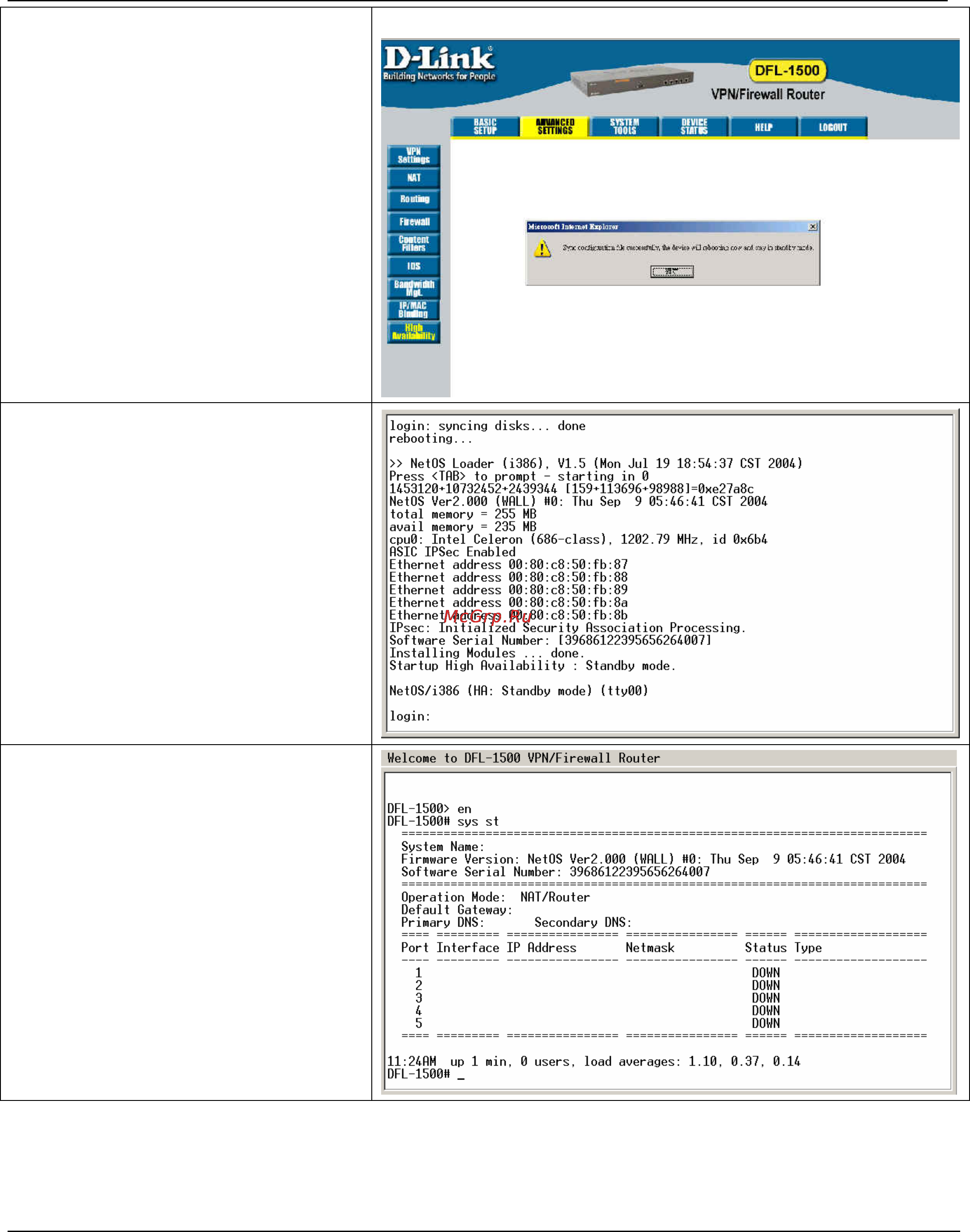

Step 2. Show the result in Web
After you apply the High Availability feature, the
Primary device will show the message to tell you
that “Sync configuration file
successfully, the device will
rebooting now and stay in standby mode.”
ADVANCED SETTINGS > High Availability > Status
Step 3. Show the message in Console
When Primary device crashed, the messages like
the right diagram will appear to tell you that this
device will be in Standby mode after rebooting.
Step 4. Check the Device status
You can see the status of the device in Standby
mode here.
