Enable Replay

Detection

Whether is the “Replay Detection” enabled？

NO / YES NO

Table 13-7 Setup Advanced feature in the IPSec Manual Key rule

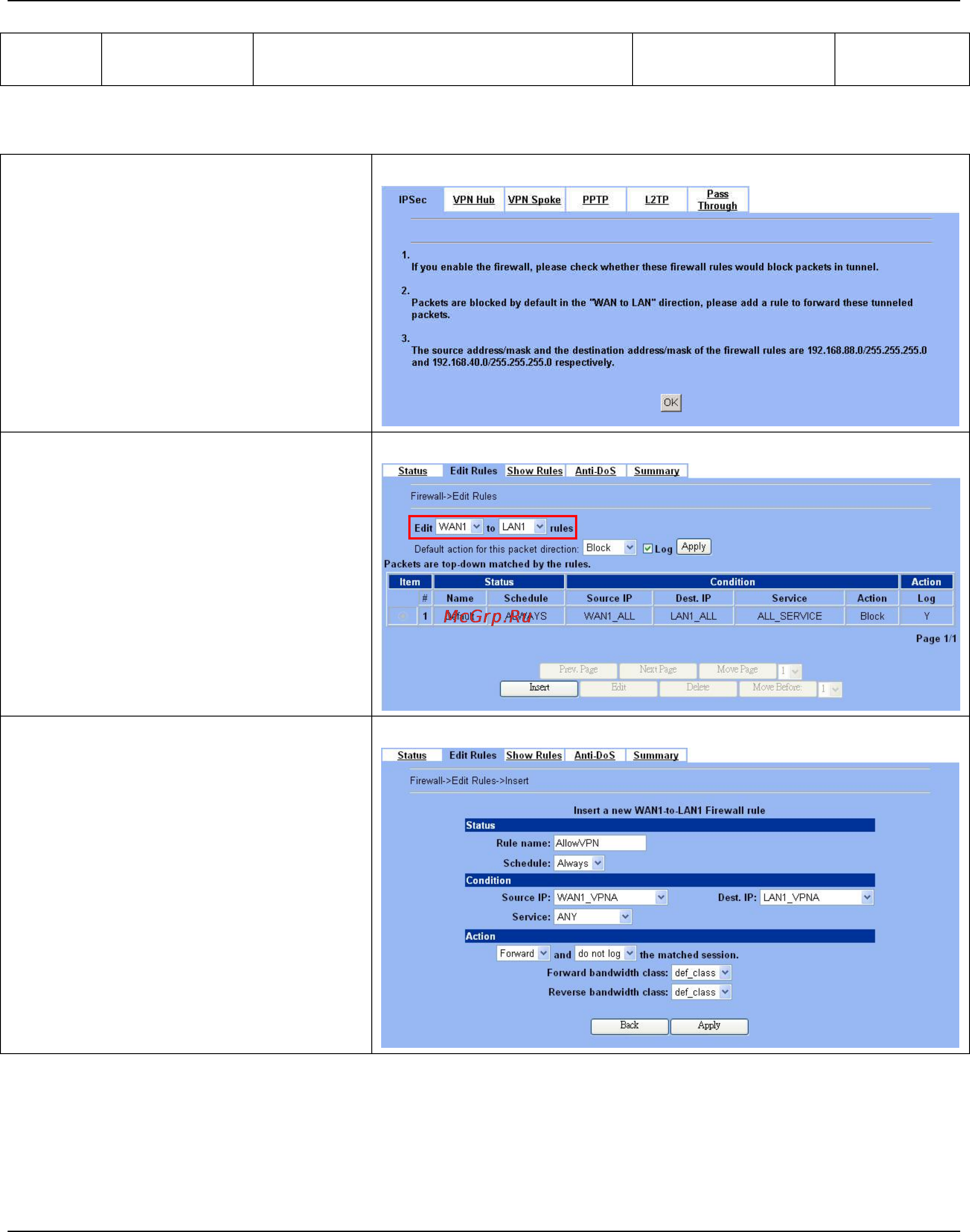

Step 5. Remind to add a Firewall rule

After finishing IPSec rule settings, we need to add

a firewall rule. Here system shows a window

message to remind you of adding a firewall rule.

Just press the OK button to add a firewall rule.

ADVANCED SETTINGS > VPN Settings > IPSec > Manual Key > Add

Step 6. Add a Firewall rule

Same as that in IKE method. Please make sure

that the Firewall is enabled. Select WAN1-to-LAN1

to display the rules of this direction. The default

action of this direction is Block with Logs. We

have to allow the VPN traffic from the WAN1 side

to enter our LAN1 side. So we click the Insert

button to add a Firewall rule before the default

rule.

ADVANCED SETTINGS > Firewall > Edit Rules

Step 7. Customize the Firewall rule

Enter the Rule Name as AllowVPN, Source IP

as WAN1_VPNA (192.168.88.0), and Dest.

IP as LAN1_VPNA (192.168.40.0). Click

Apply to store this rule.

ADVANCED SETTINGS > Firewall > Edit Rules > Insert
