Part I
Overview
D-Link 16

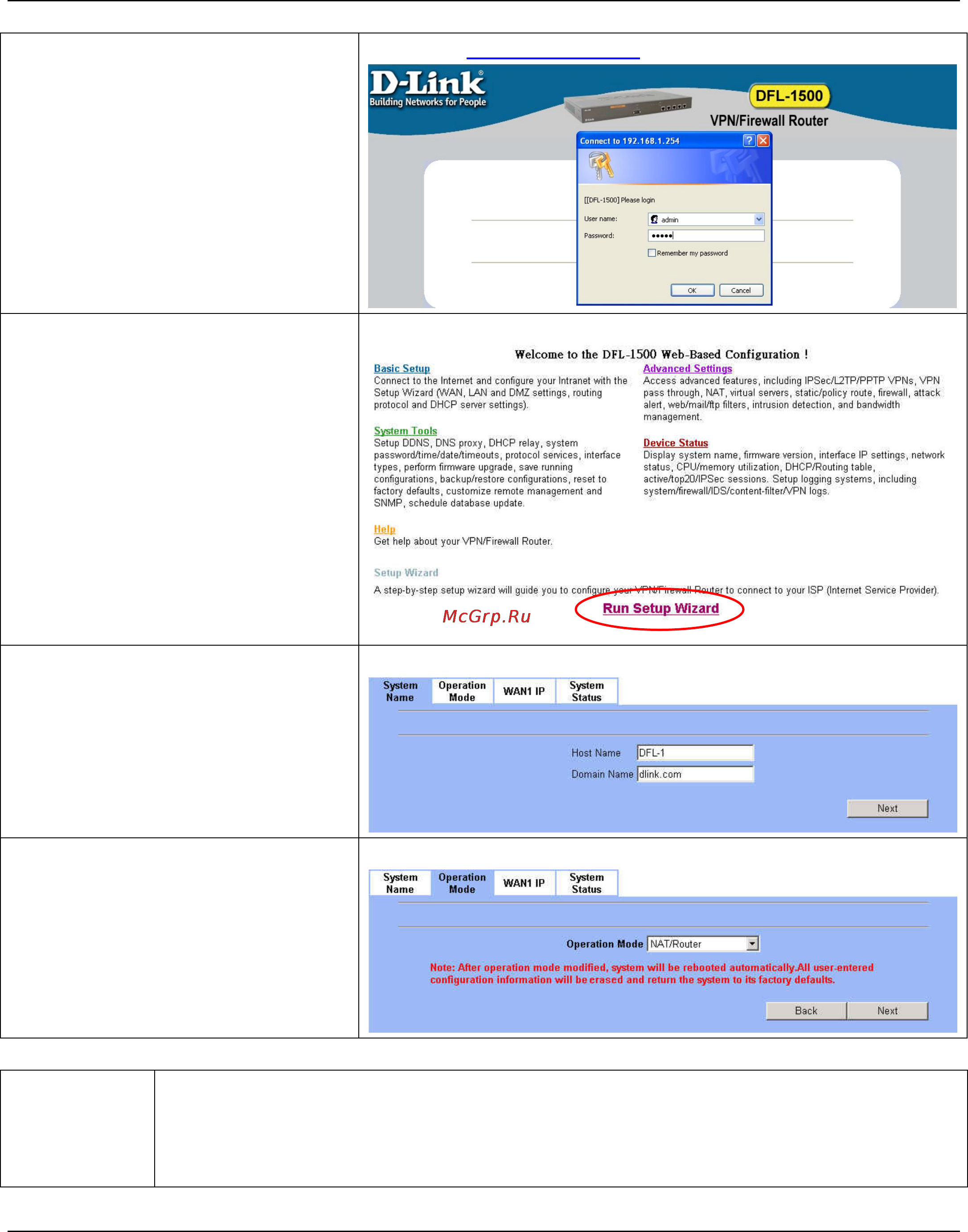

Step 1. Login
Type “admin” in the account field, “admin” in
the Password field and click Login.
Note: Please do not access web UI through
proxy, or the login may be locked by others or
the original user.
Connect to
https://192.168.1.254
Step 2. Run Setup Wizard
Click the Run Setup Wizard.
BASIC SETUP > Wizard
Step 3. System Name
Enter the Host Name and the Domain Name,
followed by clicking the Next.
BASIC SETUP > Wizard
Step 4. Operation Mode
DFL-1500 VPN/Firewall Router can operate in
NAT/Router mode or Transparent mode.
Choose which operation Mode for this device to
use.
BASIC SETUP > Wizard > Next
NAT/Route mode
In NAT/Route mode, you can create NAT mode rules and Route mode rules. For the related information, please refer to
Chapter 7 and Chapter 8.
y NAT mode rules use network address translation to hide the addresses in a more secure network from users in a less
secure network.
y Route mode rules accept or deny connections between networks without performing address translation.
