20.4.5 Add a filter rule from DFL-1500 to WinXP

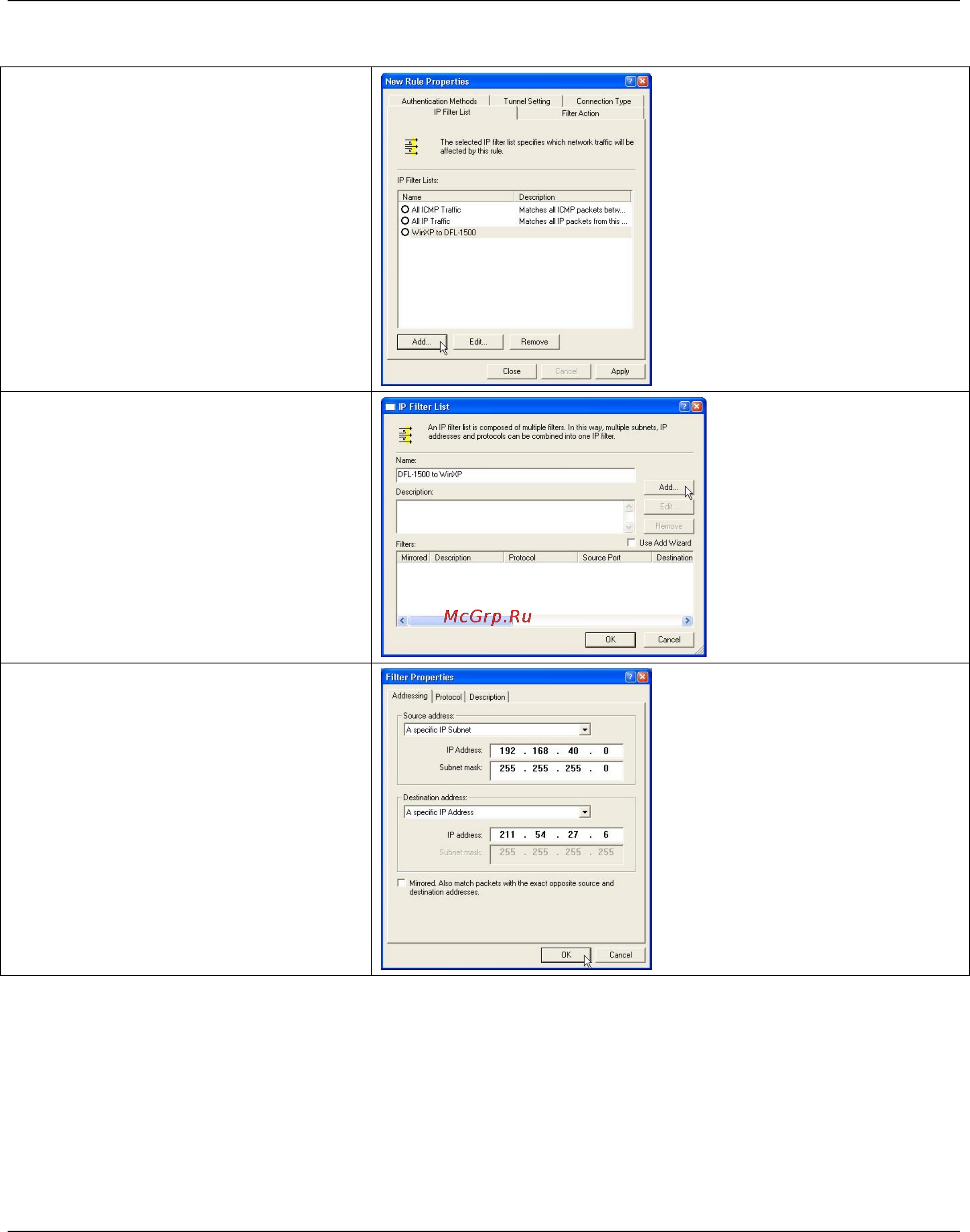

Step 1. Add a new filter rule
Click the IP Filter List tab, and then click
Add to add an IP Filter List.
Step 2. Edit IP filter list
Type a name for the filter list (e.g., DFL-1500 to
WinXP), uncheck Use Add Wizard check box,
and click Add.
Step 3. Edit the address of filter
properties
In the Source address, choose A specific IP
Subnet, and enter the IP address and Subnet
mask of the local subnet (ex.
192.168.40.0/255.255.255.0). In the
Destination address, choose A specific
IP Address, and enter the IP address of
WinXP (ex. 211.54.27.6). Uncheck Mirror
check box. Click OK to next.
