Part I
Overview
D-Link 18

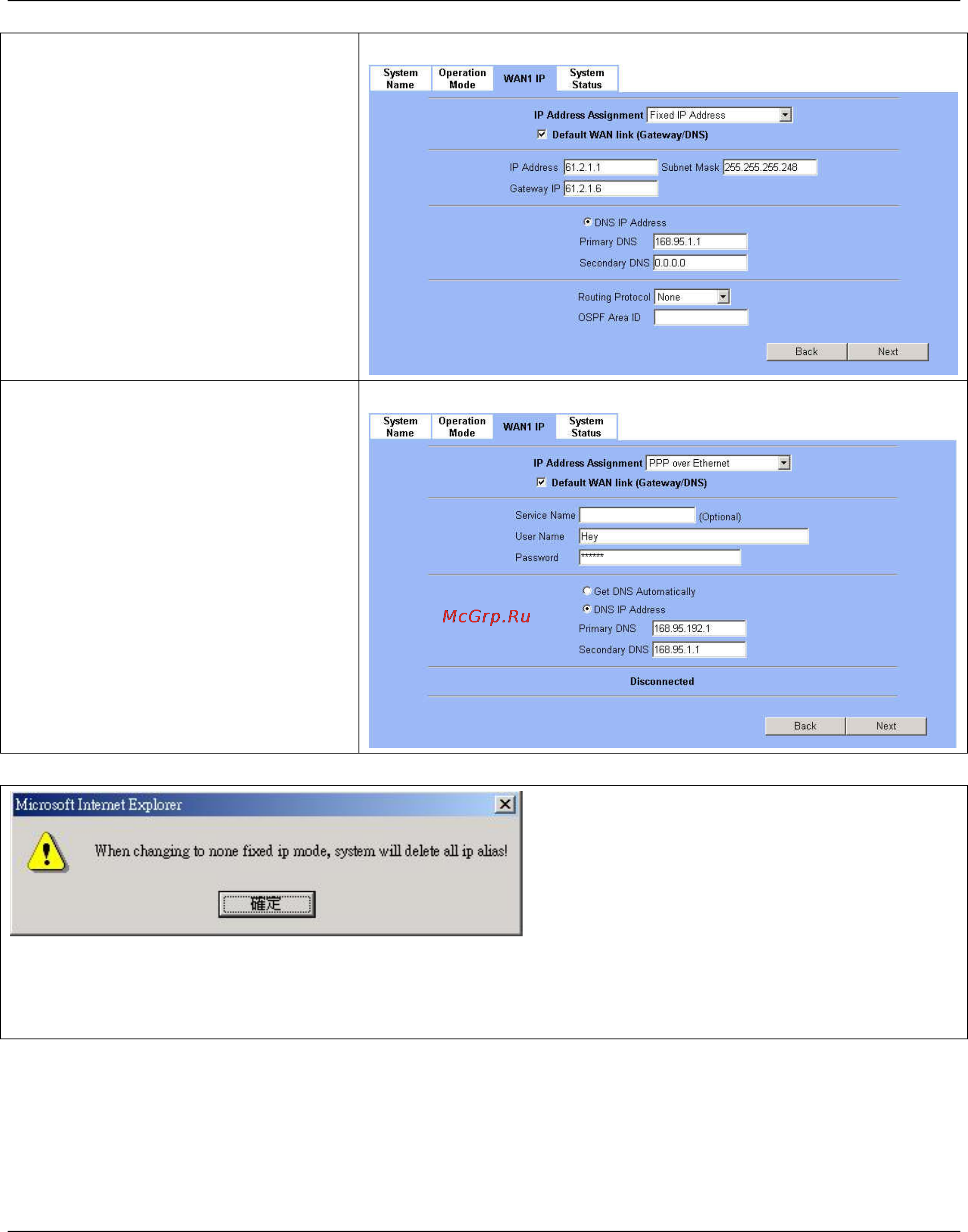

Step 5.b — Fixed IP
If Fixed IP Address is selected, enter the
ISP-given IP Address, Subnet Mask,
Gateway IP, Primary DNS and Secondary
DNS IP. Click Next to proceed.
BASIC SETUP > Wizard > Next > Fixed IP
Step 5.c — PPPoE client
If PPP over Ethernet is selected, enter the
ISP-given User Name, Password and the
optional Service Name. Click Next to
proceed.
BASIC SETUP > Wizard > Next > PPPoE
9 Warning Message
Please Note that an alert message box “When changing to none fixed ip mode, system will delete all ip alias!”
will appear while you change Get IP Automatically (DHCP) or PPP over Ethernet but not Fixed IP Address as your WAN link.
