Part II
Basic Configuration
D-Link 54
5.4.4 HTTPS
Step 1. Setup HTTPS
Check the WAN1/LAN1/LAN2 checkbox, and
enter the new Server Port 443 that will be
accessed by the user’s browser
(https://192.168.40.254). Here we click All for all
no IP range limitation of clients. And click the
Apply button.

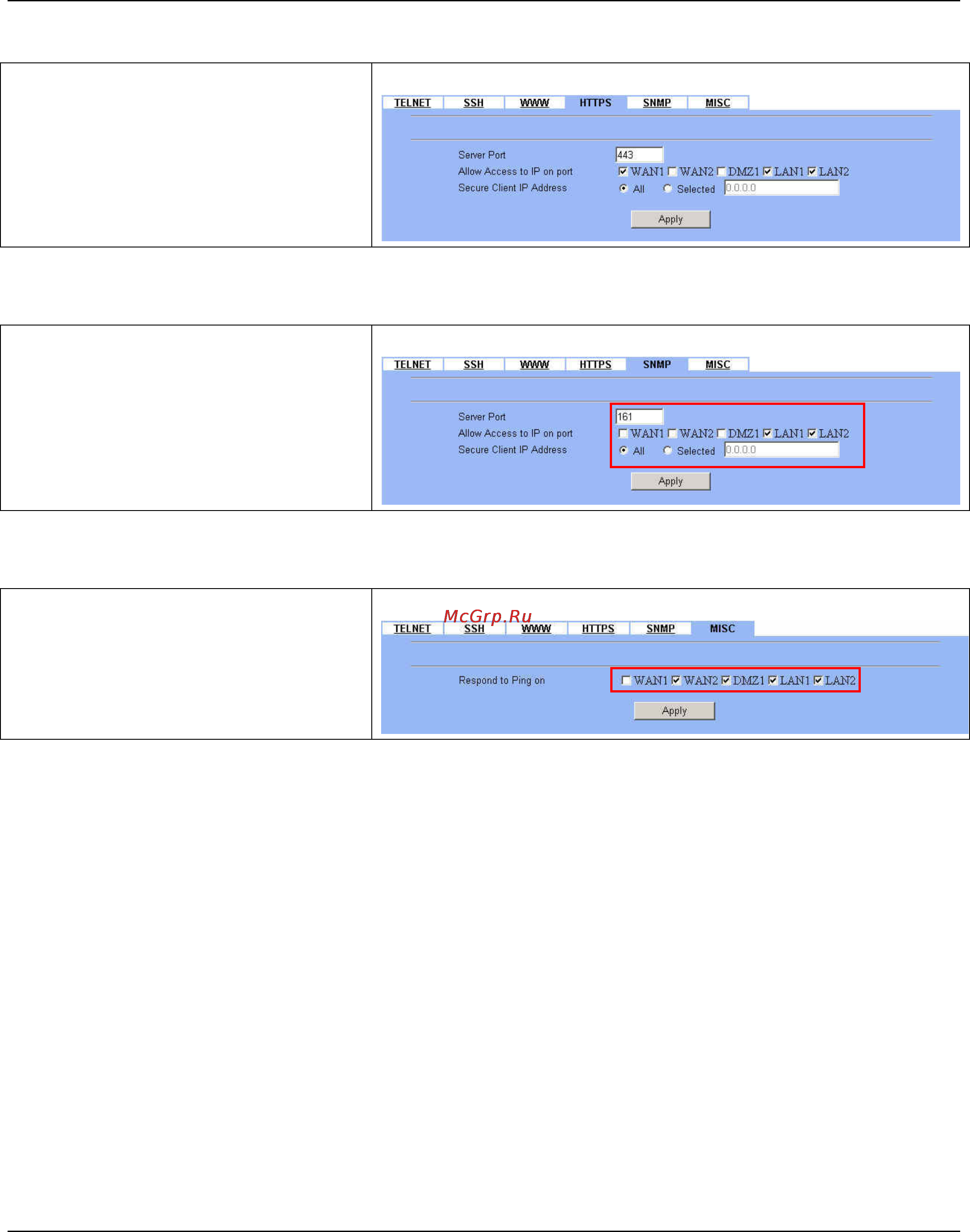

SYSTEM TOOLS > Remote Mgt. > HTTPS
5.4.5 SNMP
Step 1. Setup SNMP
Check the LAN1/LAN2 checkbox. In the Secure
Client Address field. If you prefer indicated
specified IP address. Just click the Selected,
and enter the valid IP address for reading the
SNMP MIBs at the DFL-1500. Finally click the
Apply button.
SYSTEM TOOLS > Remote Mgt. > SNMP
5.4.6 ICMP
Step 1. Setup ICMP
Uncheck the WAN1 checkbox and make others
checked. Then click the Apply button.
SYSTEM TOOLS > Remote Mgt. > MISC
