DFL-900/1500 User Manual Chapter 8
Routing
73
Chapter 8
Routing
This chapter introduces how to add static routing and policy routing entries
To facilitate the explanation on how DFL-1500 implements routing and how to use it. We zoom in the left part of
Figure
2-1 into
Figure 8-1 and increase some devices for description.
8.1 Demands
1. There is only one local area (192.168.40.0/24) inside the LAN1 port. Now there is a new financial area (192.168.50.0/24)
in the
Figure 8-1. The financial area is connected with a router which is inside the LAN1 port of DFL-1500. So we need to
add the configurations for the financial department.
2. Refer to the
Figure 8-1 description. The bandwidth subscribed from ISP1 is insufficient so that some important traffic, say
the traffic from PCs belonging to the General-Manager-Room department (192.168.40.192/255.255.255.192), is blocked
by the other traffic. We hope that the employees of General-Manager-Room can have a dedicated bandwidth to improve
the quality of connecting internet.

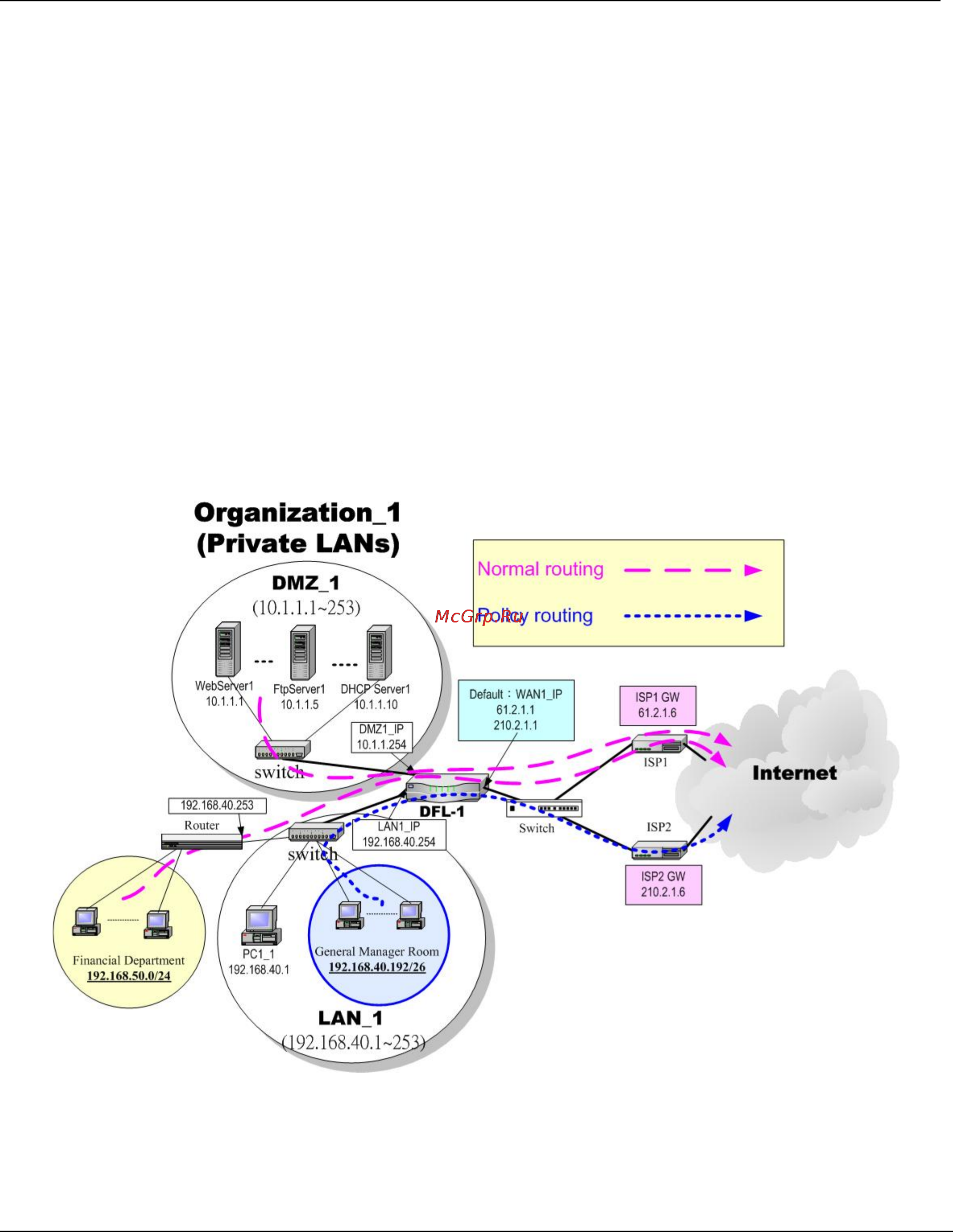

Figure 8-1 Add policy routing entry for the General-Manager-Room department
