Part IV
Firewall & IP/MAC Binding
D-Link 86
9.4.2 Setup Service
Step 1. Service Settings

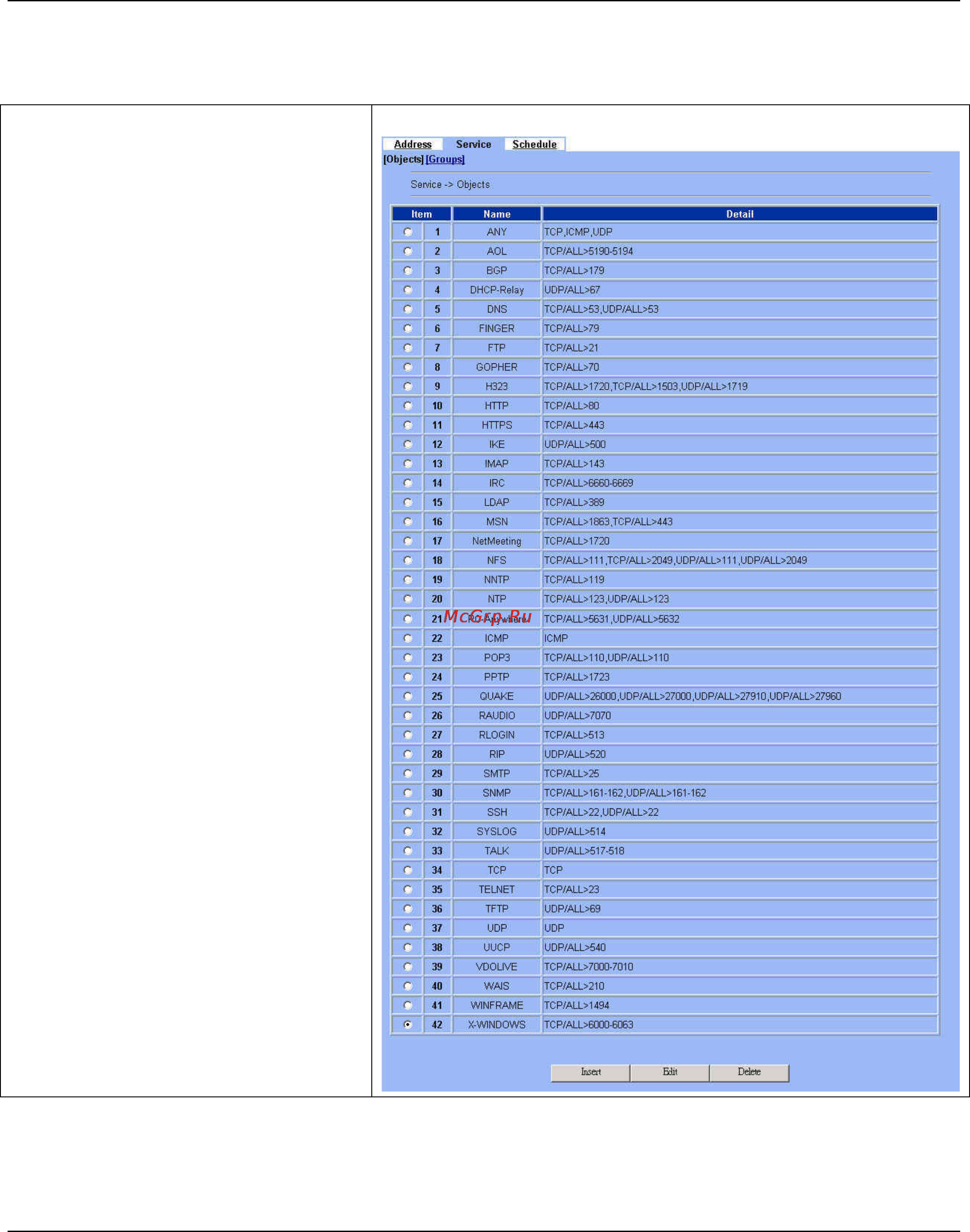

The DFL-1500 predefined firewall services are
listed as right diagram. You can add these
services to any firewall rule or you can add a
service if you need to create a firewall rule for a
service that is not in the predefined service list.
Select Insert to add a new service.
BASIC SETUP > Books > Service > Objects
